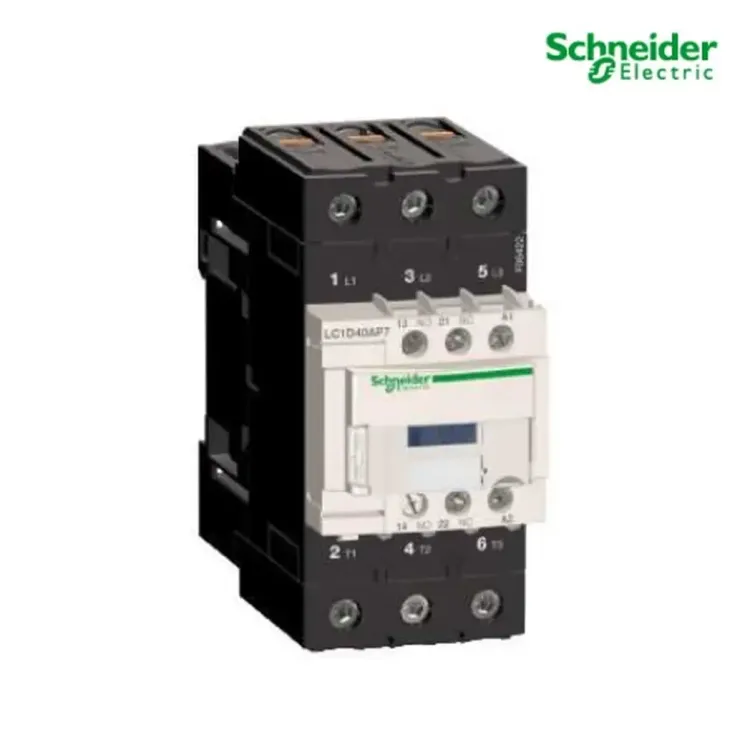

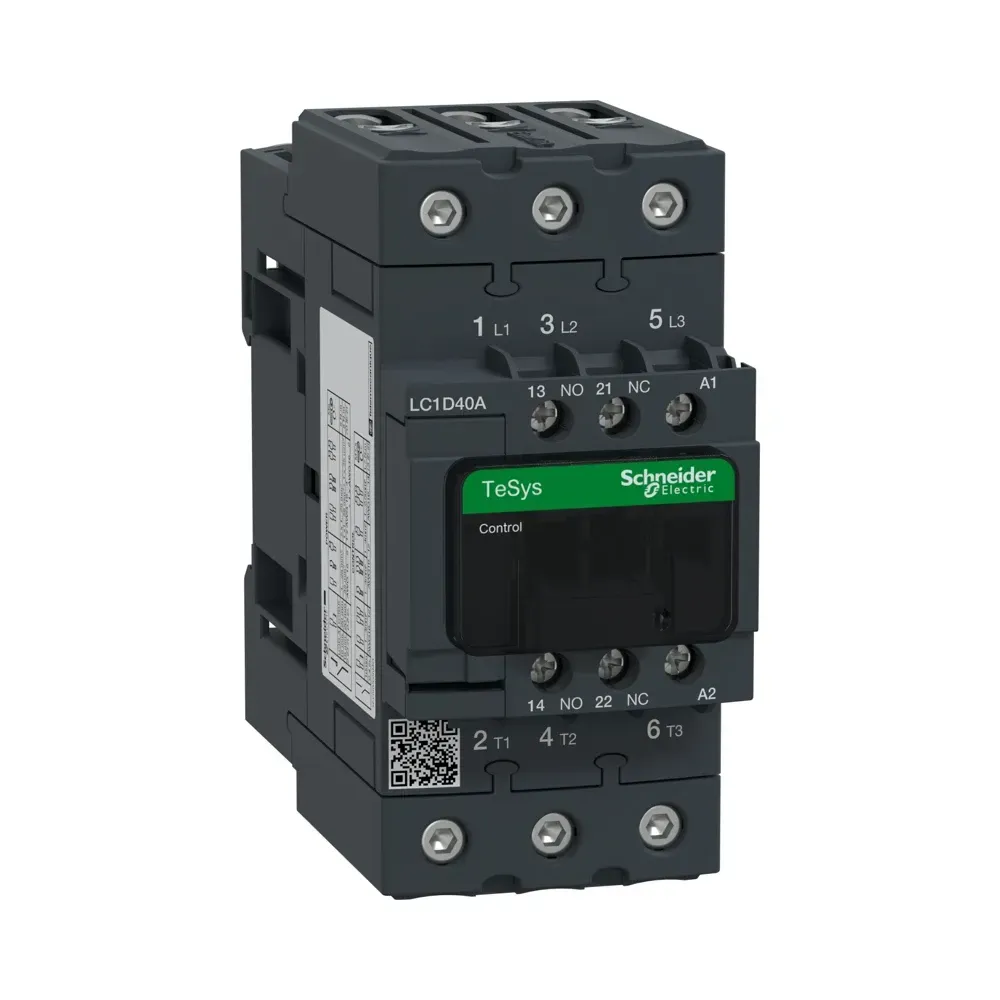

Schneider TeSys D 40A 230V AC 3P Contactor LC1D40AP7 front view

Photo is representative

Schneider TeSys D 40A 230V AC 3P Contactor - LC1D40AP7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D40AP7
GTIN —
Stock status: 9 in stock

priced individually

Net price: £127.35

Gross price

£152.82

Schneider TeSys D 40A 230V Coil AC 3P contactor (LC1D40AP7), suitable for AC-3 and AC-3e motor control applications and resistive load switching up to 40A at 400V. Supports direct-on-line (DOL) starting, star-delta, and reversing duties for motors up to 18.5kW at 400V AC. Features a 230V AC 50/60Hz control coil and screw clamp terminals for secure wiring. DIN rail or panel mounting. IEC 60947-4-1 and EN 60947-4-1 compliant with integrated 1NO+1NC auxiliary contacts. TeSys D series accessory compatibility.

Specifications

Current Rating

40A AC-3, 60A AC-1, 40A AC-3e

Control Coil

230V AC 50/60Hz

Contact Configuration

3P main (3NO) + 1NO+1NC auxiliaries

Frame Size

D-frame

Terminal Type

Screw clamp terminals

Mounting Method

35mm DIN rail or panel (plate) mount

Motor Rating

Up to 18.5kW at 400V AC (AC-3); Up to 22kW at 440V/500V AC

Mechanical Life

6 million operations

Auxiliary Capability

Accepts 2 or 4 auxiliary blocks (side/front mounting)

Standards Compliance

IEC 60947-4-1, EN 60947-4-1, IEC 60947-5-1, CE, UL, CSA, EAC, Marine
