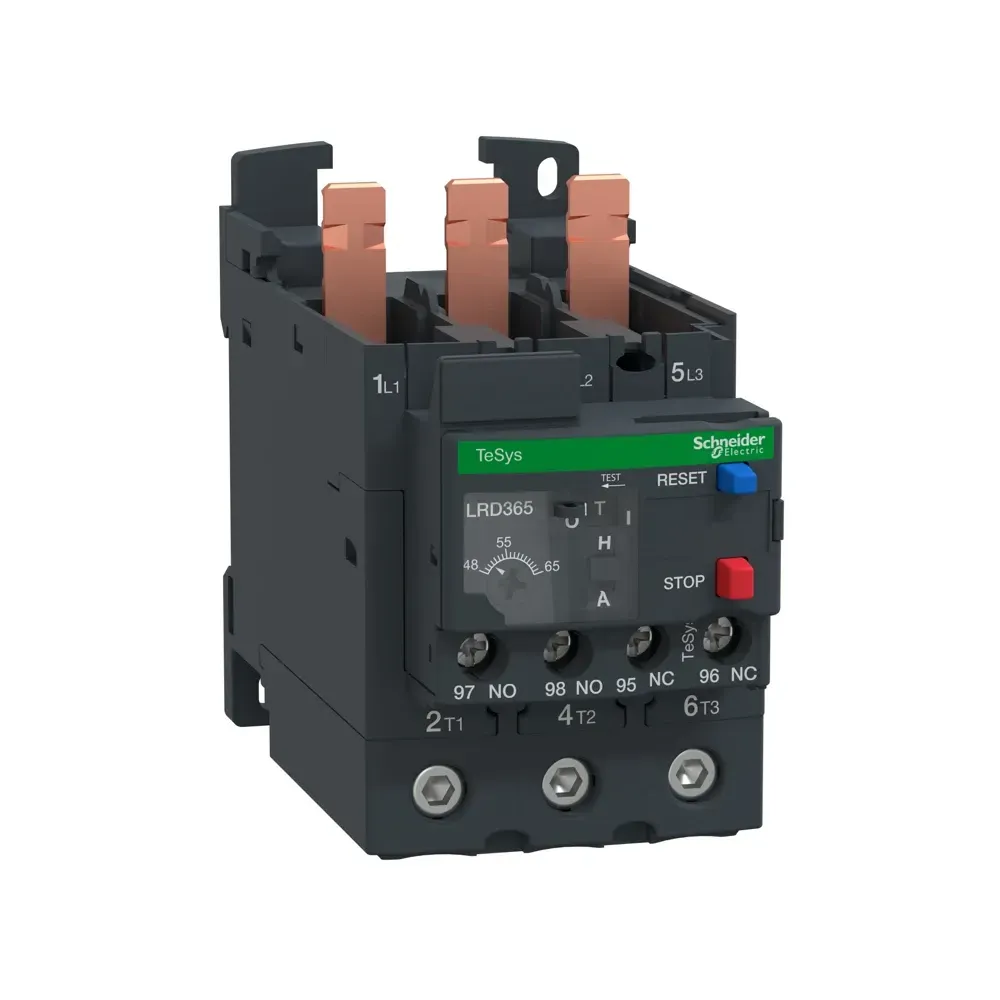

Schneider Electric LRD365 Thermal Overload Relay 48-65A Class 10A
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
priced individually
Net price: £124.61
Gross price
£149.53
Schneider Electric LRD365 (LRD365) TeSys Deca thermal overload relay providing adjustable thermal protection for motors. Adjustable current range 48–65 A with Class 10A trip characteristics; rated for 690 V AC power circuits. Provides 1NO+1NC auxiliary contacts and manual reset via blue push-button (red stop). Phase-failure sensitivity and ambient compensation (-20…60 °C) included. Direct mountable under TeSys contactors and compatible with LC1D65A and LC1D50A. EverLink BTR screw power terminals and screw-clamp control connections simplify installation.
