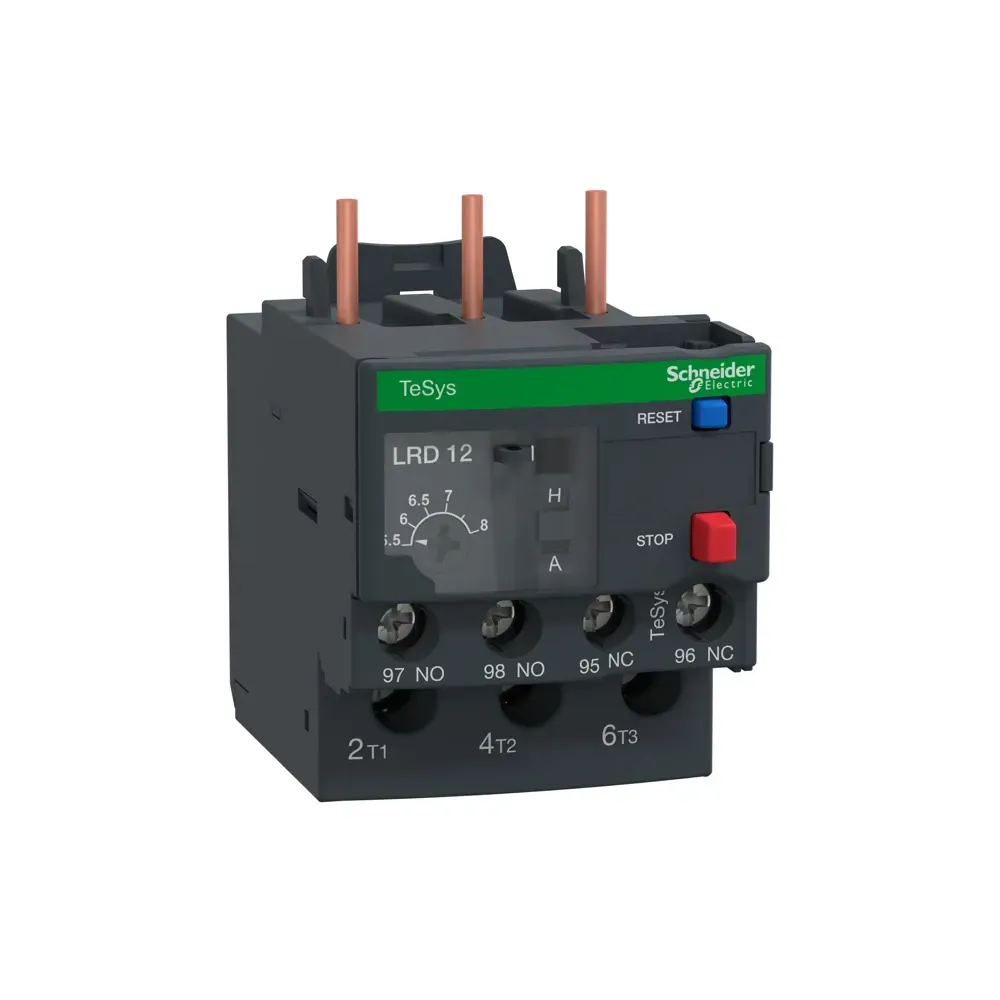

Schneider Electric 5.5-8A thermal overload relay Class 10A

Photo is representative

Schneider Electric LRD12 Thermal Overload Relay 5.5-8A Class 10A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LRD12
GTIN 3389110346800
Stock status: In stock

priced individually

More arriving soon

Net price: £44.83

Gross price

£53.80

Schneider Electric LRD12 thermal overload relay (LRD12) for motor protection in TeSys Deca applications. Adjustable thermal protection 5.5–8 A with Class 10A trip characteristics and 690 V AC rated operation. Configuration includes 1NO+1NC auxiliary contact, manual reset (blue push-button) and stop (red push-button). Designed for direct mounting under TeSys D contactors (compatible with LC1D09, LC1D12, LC1D18, LC1D25, LC1D32, LC1D38) or plate/DIN rail with accessories. IP20, ambient −20…60 °C without derating.

Specifications

Current Range

5.5-8 A adjustable

Trip Class

Class 10A thermal protection

Operating Voltage

690 V AC maximum

Auxiliary Contacts

1NO+1NC

Reset Type

Manual reset (blue push-button); stop (red push-button)

Mounting

Direct mount under TeSys D contactors; plate or DIN rail with accessories
