SYL-Flex 5 Core 6mm2 300 500V Galvanised Steel Braid Screened Clear PVC Sheath

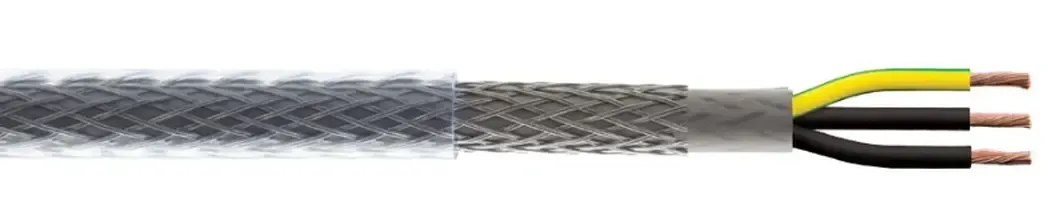

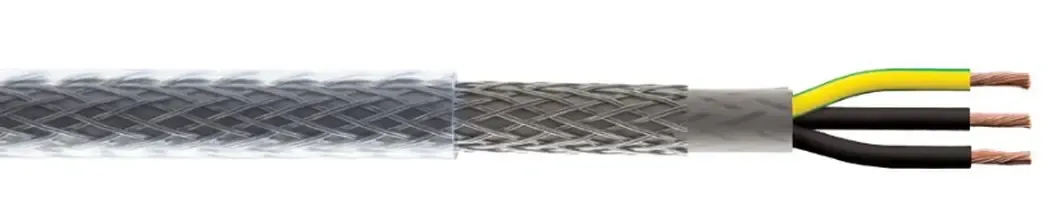

Photo is representative

SYL-Flex 5 Core 6mm2 300 500V Galvanised Steel Braid Screened Clear PVC Sheath

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 56SYL
GTIN —
Stock status: In stock

priced per metre

Net price: £6.67

Gross price

£8.00

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

5 core 6mm² SYL-Flex. Galvanised steel wire braid over PVC bedding, finished with a transparent PVC outer sheath. Suitable for fixed-to-mobile interconnects — conveyors, assembly lines, machine tools and production equipment.

Steel braid gives mechanical protection where cable takes regular movement or stress. Clear sheath lets you check braid condition without stripping. Rated for indoor and outdoor use when shielded from direct sunlight.

  • 44A current capacity (30°C, in air)
  • Static operating range: -20°C to +80°C / Flexing: -5°C to +70°C
  • 16.7mm OD — suits 20mm gland

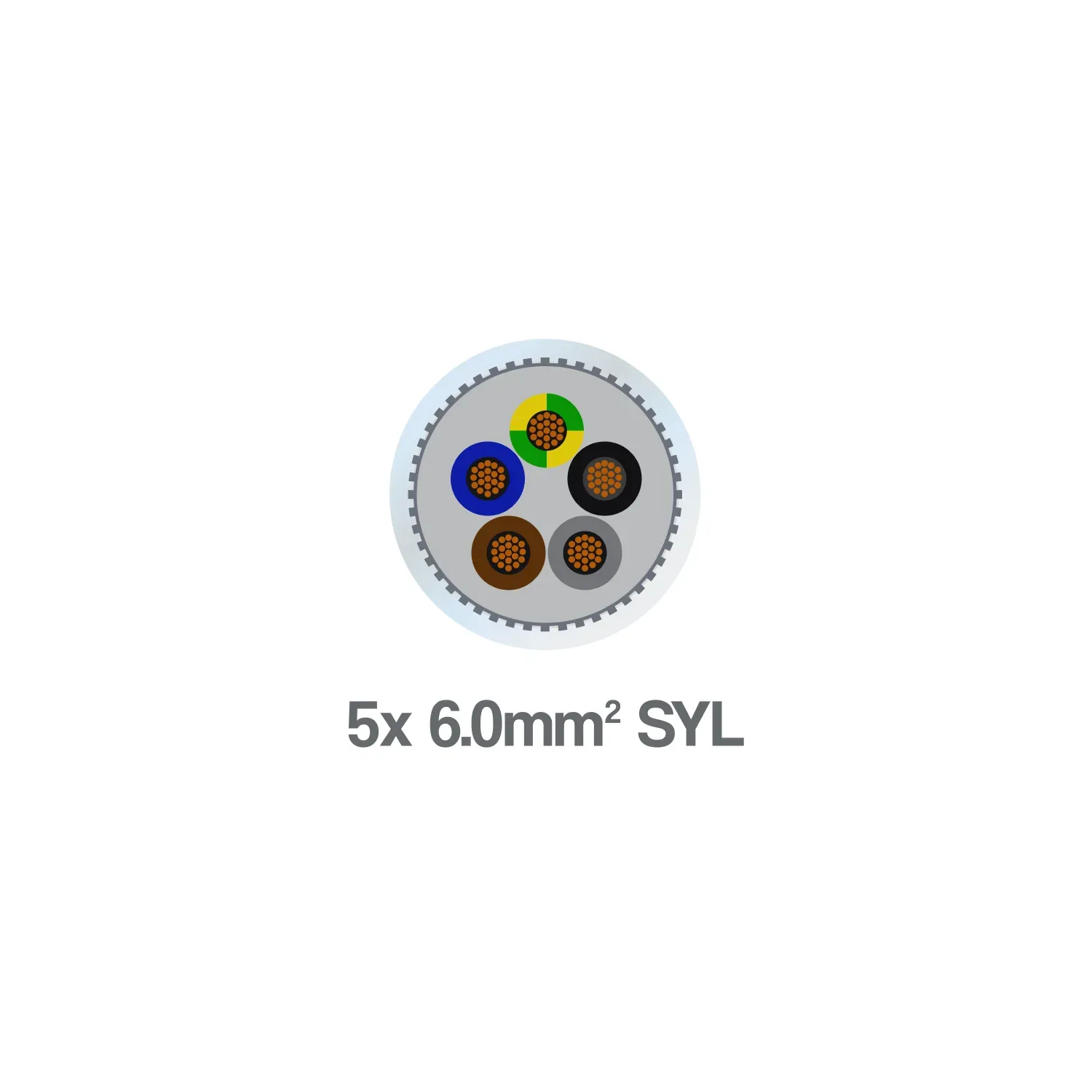

  • Cores: Brown, Black, Grey, Blue, Green/Yellow
Specifications

Number of Cores

5

Conductor Size

6mm²

Conductor Type

Plain Annealed Stranded Copper

Stranding

84/0.30mm

Insulation

PVC

Bedding

PVC

Armouring

Galvanised Steel Wire Braid

Sheath

Transparent PVC

Voltage Rating

300/500V

Current Capacity (30°C, in air)

44A

Max Conductor Resistance at 20°C

3.3 Ω/km

Voltage Drop (Single Phase AC)

7.3 mV/A/m

Voltage Drop (Three Phase AC)

6.4 mV/A/m

Outside Diameter

16.7mm

Weight

572 kg/km

Gland Size

20mm

Operating Temperature (Static)

-20°C to +80°C

Operating Temperature (Flexing)

-5°C to +70°C

Core Identification

Brown, Black, Grey, Blue, Green/Yellow

Standard

BS EN 50525-2-11 / VDE 0250
