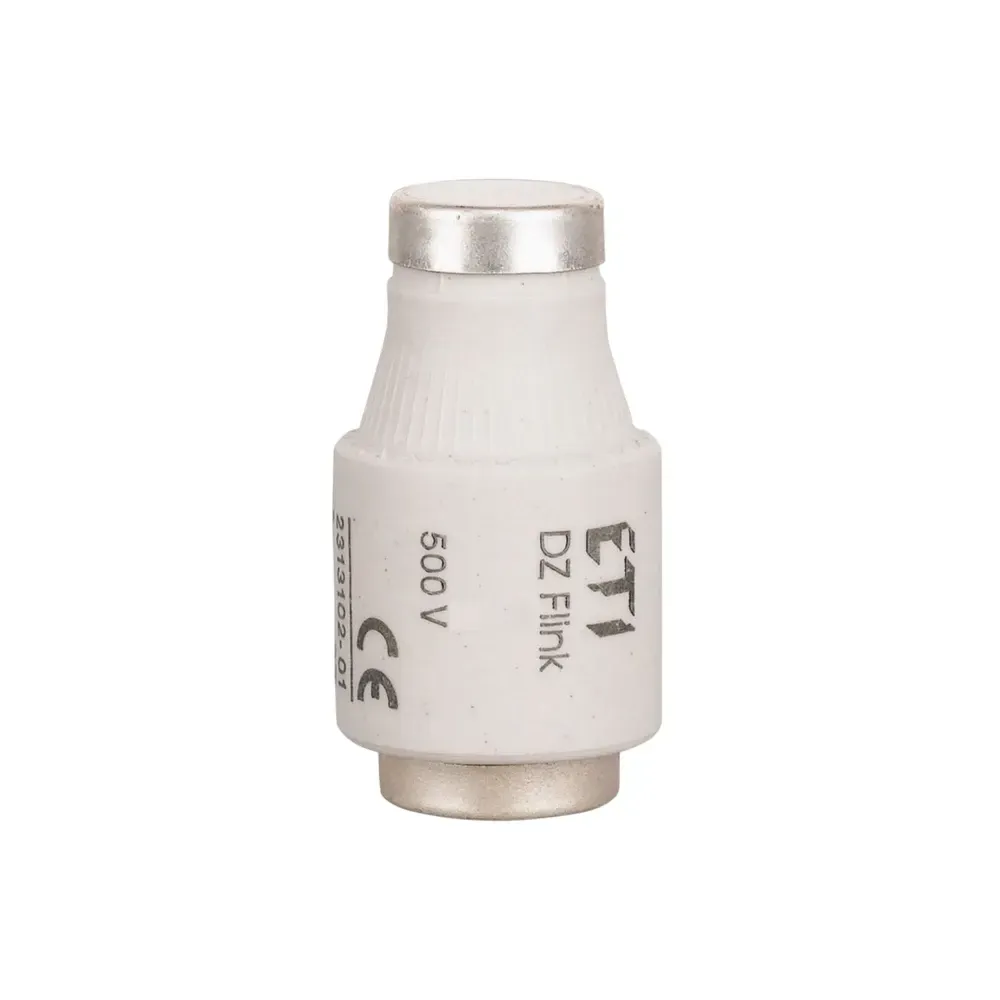

D Fuse-Link flink 50A DIII 500V AC DC Fast Acting Cartridge Fuse

Photo is representative

D Fuse-Link flink 50A DIII 500V AC DC Fast Acting Cartridge Fuse

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code DZ50
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £1.76

Gross price

£2.11

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Screw-type D fuse-link for LV distribution units. Sized DIII, rated 50A at 500V AC and 500V DC. Fast-acting (flink) characteristic — select per load type.

Insulated ceramic body handles high mechanical and thermal stress. Nickel-plated copper alloy contacts top and bottom.

  • Rated current: 50A
  • Voltage: 500V AC / 500V DC (IEC)
  • Size: DIII
  • Fuse class: fast-acting (flink)
  • Dimensions: 50mm length, 27mm diameter
Specifications

Rated Current

50 A

Rated Voltage AC (IEC)

500 V

Rated Voltage DC (IEC)

500 V

Fuse Class

flink (fast-acting)

Product Size

DIII

Contact Material

Nickel plated copper alloy

Insulation

Insulated body, high mechanical and thermal impact rated

Dimension a (Length)

50 mm

Dimension bØ (Diameter)

27 mm

Weight

52.8 g
