412802407

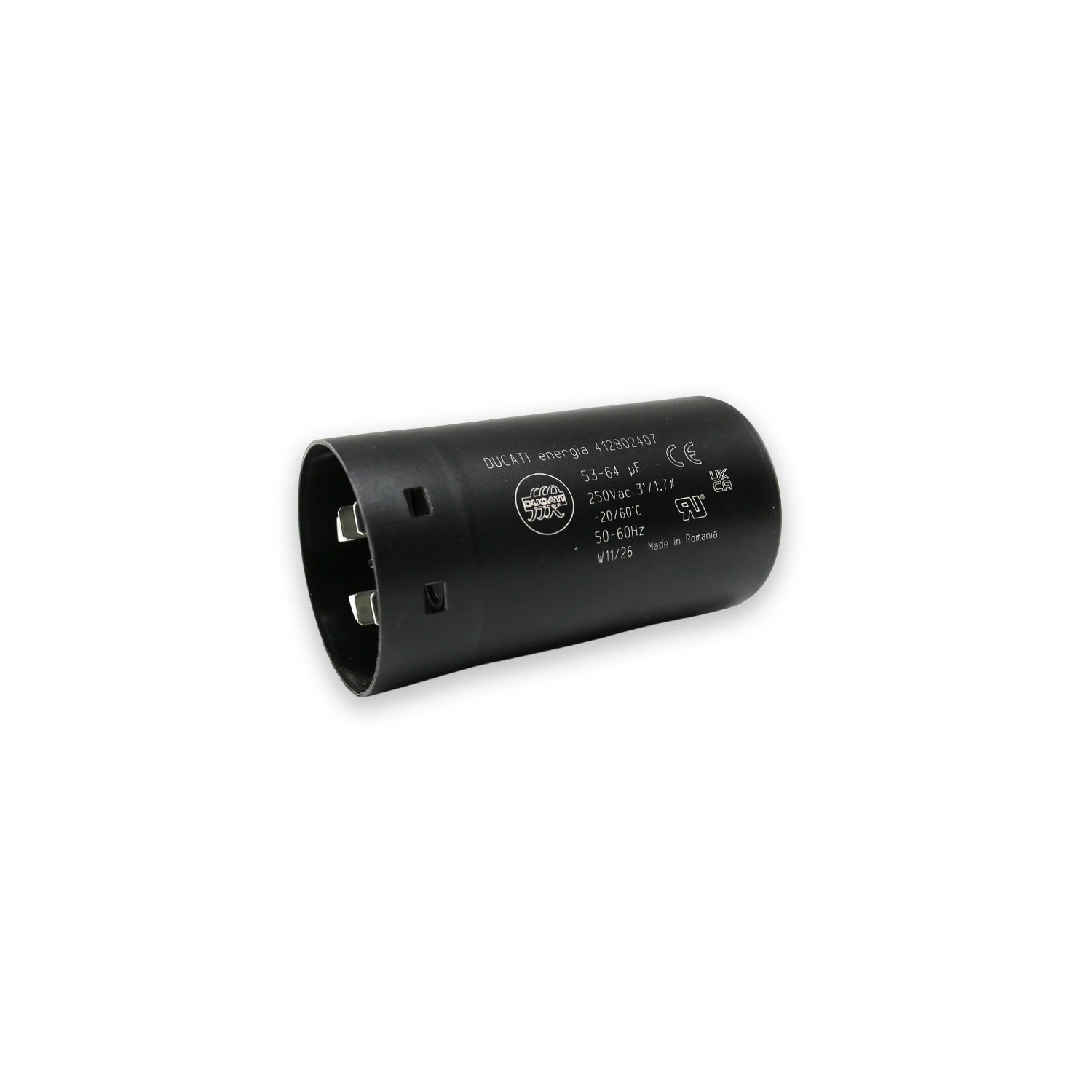

Photo is representative

53-64 µF Motor Start Capacitor 250V AC - Faston 6.3mm Terminals

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 412802407
GTIN —
Stock status: In stock

priced individually

More arriving soon

Net price: £11.77

Gross price

£14.13

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

53-64 µF motor start capacitor rated 250 V AC for single‑phase induction motor starting, suitable for compressors, pumps and similar equipment. Intermittent duty: 3s ON / 3 min OFF (N=20 insertions/hour). Faston 6.3 mm double‑tag terminals.

  • 53-64 µF capacitance with ±10% tolerance
  • 250 V AC rating, 50-60 Hz
  • Dissipation factor: typical 6%, max 10%
  • Duty cycle: intermittent (3s ON / 3 min OFF)
  • Terminals: Faston 6.3 mm double tag; terminal spacing 16 mm
  • Dimensions D 45.5 mm × H 84 mm
  • Mounting: without stud
  • Operating temperature: -20°C to +60°C
  • Construction: electrolytic (etched aluminium foil)
  • Certification: UL E347921

Always verify motor nameplate capacitance and voltage before replacement. Discharge the capacitor safely (eg. 20 kΩ resistor across terminals) and confirm V with a multimeter before handling.

Specifications

Capacitance

53-64 µF

Tolerance

±10%

Rated Voltage

250 V AC

Type

Motor start (electrolytic) - intermittent duty

Frequency

50-60 Hz

Dissipation Factor

Typical 6%, Max 10%

Duty Cycle

3s ON / 3 min OFF (N=20 insertions/hour)

Terminals

Faston 6.3 mm double tag (terminal spacing 16 mm)

Case

Moulded thermoplastic, self‑extinguishing (round)

Dimensions

Diameter 45.5 mm × Height 84 mm

Mounting

Without stud

Operating Temperature

-20°C to +60°C

Construction

Electrolytic (etched aluminium foil)

Certification

UL E347921
