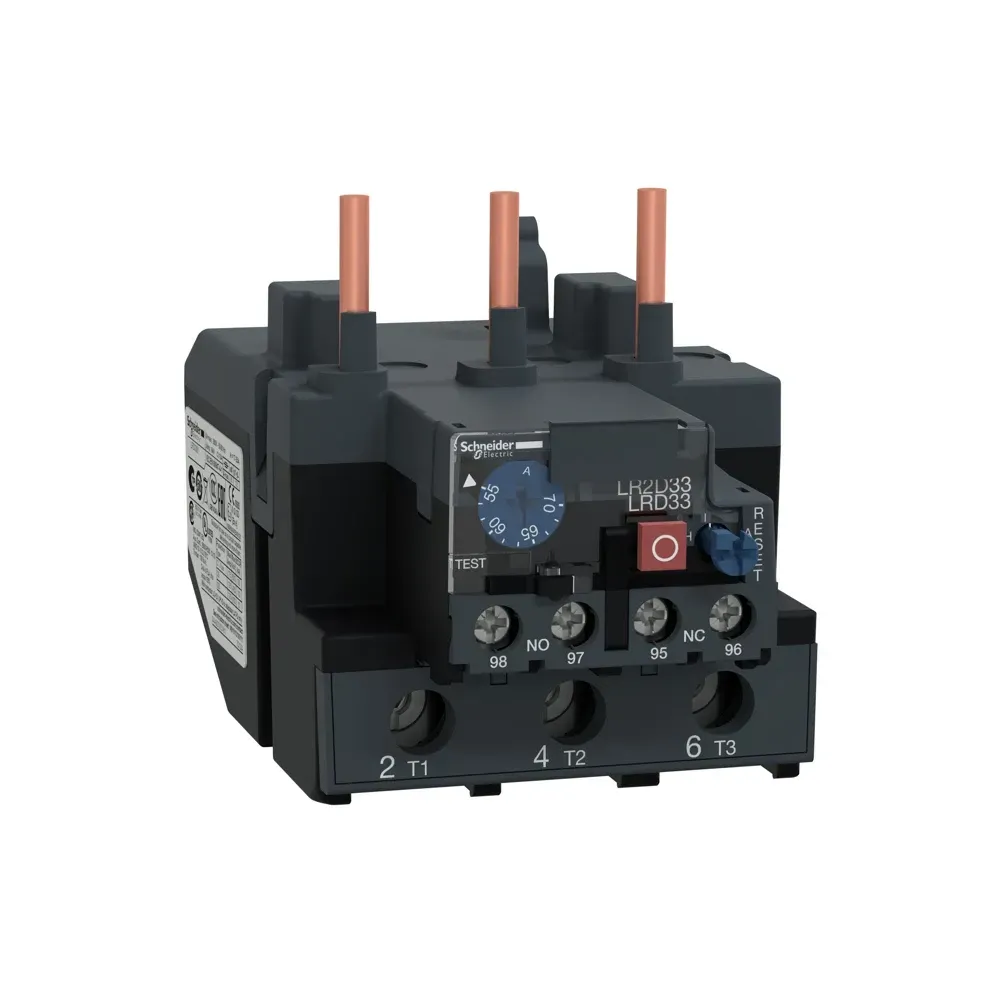

Schneider Electric 55-70A thermal overload relay LRD3361 Class 10A

Photo is representative

Schneider Electric LRD3361 Thermal Overload Relay 55-70A Class 10A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LRD3361
GTIN 3389110519983
Stock status: 5 in stock

priced individually

Net price: £125.21

Gross price

£150.25

Schneider Electric TeSys Deca differential thermal overload relay (LRD3361) for motor protection. Adjustable thermal protection 55-70 A with Class 10A trip characteristics. Rated operational/insulation up to 1000 V AC (0…400 Hz). Auxiliary contact configuration 1NO+1NC. Manual reset via blue push-button (red push-button for stop). Designed for direct mounting under contactors and compatible with LC1D95 and LC1D80; plate or rail mounting with accessories. Ambient operation -20…60 °C, IP20 protection.

Specifications

Current Range

55-70A adjustable

Trip Class

Class 10A thermal protection

Operating Voltage

1000 V AC (0…400 Hz) rated operational/insulation

Auxiliary Contacts

1NO+1NC

Reset Type

Manual reset (blue push-button); red push-button stop

Mounting

Under contactor; plate or rail with accessories. Compatible with LC1D95 and LC1D80

Schneider Electric
