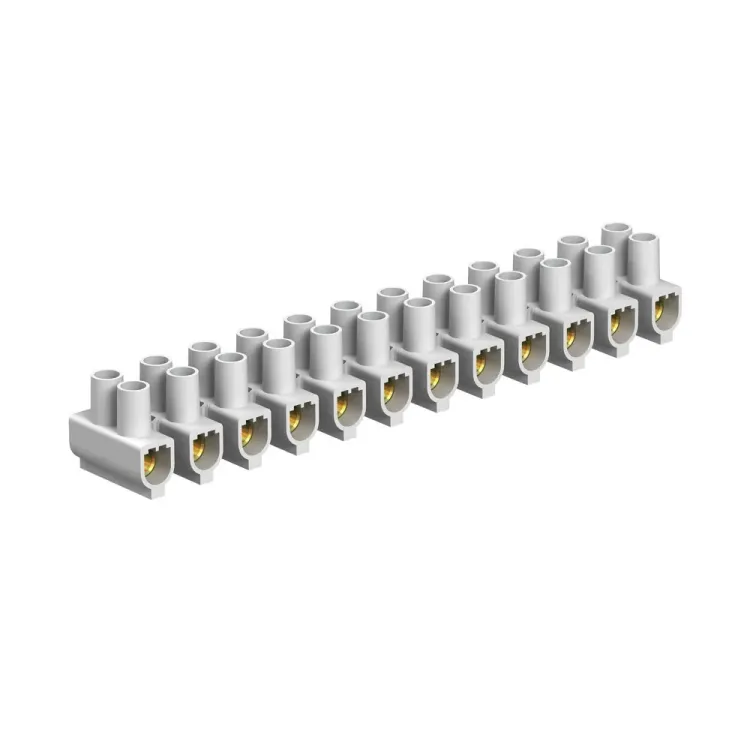

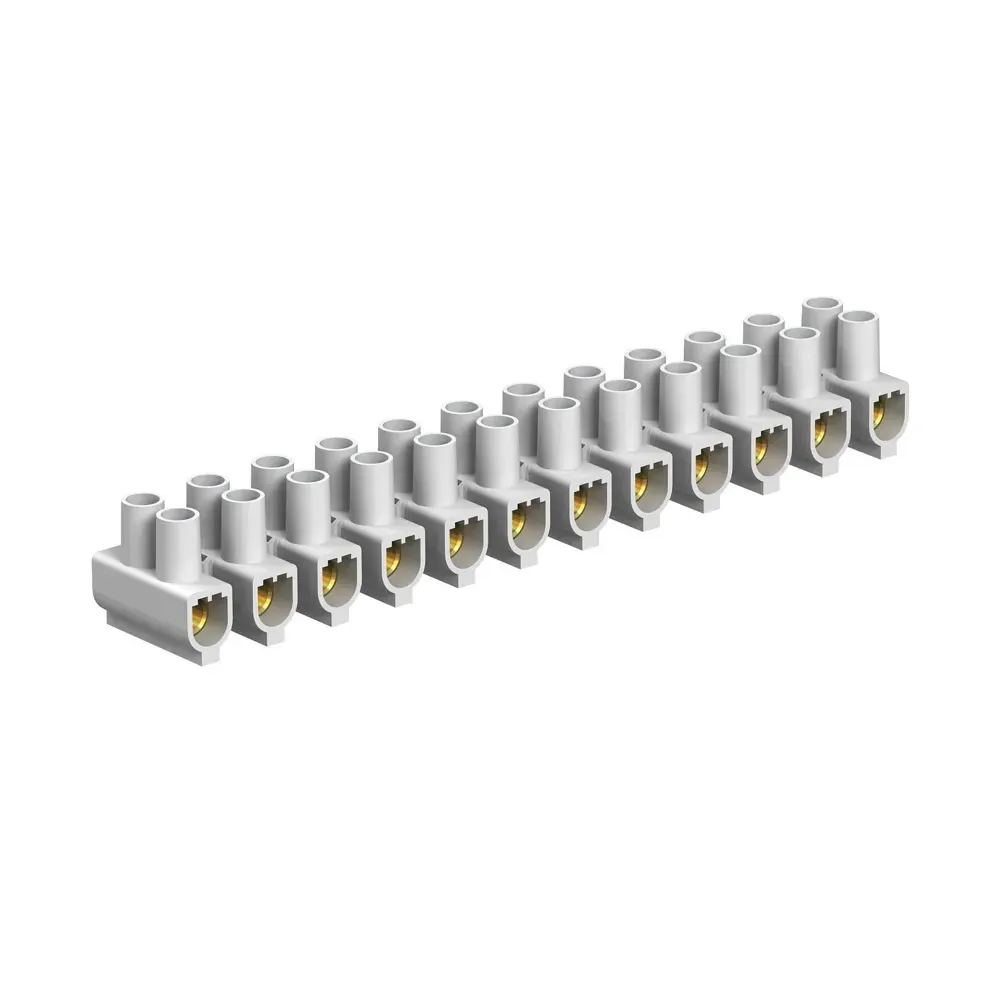

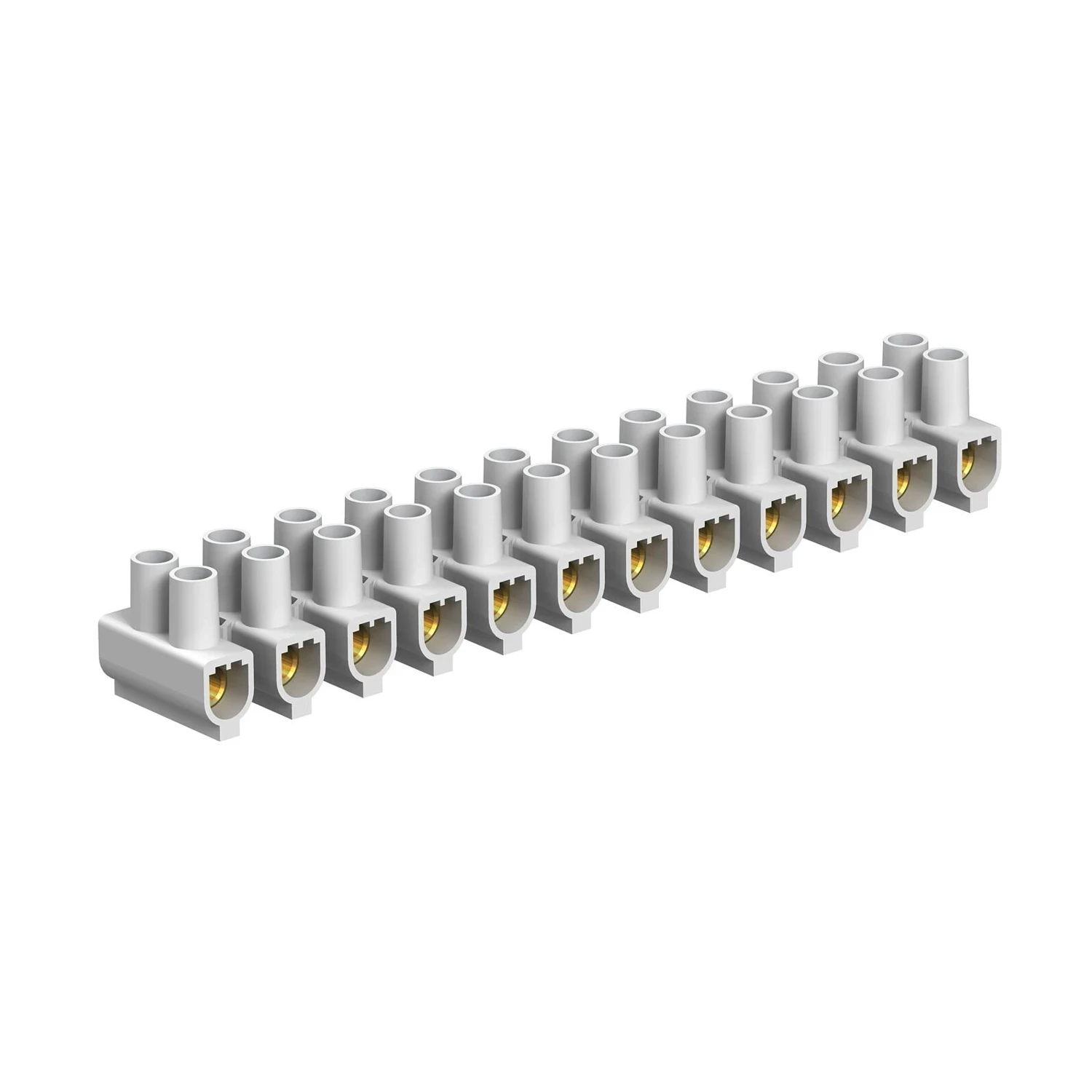

Strip Terminal Block 101A 12 Way 25mm² Direct Mount

Photo is representative

Strip Terminal Block 101A 12 Way 25mm² Direct Mount

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code SC60
GTIN 4012195879503
Stock status: In stock

priced individually

More arriving soon

Net price: £6.00

Gross price

£7.20

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

12-pole screw-connection terminal strip for direct mounting applications. Suits solid and multi-wire conductors up to 25mm², and fine-wire up to 16mm² without ferrule. Individual terminals are detachable from the strip.

  • Nominal current: 101A at 750V
  • Conductor range: up to 25mm² multi-wire, up to 16mm² fine-wire
  • Tightening torque: 2Nm
  • Temperature range: -5°C to +80°C
  • Tested to EN 60998
Specifications

Nominal Current

101 A

Nominal Voltage

750 V

Poles

12

Nominal Cross-Section

25 mm²

Max Conductor (Multi-Wire)

25 mm²

Max Conductor (Fine-Wire, No Ferrule)

16 mm²

Connection Type

Screw connection

Tightening Torque

2 Nm

Mounting Type

Direct mounting

Body Material

Polypropylene

Terminal Material

Brass terminals, steel screws, electrogalvanised and transparently passivated

Temperature Range

-5°C to +80°C

Dimensions (L x W x H)

187 x 30 x 28 mm

Standard

EN 60998
