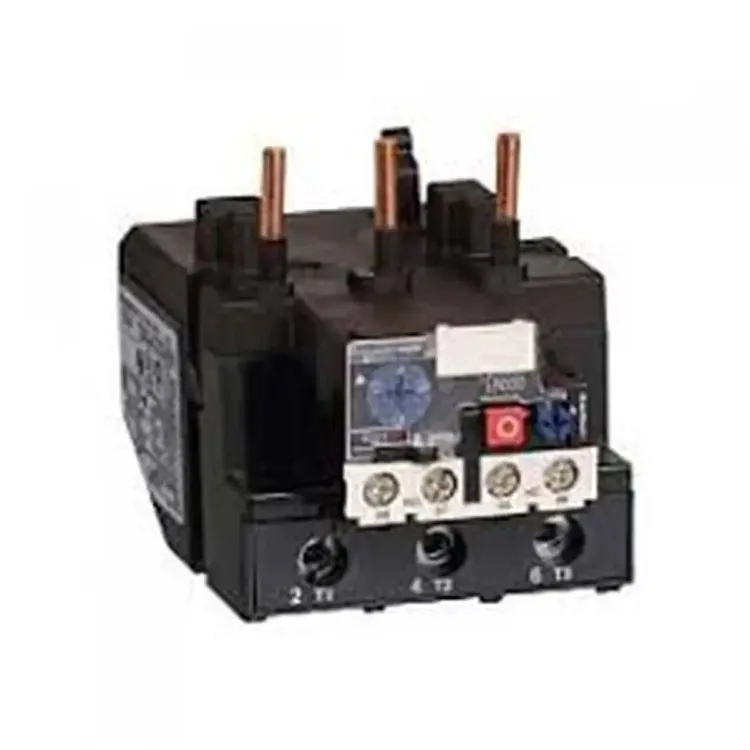

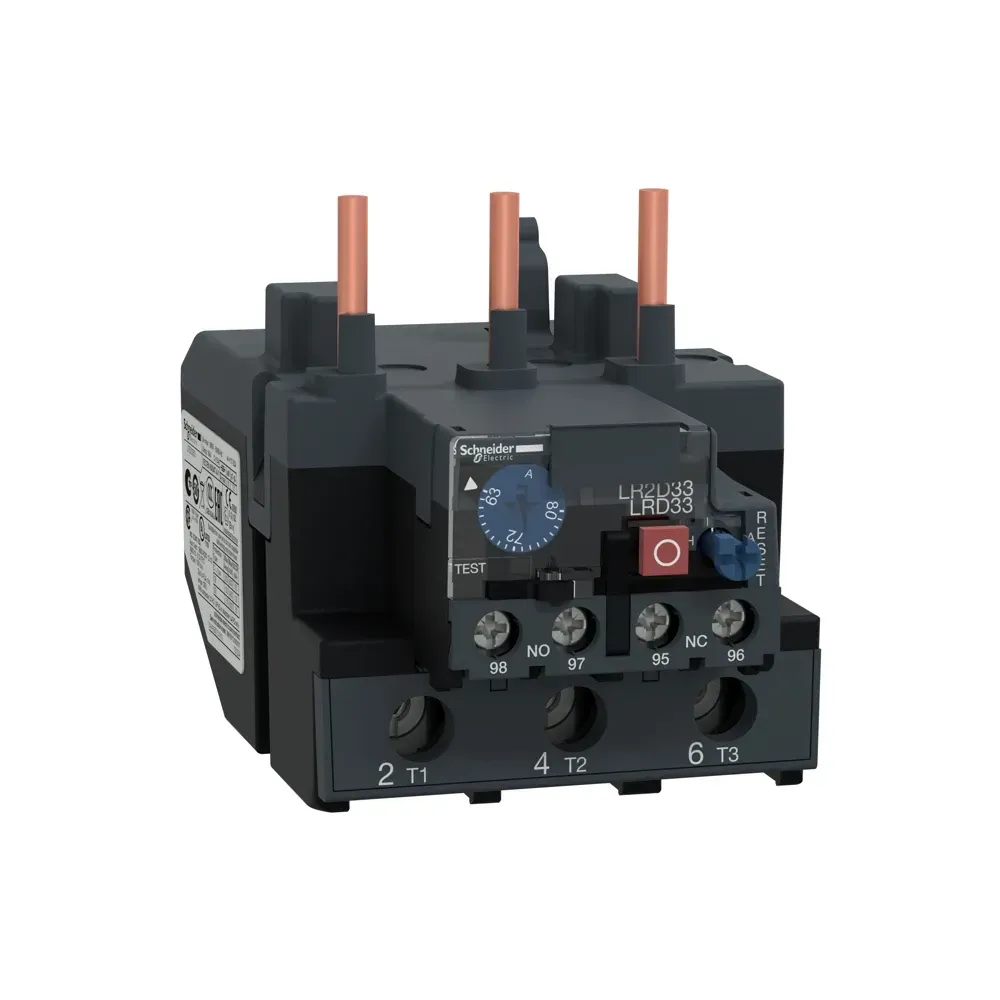

Schneider Electric LRD3363 Thermal Overload Relay 63-80A Class 10A

Schneider Electric 63-80 A thermal overload relay (LRD3363) from the TeSys Deca range, designed for motor protection in industrial starters. Provides Class 10A thermal tripping with adjustable protection 63…80 A and a 1.14±0.06 Ir trip threshold. Fitted with 1NO+1NC auxiliary contacts and manual reset (blue push-button); stop via red push-button. Rated operational voltage up to 1000 V AC (0–400 Hz). Phase failure sensitive and temperature compensated −20…60 °C. Mounts under LC1D80/LC1D95 contactors or on plate/rail with accessories. Screw clamp terminals for 4–35 mm² conductors. Conforms to IEC 60947-4-1.
