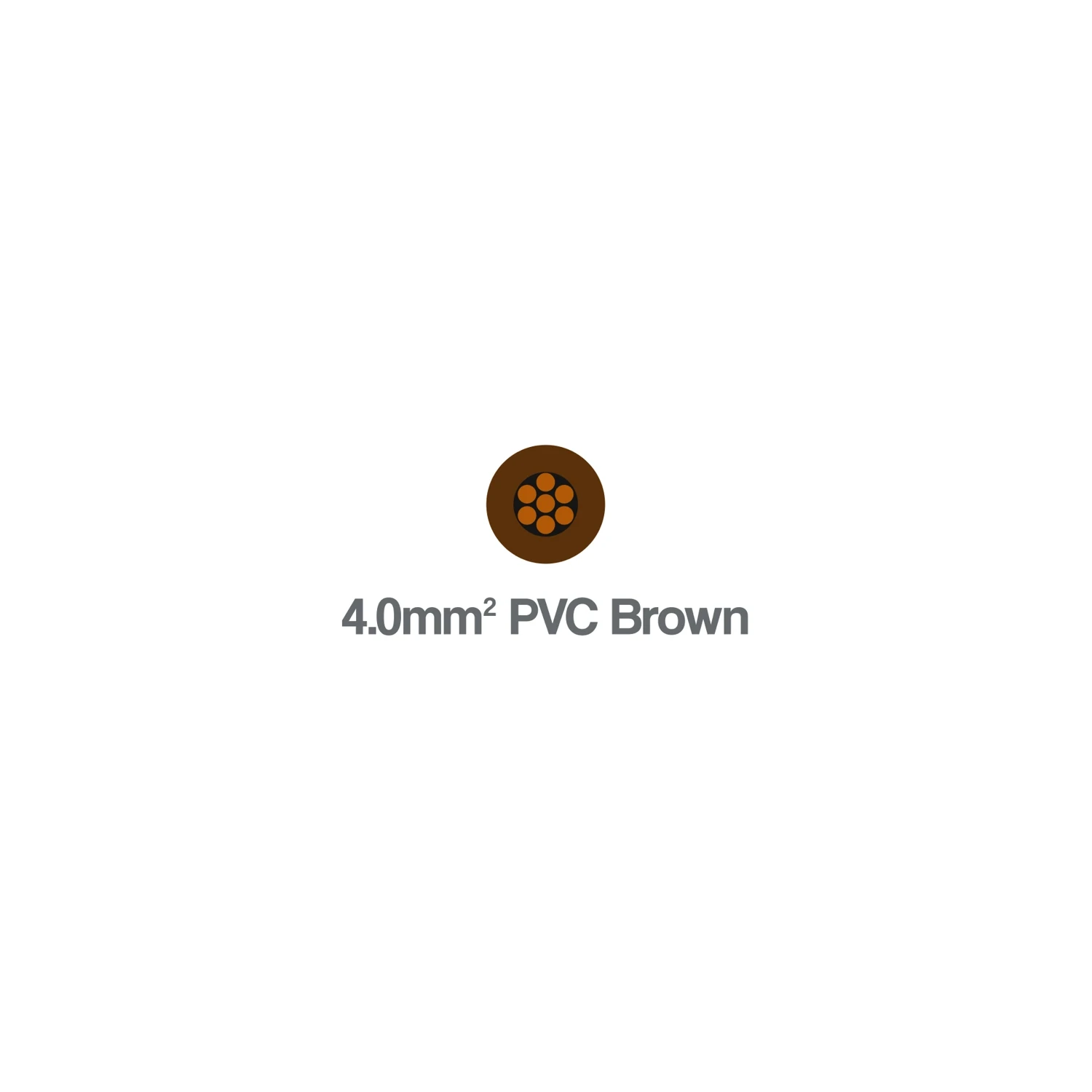

6491B H07Z-R 4mm Single Core LSZH Cable Brown 450 750V

Photo is representative

6491B H07Z-R 4mm Single Core LSZH Cable Brown 450 750V

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 4PVCBROWN5
GTIN —
Stock status: In stock

priced per meter

More arriving soon

Net price: £0.96

Gross price

£1.16

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single core LSZH cable to H07Z-R standard. 4mm² Class 2 stranded copper, rated 450/750V. For use in conduit and fixed protection installations — lighting, switchgear, control gear, and appliances where fire, smoke, and toxic fume risk needs to be managed.

LSZH sheath keeps smoke and halogen emissions low in the event of a fire.

  • 4mm² / 7⁄0.85mm stranded copper
  • 450/750V rated
  • OD: 4.2mm
  • Temp range: 0°C to +90°C
  • Flame retardant to BS EN 60332-1-2
Specifications

Conductor Size

4 mm²

Number of Cores

1

Voltage Rating

450/750V

Conductor Type

Class 2 stranded copper

Stranding

7/0.85 mm

Sheath Material

Low Smoke Zero Halogen (LSZH)

Core Colour

Brown

Overall Diameter

4.2 mm

Weight

49 kg/km

Temperature Range

0°C to +90°C

Minimum Bending Radius (Fixed)

6 × overall diameter

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
