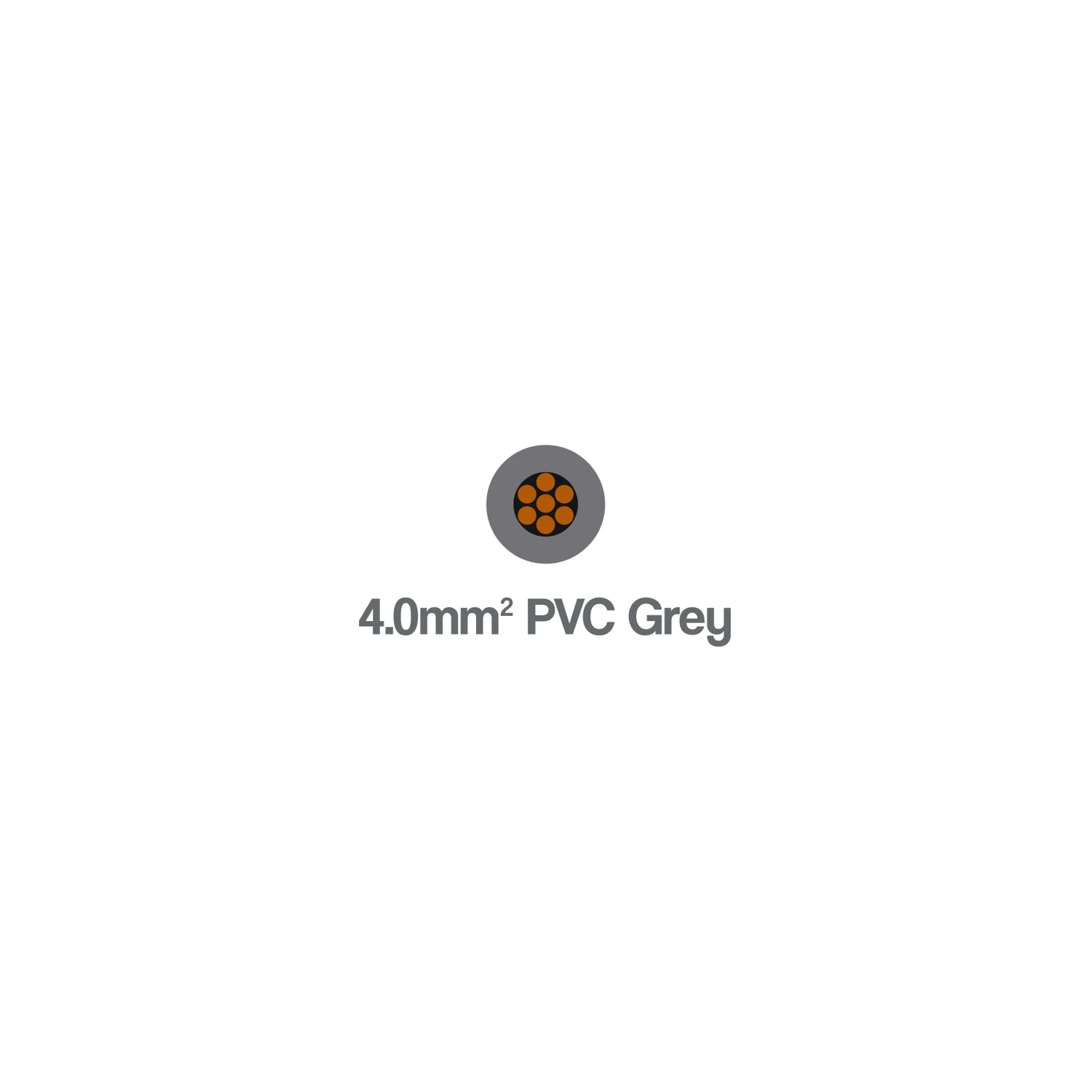

6491B H07Z-R Single Core 4mm² Grey LSZH Cable 500m

Photo is representative

6491B H07Z-R Single Core 4mm² Grey LSZH Cable 500m

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code 4PVCGREY5
GTIN —
Stock status: In stock

priced per metre

Net price: £0.83

Gross price

£0.99

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

Single core 6491B cable to H07Z-R spec. Grey LSZH sheath — suited for conduit runs, fixed wiring, lighting circuits, switchgear, and control gear installations where low smoke and zero halogen is required.

LSZH sheath is the go-to where fire, smoke, and toxic fume risk needs to be managed — enclosed spaces, public buildings, transport.

  • 450/750V rated
  • 4mm² Class 2 stranded copper — 7⁄0.85mm
  • OD: 4.2mm
  • Temp range: 0°C to +90°C
  • Min. bending radius (fixed): 6 × OD
Specifications

Voltage Rating

450/750V

Conductor Size

4mm²

Cores

1

Core Colour

Grey

Conductor Type

Class 2 stranded copper

Stranding

7/0.85mm

Overall Diameter

4.2mm

Sheath Material

Low Smoke Zero Halogen (LSZH)

Temperature Range

0°C to +90°C

Min. Bending Radius (Fixed)

6 × overall diameter

Weight

49 kg/km

Flame Retardancy

BS EN 60332-1-2

Standards

H07Z-R, BS EN/IEC 60228, IEC/EN 61034-1/2, BS EN/IEC 60332-1-2
