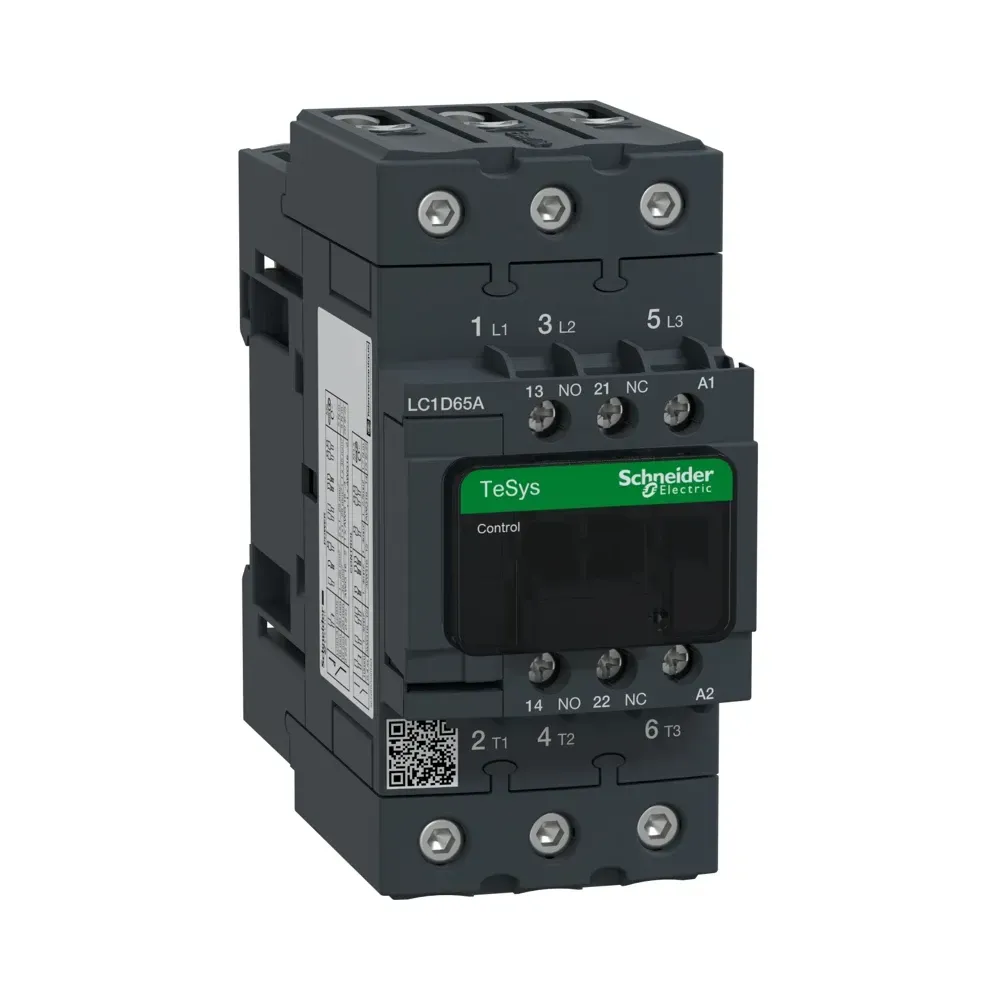

Schneider TeSys D 65A 110V AC 3P Contactor LC1D65AF7 front view

Photo is representative

Schneider TeSys D 65A 110V AC 3P Contactor - LC1D65AF7

Schneider TeSys D 65A 110V Coil AC 3P contactor (LC1D65AF7), suitable for demanding motor control and resistive load applications. AC-3 rated 65A at 400V for motors up to 30kW and AC-1 rated 80A. Equipped with screw clamp terminals for secure connections. Designed for DIN rail or panel mounting, this contactor features 1NO+1NC built-in auxiliary contacts and complies with IEC 60947-4-1 and 60947-5-1 standards. Ideal for DOL motor starting, star-delta starters, and integration in industrial control panels.

Product Information

Stock Code LC1D65AF7
MPN
GTIN
Stock status: 5 available
Price: £250.57
incl. VAT, 20% priced individually

Product Features

Current Rating 65A AC-3, 80A AC-1
Control Coil 110V AC 50/60Hz
Contact Configuration 3P (3 NO main), 1NO+1NC aux
Frame Size D-frame
Terminal Type Screw clamp terminals
Mounting Method 35mm DIN rail or panel mount
Motor Rating Up to 30kW at 400V AC (AC-3)
Auxiliary Capability Built-in 1NO+1NC, accepts up to 4 auxiliary blocks
Mechanical Life 6 million operations
Standards Compliance IEC 60947-4-1, IEC 60947-5-1, EN 60947, UL, CSA

Brand

Schneider Electric
