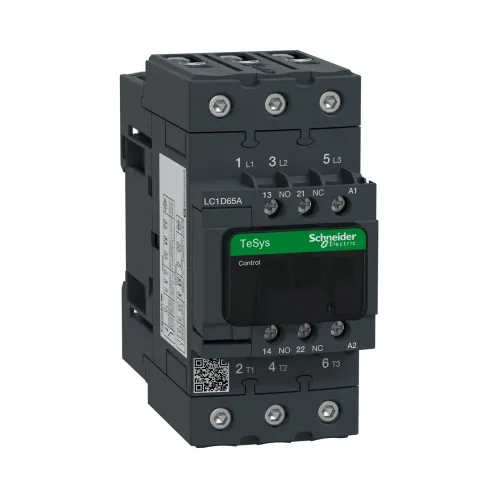

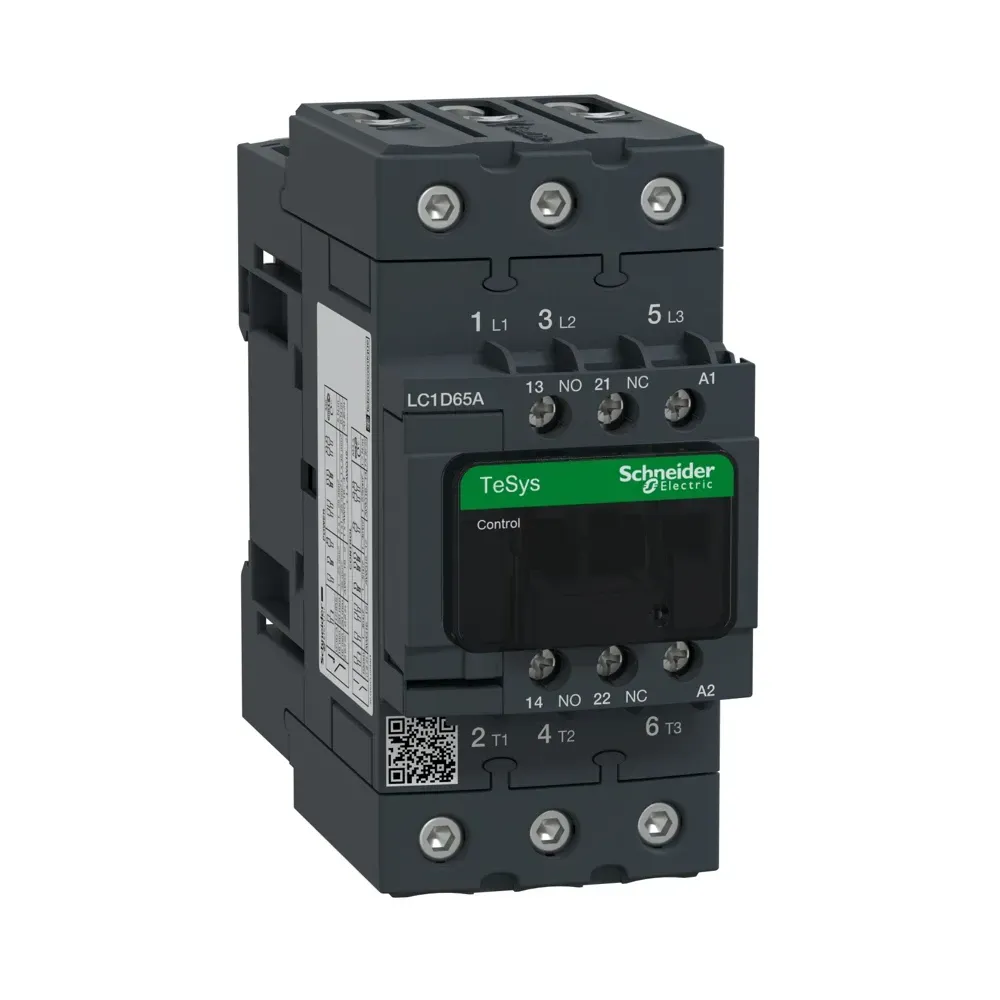

Schneider TeSys D 65A 3-pole contactor LC1D65AV7 front view

Photo is representative

Schneider TeSys D 65A 400V AC 3P Contactor - LC1D65AV7

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LC1D65AV7
GTIN
Stock status: 4 in stock

priced individually

Net price: £191.32

Gross price

£229.58

Schneider TeSys D 65A 400V Coil AC 3P contactor (LC1D65AV7), suitable for industrial motor control and resistive load switching. Rated 65A AC-3 at 400V for motors up to 30kW. Features screw clamp terminals for reliable connections, DIN rail or panel mounting for flexible installation, and includes 1NO+1NC auxiliary contacts. Compliant with IEC 60947-4-1 and IEC 60947-5-1 standards. High durability with 6 million mechanical operations and robust environmental ratings for demanding industrial environments.

Specifications

Current Rating

65A AC-3 / 80A AC-1

Control Coil

400V AC 50/60Hz

Contact Configuration

3P + 1NO+1NC auxiliary contacts

Frame Size

D-frame

Terminal Type

Screw clamp terminals (EverLink)

Mounting Method

35mm DIN rail / Panel mount

Auxiliary Capability

Accepts up to 4 auxiliary blocks

Mechanical Life

6 million operations

Motor Rating

Up to 30kW at 400V AC (AC-3)

Standards Compliance

IEC 60947-4-1, IEC 60947-5-1, EN 60947-4-1, UL, CSA, CE, UKCA

Schneider Electric
