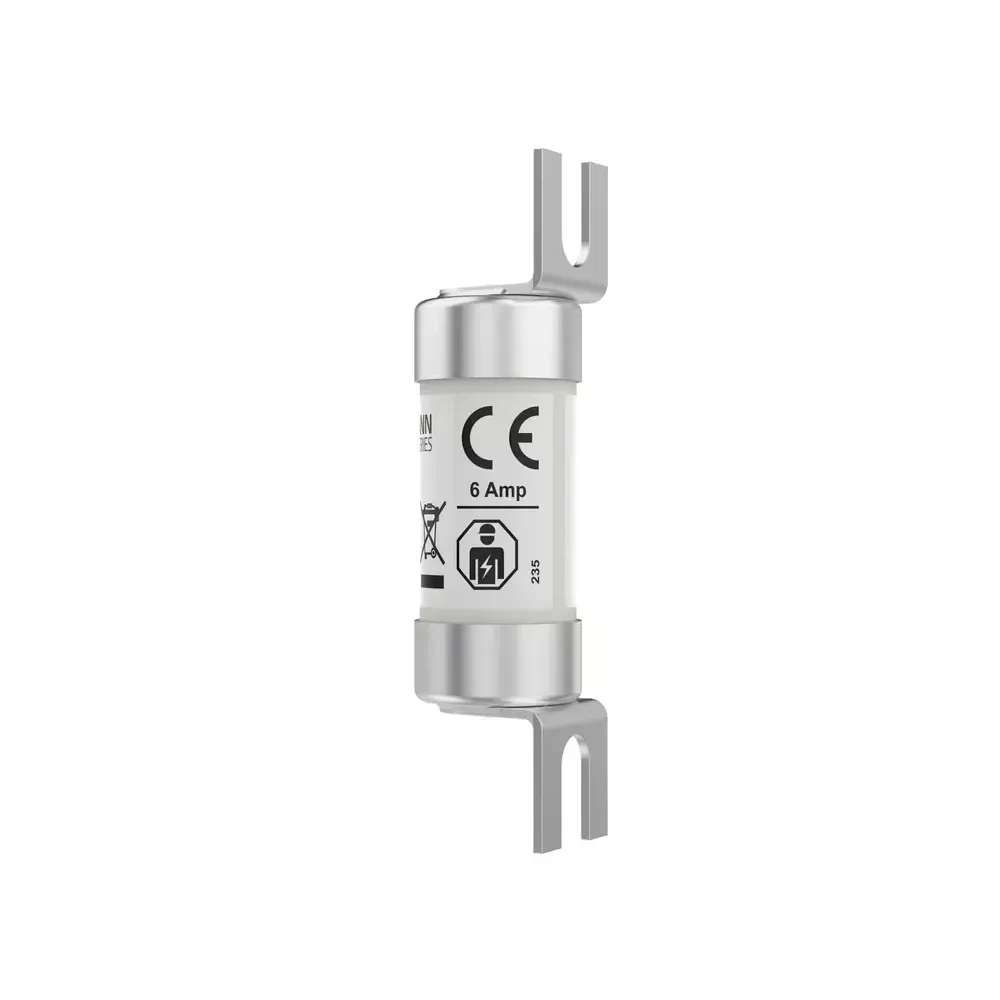

6A 13x58mm NIT Fuse

Photo is representative

NIT 6A A1 gG BS88 IEC60269 550V AC 250V DC Ceramic Cartridge Fuse Offset Tag

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code NIT 6
GTIN —
Stock status: In stock

priced individually

Net price: £4.85

Gross price

£5.82

Same day dispatch
Mon‐Fri · Subject to order volume Free delivery available 30 day returns

BS88 gG fuse-link, size A1, for bolted fuse carriers and holders. Rated 6A at 550V AC / 250V DC. Ceramic body, tin-plated copper offset tag.

  • Current: 6A
  • Voltage: 550V AC / 250V DC
  • Class: gG
  • Breaking capacity: 80kA AC / 40kA DC
  • Dimensions: 14.5mm dia × 56mm length
Specifications

Current Rating

6 A

Rated Voltage AC

550 V

Rated Voltage DC

250 V

Fuse Class

gG

Standard

BS88 / IEC60269

Fuse Size

A1

Breaking Capacity AC

80 kA

Breaking Capacity DC

40 kA

Clearing I2t at Rated Voltage

40 A²s

Melting I2t

28 A²s

Power Dissipation at Rated Current

1.8 W

Terminal Type

Offset Tag

Terminal Material

Tin-Plated Copper

Body Material

Ceramic

Mounting

Bolted

Diameter

14.5 mm

Length

56 mm

Weight

0.0165 kg

RoHS Compliant

Yes
