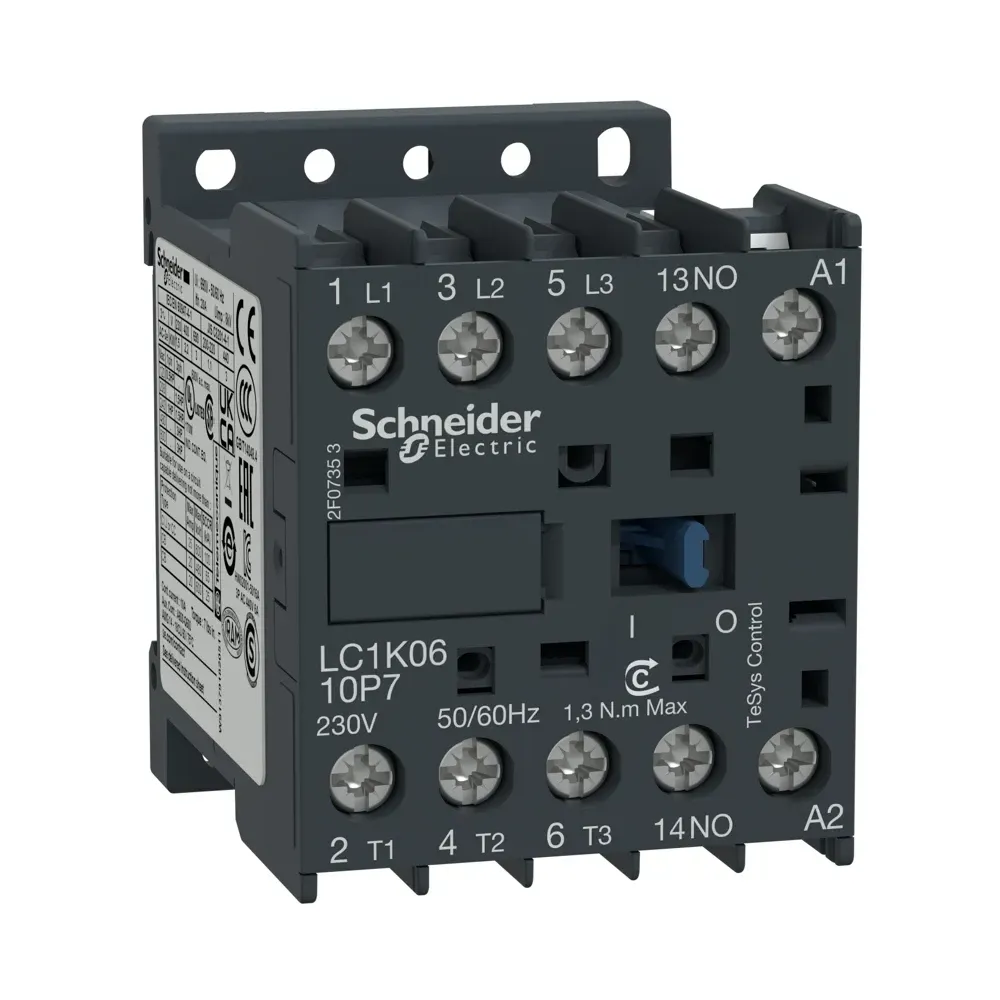

Front view of Schneider TeSys K LC1K0610P7 3-pole mini contactor

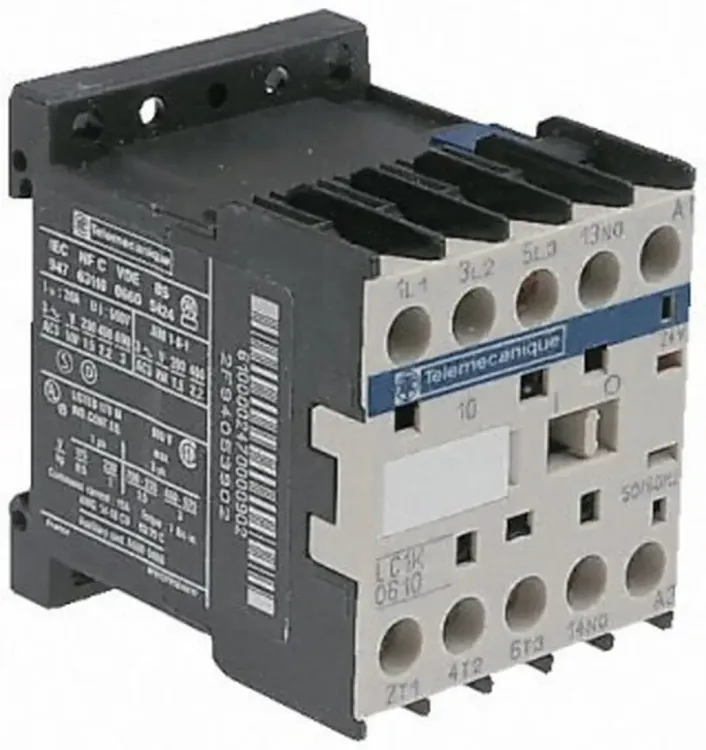

Photo is representative

Schneider TeSys K 6A 230V AC 3P Mini Contactor - LC1K0610P7

Schneider TeSys K 6A 230V AC 3-pole mini contactor (LC1K0610P7) with 1 NO auxiliary contact. Designed for compact motor and load control (DOL, lighting, heating) where space is limited. Rated AC-3 6 A at ≤440 V (at <60 °C) with motor ratings: 1.5 kW at 220–230 V, 2.2 kW at 380–415 V and 3 kW at 440⁄690 V (AC-3). Mountable on 35 mm DIN rail or panel, screw clamp terminals, IEC 60947-4-1 compliant. Coil: 230 V AC (50⁄60 Hz) — inrush 30 VA, hold-in 4.5 VA. Compact dimensions (H58 × W45 × D57 mm), net weight 0.18 kg, IP2X.

Product Information

Stock Code LC1K0610P7
MPN LC1K0610P7
GTIN 3389110368819
Stock status: In stock
Price: £32.01
incl. VAT, 20% priced individually

Original price: £35.57

10% off - Save £3.56

Product Features
Current Rating 6 A AC-3 (at <60 °C) at ≤ 440 V
Control Coil 230 V AC 50/60 Hz (decoded from part code P7)
Contact Configuration 3 power poles (3 NO) + 1 NO instantaneous auxiliary
Frame Size TeSys K mini
Terminal Type Screw clamp terminals (1.5…4 mm² solid / 0.75…4 mm² flexible)
Mounting Method 35 mm DIN rail or panel mount
Motor Ratings (AC-3) 1.5 kW at 220–230 V / 2.2 kW at 380–415 V / 3 kW at 440/690 V
Mechanical Life 10 million operations
Electrical Life 1.3 million operations (6 A AC-3 at Ue ≤ 440 V)
Standards Compliance EN/IEC 60947-4-1, UL/CSA, GB/T 14048.4
Inrush / Hold-in Power Inrush 30 VA, Hold-in 4.5 VA (at 20 °C)
Operating Time Coil energisation 10–20 ms / de-energisation 10–20 ms
Rated impulse withstand (Uimp) 8 kV
Overvoltage Category III
Rated making / breaking capacity Irms making 110 A AC; breaking up to 110 A (varies by voltage per IEC 60947)
Associated Fuse Rating 25 A gG (power circuit ≤ 440 V); 10 A gG (signalling circuit)
Rated insulation voltage (Ui) Power circuit 690 V (IEC), 600 V (UL/CSA)
IP / Protection IP2X (conforming to VDE 0106)
Dimensions (H×W×D) 58 × 45 × 57 mm
Net Weight 0.18 kg
Maximum Operating Rate 3600 cycles/h
Tightening Torque 0.8…1.3 N·m (screw clamp terminals)
Minimum Switching (signalling) Current 5 mA / Voltage 17 V
Heat Dissipation 1.3 W
Environmental / Storage Storage temperature −50…80 °C; operating altitude 2000 m without derating
Safety Reliability B10d = 1,369,863 cycles (nominal load) per EN/ISO 13849-1

Brand

Schneider Electric
