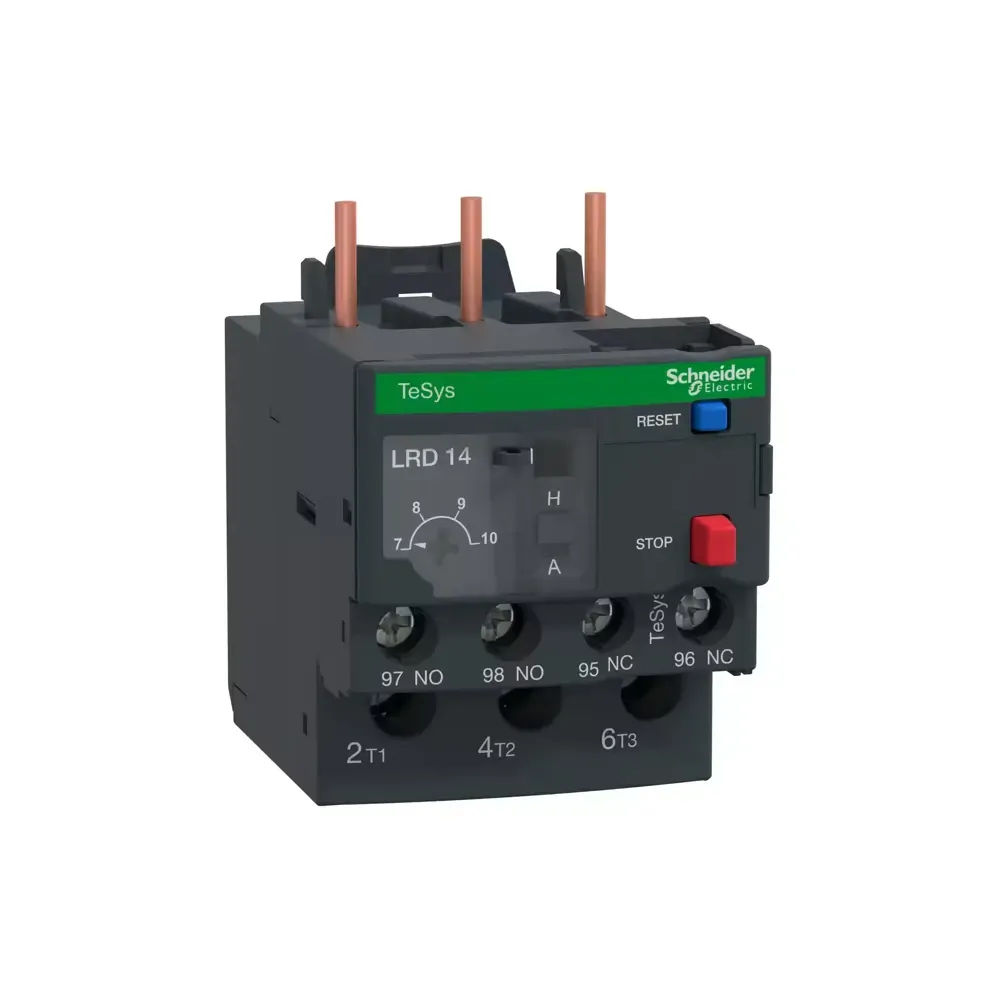

Schneider Electric LRD14 Thermal Overload Relay 7-10A Class 10A

Schneider Electric LRD14 thermal overload relay (LRD14) provides adjustable motor protection for 7-10 A full load current. Class 10A thermal trip characteristics with 690 V AC rated operational voltage and phase-failure sensitivity. Fitted with 1NO+1NC auxiliary contacts and manual reset (blue push-button) with a red stop push-button. Designed for direct mounting under TeSys Deca/LC1D contactors or mounting on plate/rail with accessories. Screw clamp terminals, IP20, temperature compensation -20…60 °C and multiple international certifications (IEC/UL/CSA) for industrial motor starter applications.
