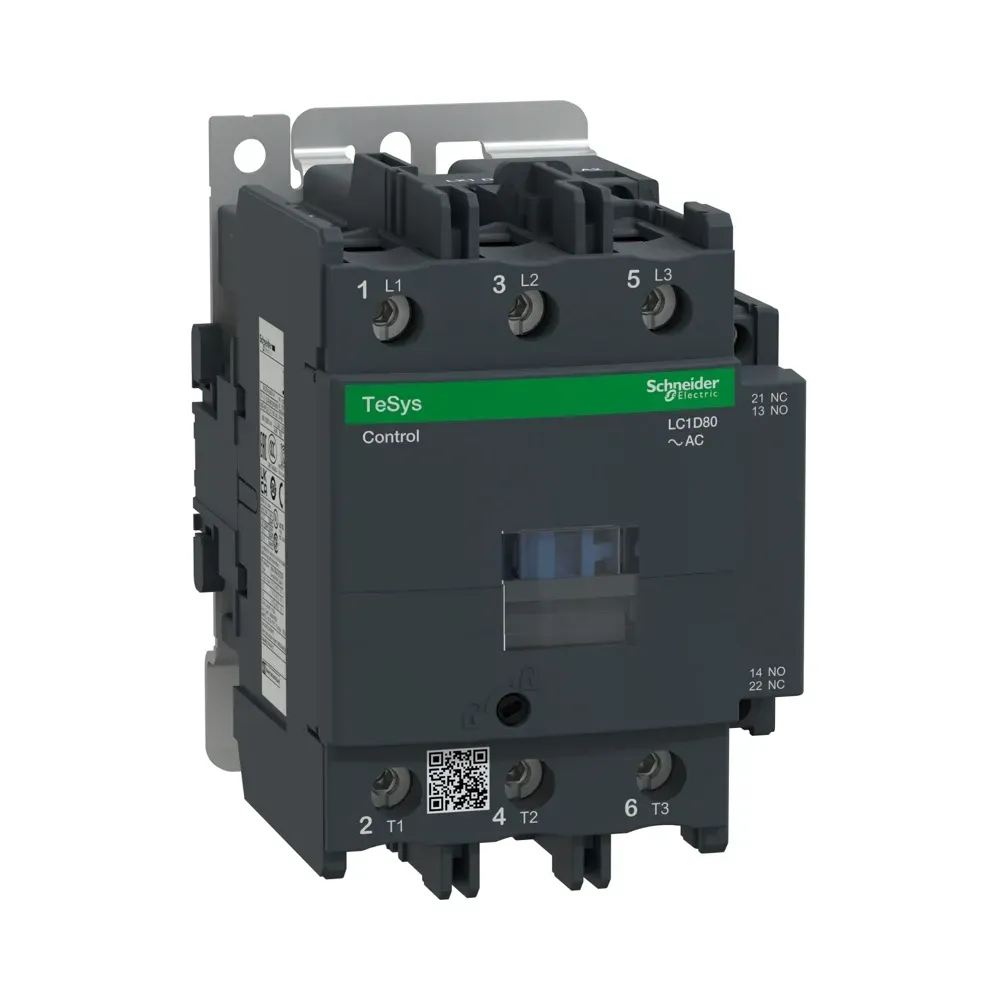

Schneider LC1D80F7 TeSys D 80A 3P contactor front view

Photo is representative

Schneider TeSys D 80A 110V AC 3P Contactor - LC1D80F7

Schneider TeSys D 80A 110V Coil AC 3P contactor (LC1D80F7) is engineered for heavy-duty motor control and resistive load switching in industrial environments. Suitable for AC-3 and AC-3e applications up to 440V, rated 80A for reliable DOL starting, star-delta configurations, and reversing duties. Motor rating: up to 45kW at 415/440V AC. Features include screw clamp terminals, integrated auxiliary 1NO+1NC mechanically linked contacts, and robust DIN rail or panel mounting. Compliant to IEC 60947-4-1 and designed for compatibility across TeSys D systems.

Stock Code: LC1D80F7

Online:

2 available
Price 348.47 £
incl. VAT, 20% priced individually

Product Features

Current Rating 80A AC-3, 125A AC-1
Control Coil 110V AC 50/60Hz
Contact Configuration 3P (3NO) + 1NO+1NC auxiliary
Frame Size D-frame
Terminal Type Screw clamp terminals
Mounting Method 35mm DIN rail / Panel mount
Auxiliary Capability Accepts up to 4 auxiliary contact blocks
Motor Rating Up to 45kW at 415/440V AC (AC-3)
Mechanical Life 4 million operations
Standards Compliance IEC 60947-4-1, EN 60947-5-1, UL 60947-4-1, CSA

Brand

Schneider Electric
