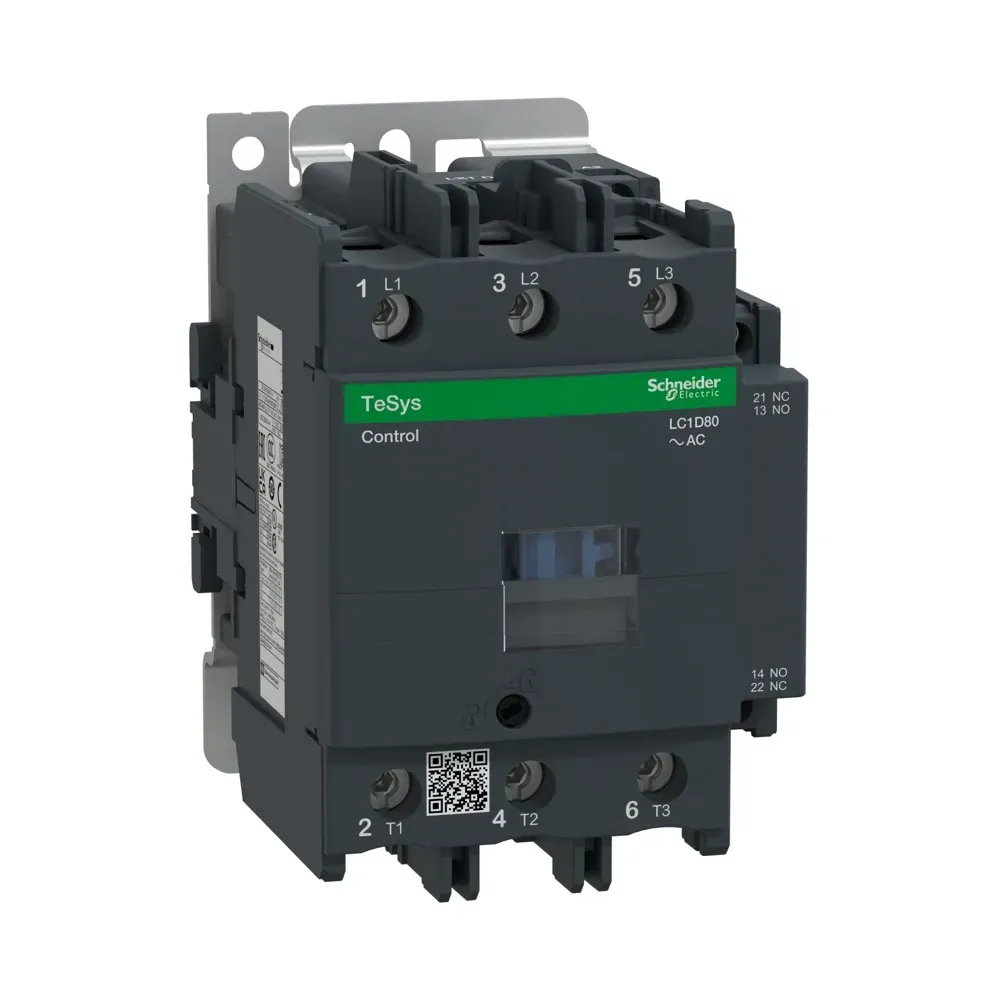

Schneider TeSys D LC1D80P7 80A 3P contactor front view

Photo is representative

Schneider TeSys D 80A 230V AC 3P Contactor - LC1D80P7

Schneider TeSys D 80A 230V Coil AC 3P contactor (LC1D80P7) designed for industrial motor control and resistive load applications. AC-3 rated 80A at 440V, suitable for motors up to 45kW at 415–440V and 55kW at 500V. Features integrated 1NO+1NC auxiliary contacts, screw clamp terminals, and is compatible with DIN rail or panel mounting. Fully compliant with IEC 60947-4-1 and IEC 60947-5-1 standards, with a robust mechanical and electrical life for rigorous industrial environments.

Stock Code: LC1D80P7

Online:

2 available
Price 348.47 £
incl. VAT, 20% priced individually

Product Features

Current Rating 80A AC-3 / 125A AC-1
Control Coil 230V AC 50/60Hz
Contact Configuration 3P (3NO) main contacts + 1NO+1NC auxiliary
Frame Size D-frame
Terminal Type Screw clamp terminals
Mounting Method DIN rail or panel mount
Auxiliary Capability Accepts additional LADN/LADF auxiliary blocks
Mechanical Life 4 million operations
Motor Rating Up to 45kW at 415–440V AC (AC-3), 55kW at 500V AC
Standards Compliance IEC 60947-4-1, IEC 60947-5-1, UL, CSA, CE, EAC, UKCA, Marine
Enclosure Protection IP20 (front face)
Ambient Temperature Range -40 to +60°C (derating above 60°C)
Short-Time Withstand Current 990A (1s) for power circuit

Brand

Schneider Electric
