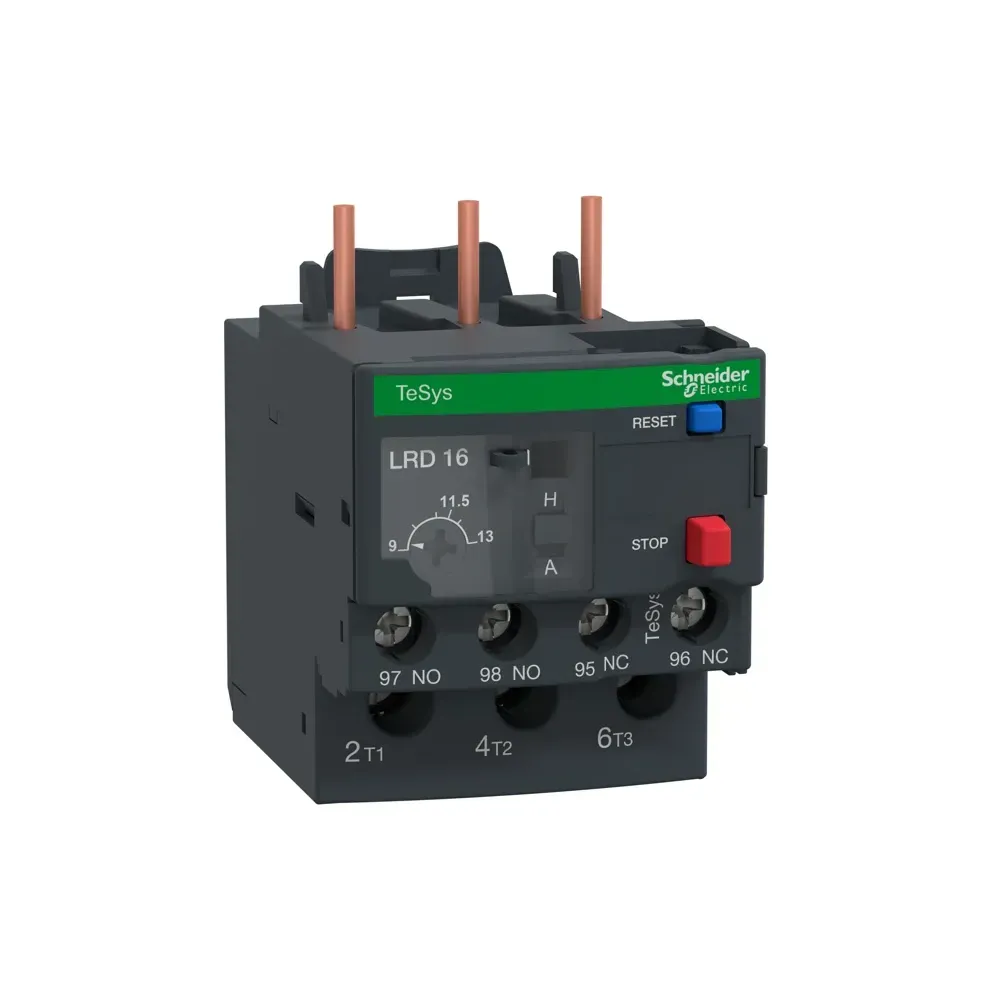

Schneider Electric 9-13A thermal overload relay Class 10A

Photo is representative

Schneider Electric LRD16 Thermal Overload Relay 9-13A Class 10A

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code LRD16
GTIN 3389110346824
Stock status: In stock

priced individually

Net price: £48.99

Gross price

£58.79

Schneider Electric LRD16 9–13 A thermal overload relay (LRD16) from the TeSys Deca range. Provides Class 10A motor protection with adjustable thermal protection (9…13 A) and phase-failure sensitivity. Rated for power circuits up to 690 V AC and fitted with 1NO+1NC auxiliary contacts. Manual reset via blue push-button (red = stop). Designed for direct mounting under TeSys contactors (LC1D12/LC1D18/LC1D25/LC1D32/LC1D38) and suitable for 0–400 Hz networks. Screw-clamp terminals, ambient compensation (-20…60 °C), and IEC 60947-4-1 compliance.

Specifications

Current Range

9-13A adjustable

Trip Class

Class 10A thermal protection

Operating Voltage

690V AC maximum

Auxiliary Contacts

1NO+1NC configuration

Reset Type

Manual reset (blue push-button)

Mounting

Direct mount under TeSys Deca contactors (LC1D12/LC1D18/LC1D25/LC1D32/LC1D38)
