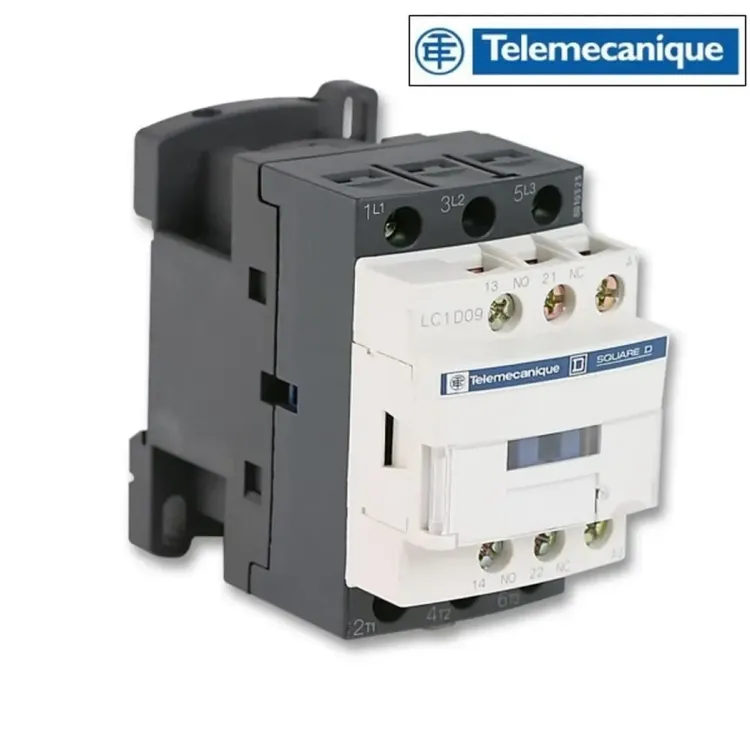

Photo is representative
Schneider TeSys D 9A 230V AC 3P Contactor - LC1D09P7
Schneider TeSys D 9A 230V AC 3P contactor (LC1D09P7), suitable for motor control, resistive load switching, and industrial automation applications. AC-3 rated 9A at 440V, supports motors up to 4kW at 400V (AC-3). Designed for DIN rail or panel mounting with screw clamp terminals. 3 normally open (3NO) main contacts, with integrated 1NO+1NC auxiliary contacts. Fully compliant with IEC 60947-4-1 for motor starters and control panels. Robust mechanical and electrical durability in a compact 45mm width frame.
Product Information
Product Features
Frequently Asked Questions
-
What motor starting applications is this contactor rated for?
Rated for AC-3 motor switching at 9A, suitable for DOL starting, star-delta configurations, and reversing duties up to 4kW at 400V AC.
-
Can auxiliary contacts be added to this contactor?
Yes, accepts up to 4 auxiliary contact blocks (front or side mounting), in addition to the integrated 1NO+1NC auxiliary contacts.
-
What coil voltage options are available?
The LC1D09P7 model is fitted with a 230V AC coil. Other TeSys D variants are available with 24V AC/DC, 110V AC, 400V AC, etc.
-
Is this contactor suitable for capacitor switching?
This contactor is rated for AC-1 resistive and AC-3 motor loads. For capacitor switching (AC-6b), verify specific application ratings.
