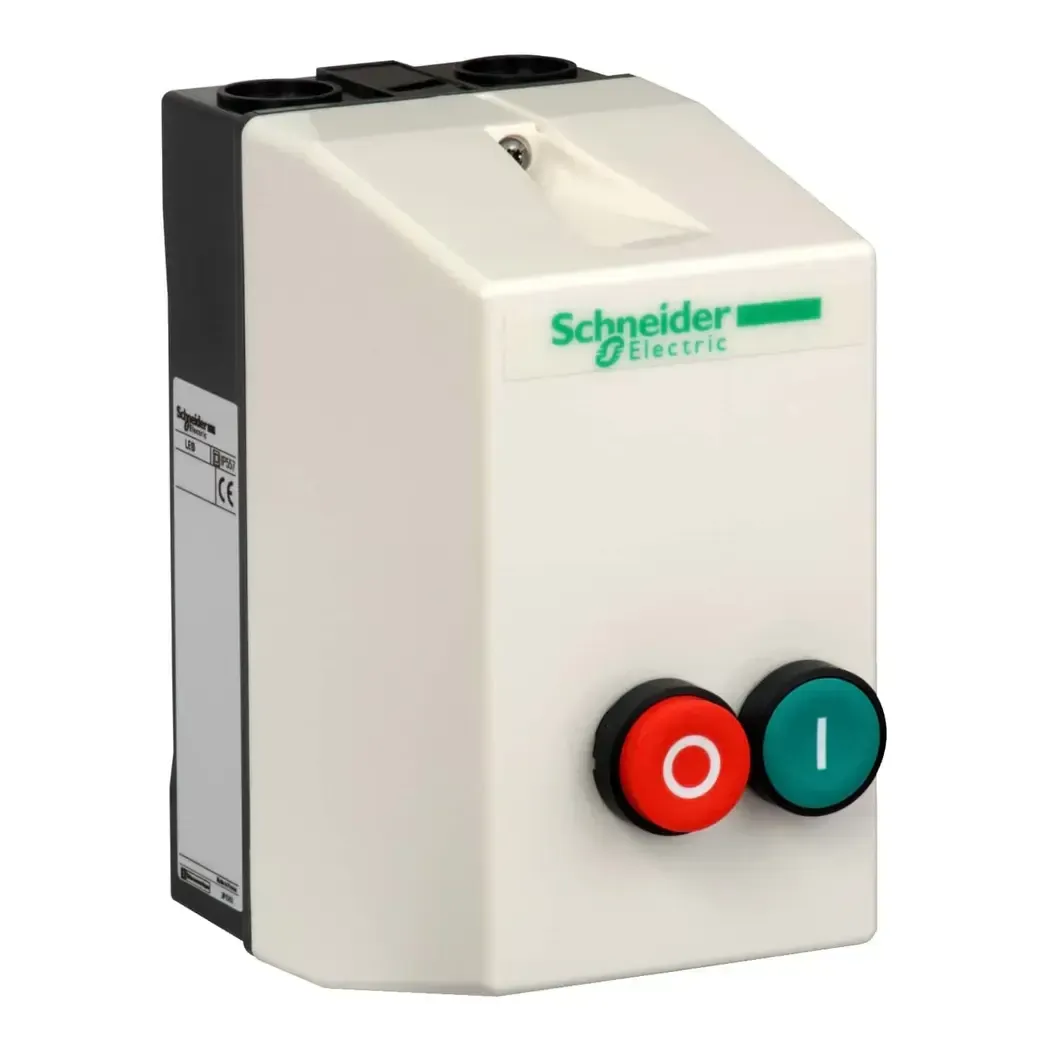

9A 230V Enclosed DOL Starter IP 55 LE1D09P7 Telemecanique

Name: 9A 230V Enclosed DOL Starter IP 55 LE1D09P7 Telemecanique
SKU: LE1D09P7
Availability: InStock

The 9A 230V Enclosed DOL Starter IP 55 LE1D09P7 Telemecanique is a standard Utilisation category AC-3 device. It includes a contactor with 9A rated operational current and can handle motor power up to 4 kW. The control circuit voltage is 230V AC, with push-button start (green) and push-button stop/reset (red).

Stock Code

LE1D09P7

Available

£74.29

incl. VATpriced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

Control Circuit Voltage

230 V AC 50/60 Hz
Control Type

Push-button start (green), Push-button stop/reset (red)
Motor Power

4 kW at 380/400 V AC 50/60 Hz, 4 kW at 415 V AC 50/60 Hz, 4 kW at 440 V AC 50/60 Hz, 2.2 kW at 220/230 V AC 50/60 Hz, 5.5 kW at 500 V AC 50/60 Hz, 5.5 kW at 660/690 V AC 50/60 Hz
Operational Current

9 A
Product Type

Enclosed DOL Starter
Range

TeSys
Sku

LE1D09P7
Thermal Current

9 A
Utilisation Category

AC-3
