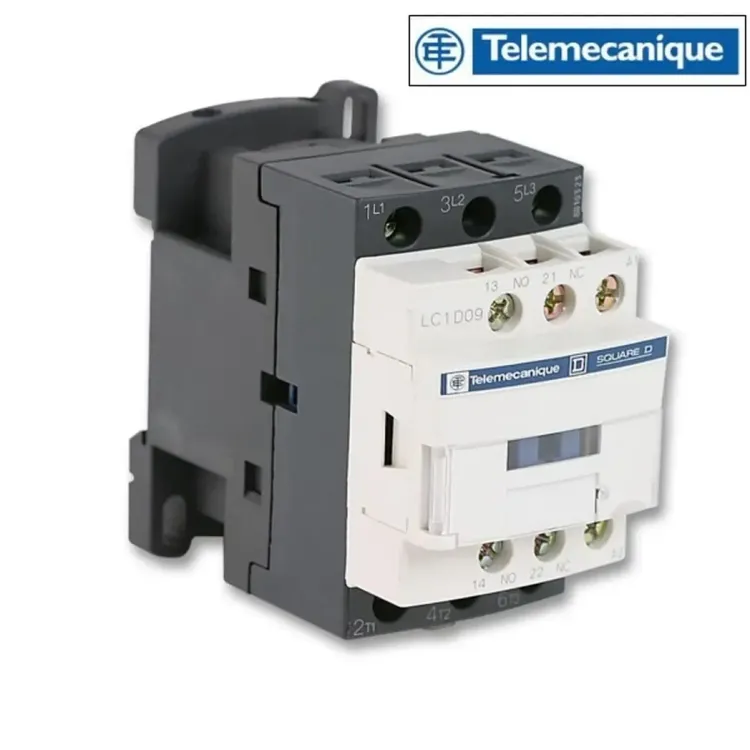

Schneider TeSys D 9A 400V AC contactor front view

Photo is representative

Schneider TeSys D 9A 400V AC 3P Contactor - LC1D09V7

Schneider TeSys D 9A 400V AC 3P contactor (LC1D09V7), suitable for motor control and resistive load applications in industrial panels. Rated 9A AC-3 at up to 440V for direct-on-line (DOL) and reversing motor starting, as well as AC-4 and AC-1 duties. AC-powered 400V coil with screw clamp terminals for secure wiring. Compact 45mm width design, DIN rail or panel mounting. IEC 60947-4-1 compliant with built-in 1NO+1NC auxiliary contacts for enhanced control circuit integration.

Product Information

Stock Code LC1D09V7
MPN LC1D09V7
GTIN 3389110349122
Stock status: In stock
Price: £40.34
incl. VAT, 20% priced individually

Original price: £44.82

10% off - Save £4.48

Product Features
Current Rating 9A AC-3 / 25A AC-1
Control Coil 400V AC 50/60Hz
Contact Configuration 3P (3NO) + 1NO+1NC auxiliary
Frame Size D-frame
Terminal Type Screw clamp terminals
Mounting Method 35mm DIN rail or Panel mount
Auxiliary Capability Accepts up to 4 auxiliary blocks
Mechanical Life 15 million operations
Standards Compliance IEC 60947-4-1, IEC 60947-5-1, CSA, UL, EN 60947-4-1, UKCA, EAC

Brand

Schneider Electric
