Photo is representative

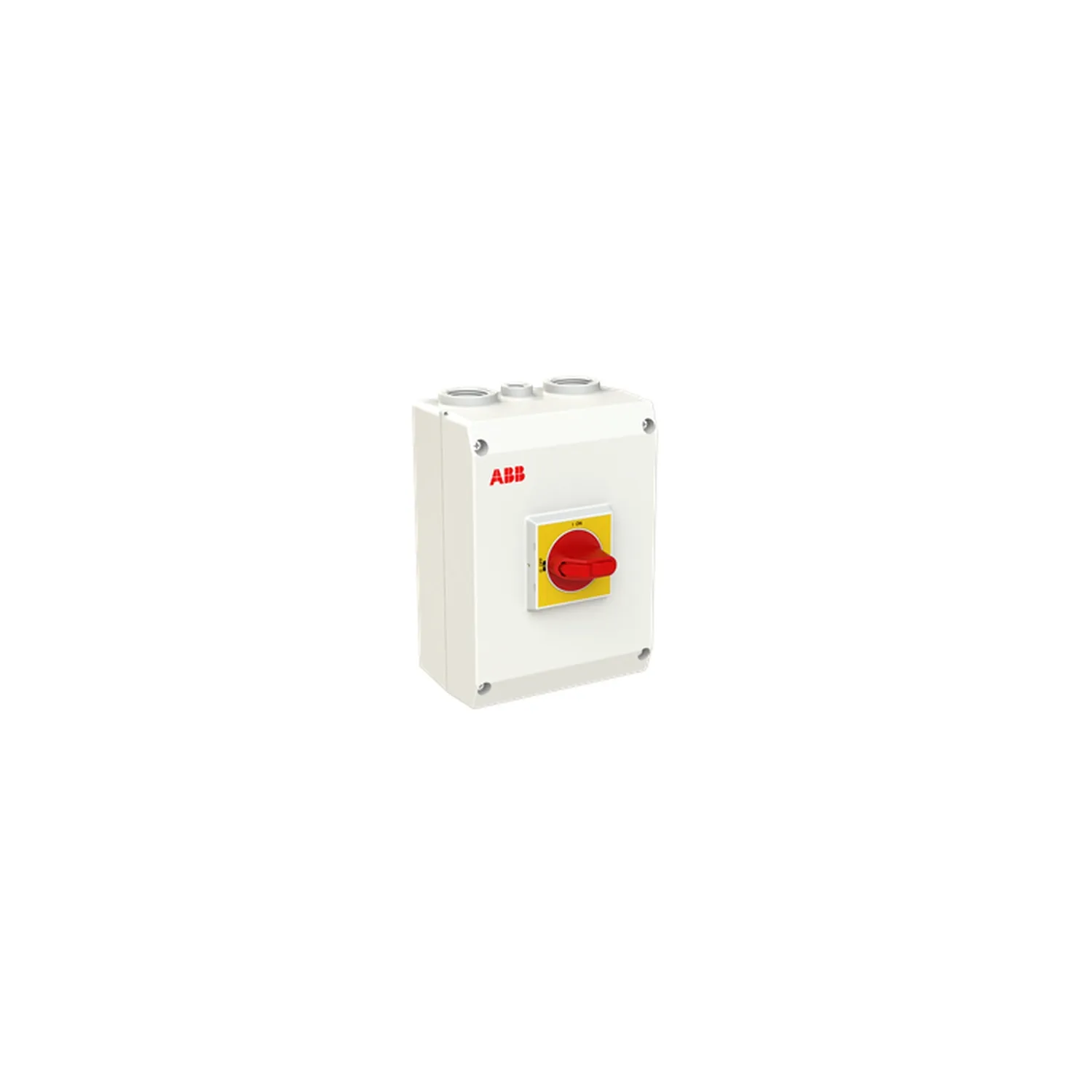

ABB 45A 4P Enclosed Switch Disconnector IP65 - Plastic Enclosure
Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.
Product Information
Stock Code
OTP45BA4M
GTIN
—
Stock status:
Out of stock
priced individually
More arriving soon
Net price: £94.16
Gross price
£112.99
ABB OTP Series enclosed switch disconnector for isolation and switching under load in industrial and commercial applications.
- Electrical ratings: Rated operational voltage 750V, rated current 45A AC-23A (415V), 63A AC-22A (415V). 4-pole configuration with fixed and switchable neutral.
- Physical construction: Plastic enclosure (glass reinforced polycarbonate, UV protected) with IP65 rating and IK08 impact resistance. Red/yellow selector handle padlockable with up to 3 padlocks. Defeatable cover interlock.
- Terminals: Screw clamp connections for 1.5-35mm² cables with 2 PE terminals. Tightening torque 2 N·m.
- Compliance: Certified to IEC 60947-1 and IEC 60947-3. CE marked. Rated short-time withstand current 1kA for 1s.
