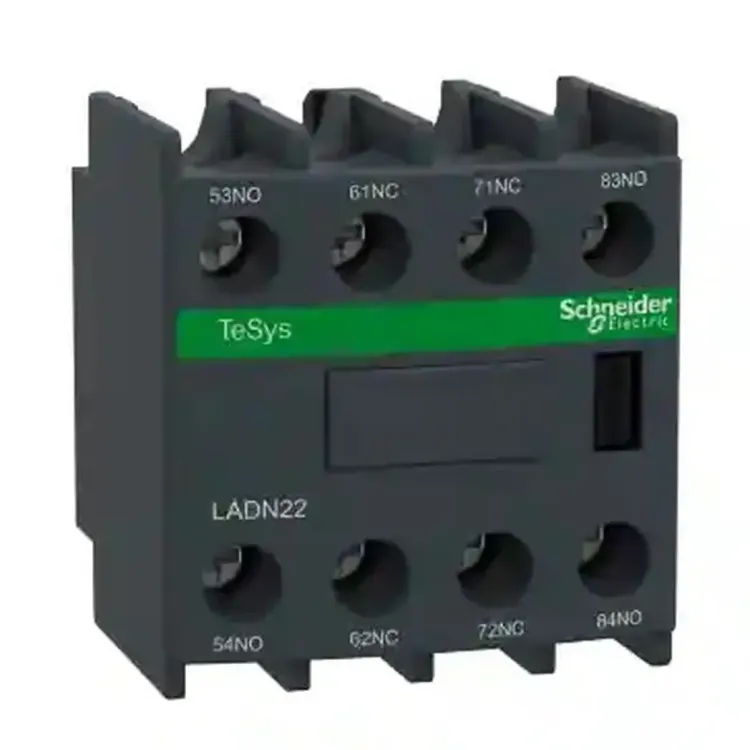

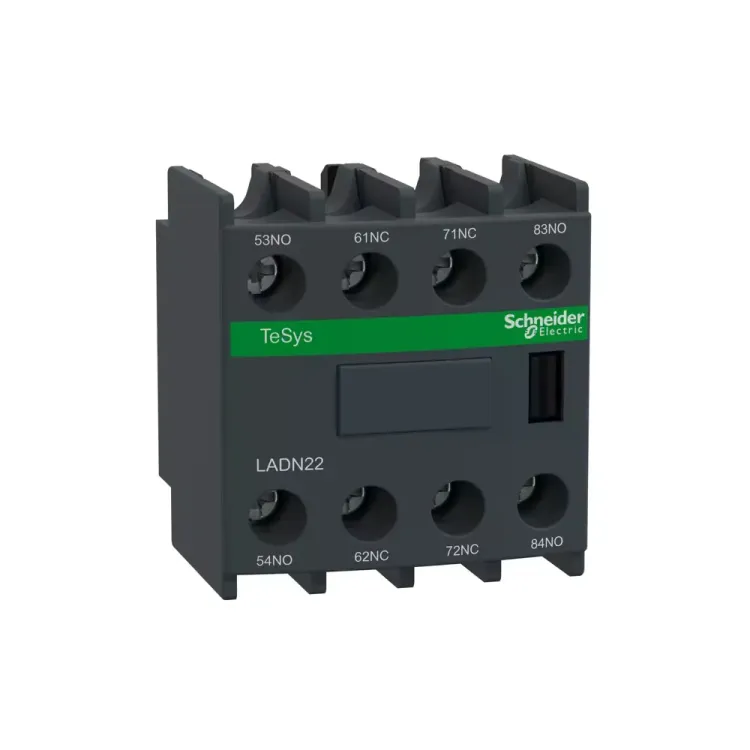

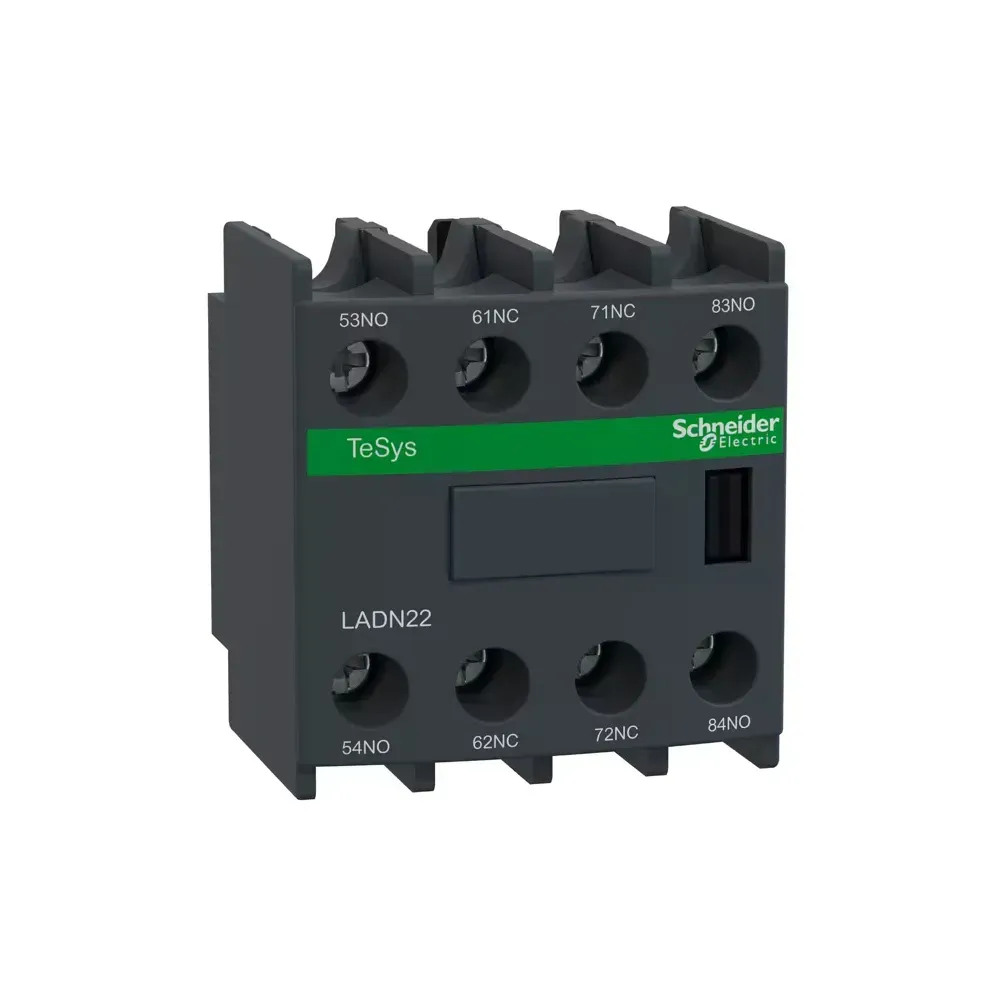

Schneider LADN22 2NO+2NC auxiliary contact block front view

Photo is representative

Schneider 2NO+2NC Auxiliary Contact Block - LADN22

Schneider LADN22 auxiliary contact block provides 2 normally open (NO) and 2 normally closed (NC) contacts for use with TeSys Deca and TeSys D/F contactors. Front mounting with screw clamp terminals allows quick installation on compatible LC1D, LC1F, CAD and Deca contactors. Rated for operational voltage up to 690V AC and 10A thermal current, the LADN22 meets IEC 60947-5-1 and other international standards, offering reliable signaling and control in industrial automation panels.

Product Information

Stock Code LADN22
MPN —
GTIN —
Stock status: 8 available
More arriving soon
Price: £20.63
incl. VAT, 20% priced individually

Original price: £22.93

10% off - Save £2.29

Product Features
Contact Configuration 2NO+2NC contacts
Current Rating 10A conventional thermal, up to 6A (AC-15) at 120V AC
Operational Voltage 690V AC (rated), 690V insulation (IEC 60947-5-1)
Mounting Method Front mounting on TeSys D, Deca, LC1D, LC1F, CAD, CR1F
Terminal Type Screw clamp terminals (1–4 mm² cables)
Mechanical Life 30 million operations
Standards Compliance IEC/EN 60947-5-1, UL, CSA, CCC, EAC, UKCA

Brand

Schneider Electric
