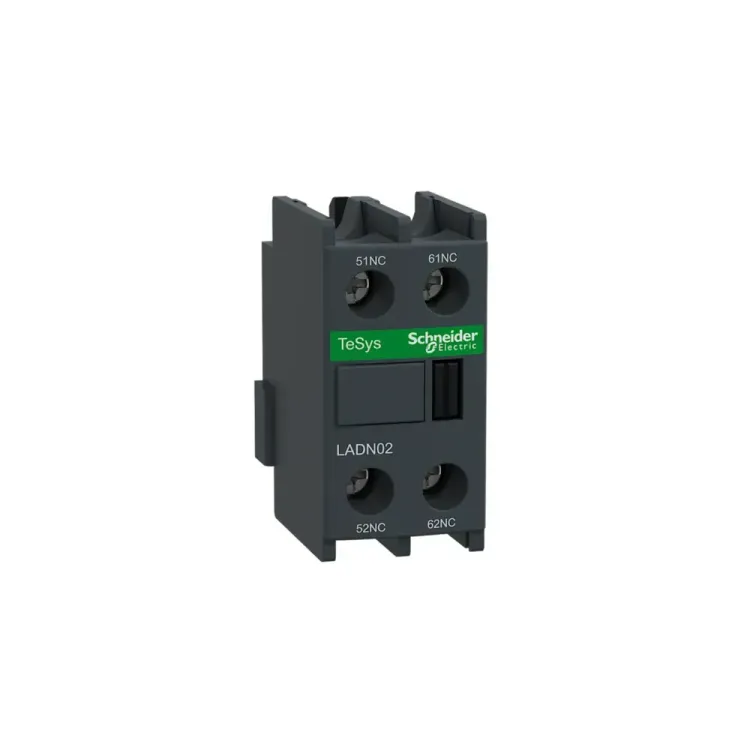

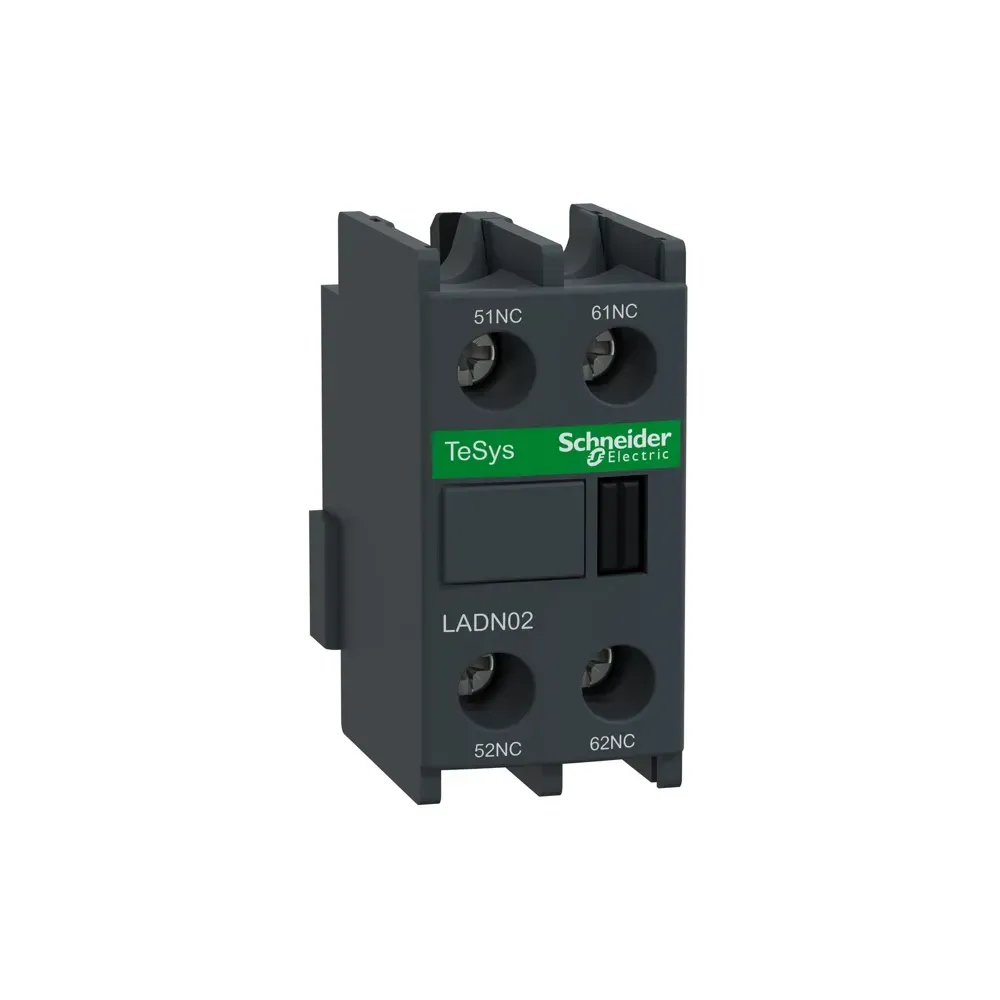

Schneider LADN02 2NC auxiliary contact block front view

Photo is representative

Schneider 2NC Auxiliary Contact Block - LADN02

Schneider 2NC auxiliary contact block (LADN02) for TeSys Deca series, features two normally closed (NC) contacts with front mounting and screw clamp terminals. Designed for instant signaling and logic extension on TeSys D and F contactors, supporting operational voltages up to 690V AC and rated for control circuit currents up to 6A. Offers robust construction, reliable operation, and conforms to IEC 60947-5-1 for industrial control panels. Mechanical durability rated at 30 million operations for long service life in harsh environments.

Product Information

Stock Code LADN02
MPN LADN02
GTIN
Stock status: 7 available
Price: £14.87
incl. VAT, 20% priced individually

Product Features

Contact Configuration 2NC contacts
Current Rating 6A at 120V AC-15, 1.04A at 690V AC-15
Rated Operational Voltage 690V AC 25...400 Hz
Mounting Method Front mounting on contactor
Terminal Type Screw clamp terminals (1–4 mm²)
Mechanical Life 30 million operations
Standards Compliance IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1
Compatibility TeSys Deca LC1D/CAD, TeSys D, TeSys F series contactors
Protection Level IP20
Ambient Temperature Range -5…60°C in operation

Brand

Schneider Electric
