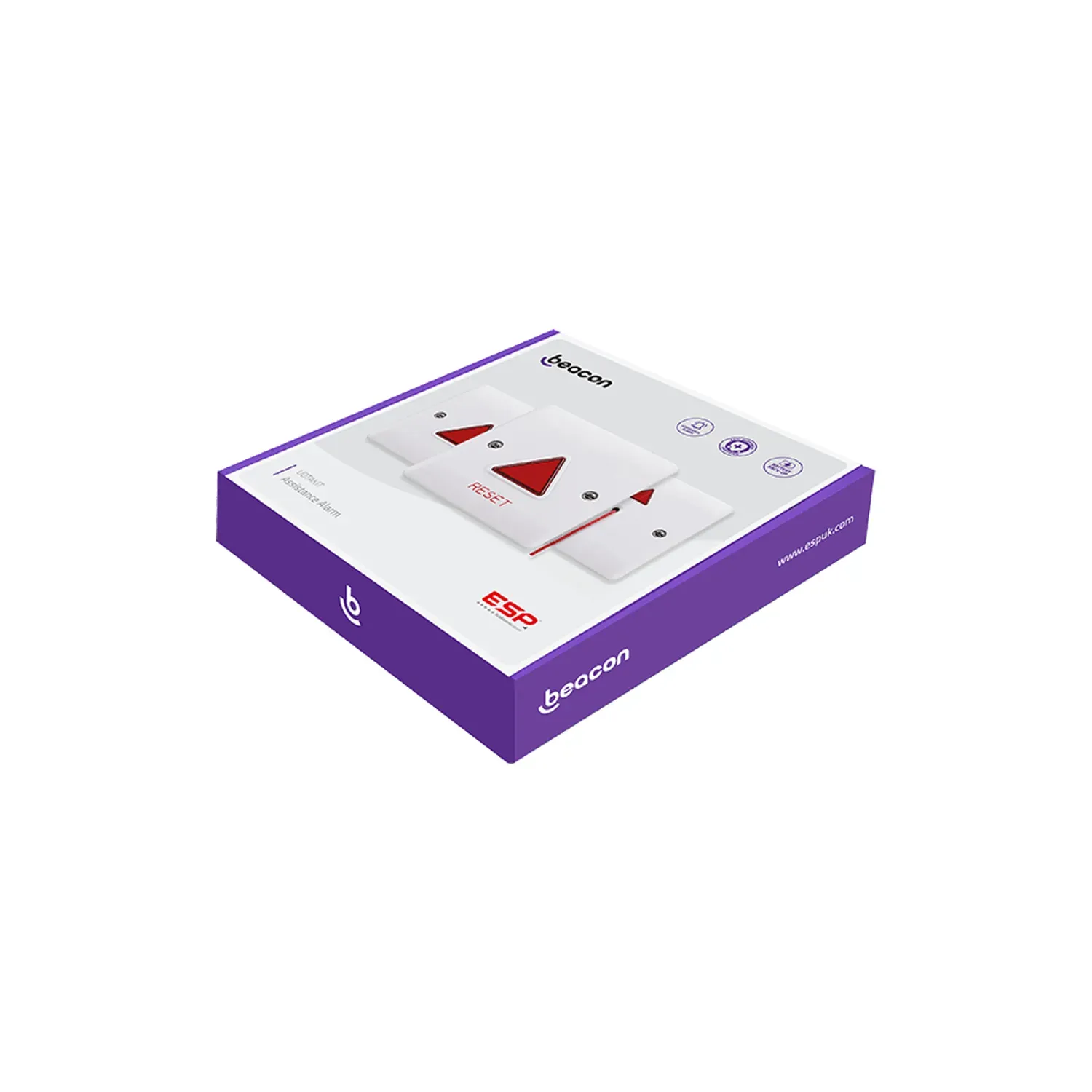

Beacon UDTAKIT Disabled Toilet Assistance Alarm Kit 12V DC White

Photo is representative

Beacon UDTAKIT Disabled Toilet Assistance Alarm Kit 12V DC White

Delivery to your region may not be available — you can still add to cart and confirm your address at checkout.

Product Information

Stock Code UDTAKIT
GTIN
Stock status: 9 in stock

priced individually

Net price: £67.91

Gross price

£81.49

Three-module disabled toilet assistance alarm kit from Beacon. Includes indication module, pull cord module and reset module (UDTAREM). Designed for surface or flush mounting — surface box included.

  • 3m pull cord with 2 triangular bangles, anti-ligature rated
  • Red LED indication when in alarm state, audible buzzer >80dB
  • Anti-microbial ABS housing, single gang plate size
  • 12V DC supply, IP20, operating range -10 to +40°C
  • 2-year warranty
Specifications

Operating Voltage

12V DC

Power Consumption (Indication Module)

0.3W

Power Consumption (Reset Module)

0.9W

Output Rating

12V 500mA

Number of Outputs

2

Input Type

Ground and 2 live circuits — X1 and X2

Activation Type

Energise with a Normally Open Clean Contact

Output Type

1 Switched Live sharing common ground; separate output for additional sounders

Battery Backup

A23 Battery

Buzzer Sound Level

>80dB

Pull Cord Length

3m (including 2 triangular bangles)

Maximum Cable Size

1.5mm²

Ingress Protection

IP20

Operating Temperature

-10 to +40°C

Dimensions

87 x 87 x 41mm

Plate Size

Single Gang

Colour

White

Materials

Anti-Microbial ABS

Mounting

Surface or Flush (Surface Box Included)

Anti-Ligature

Yes

Warranty

2 years
