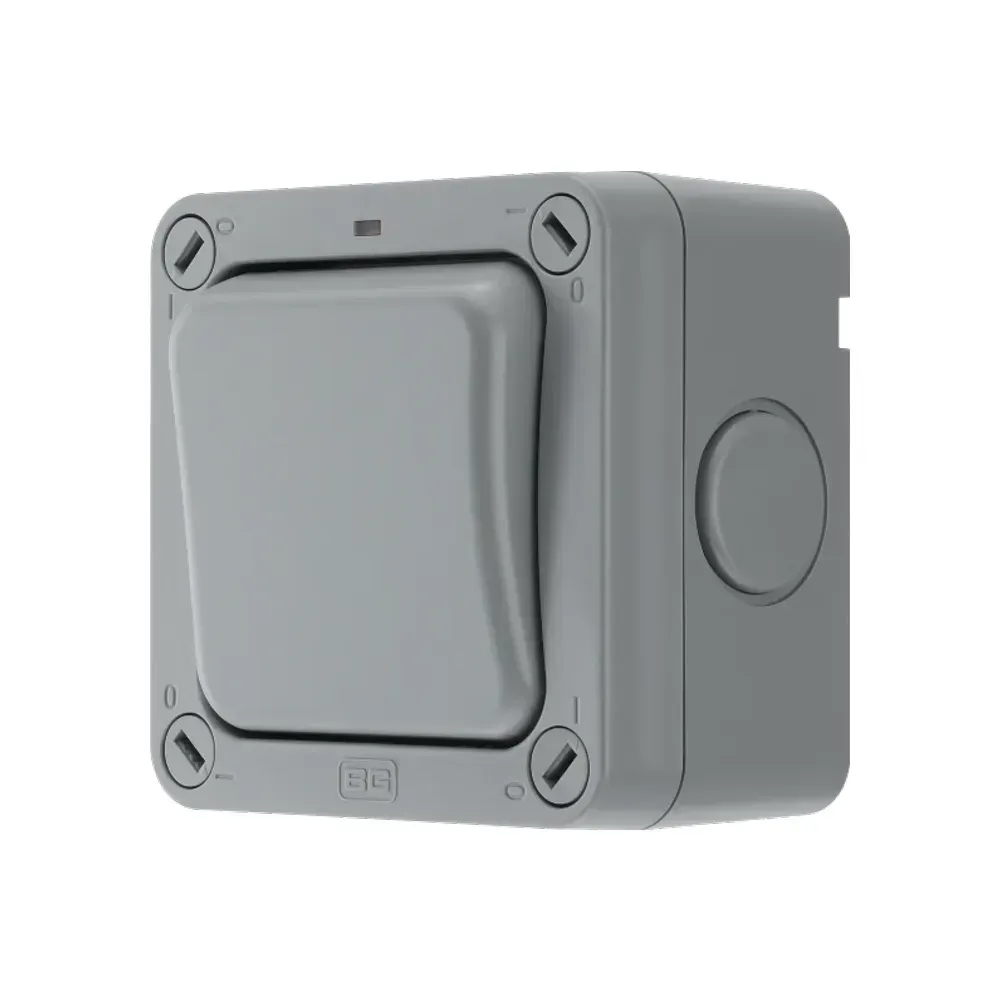

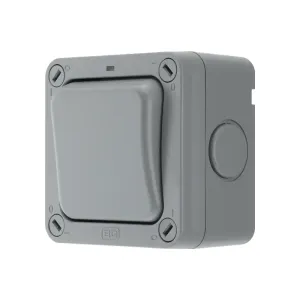

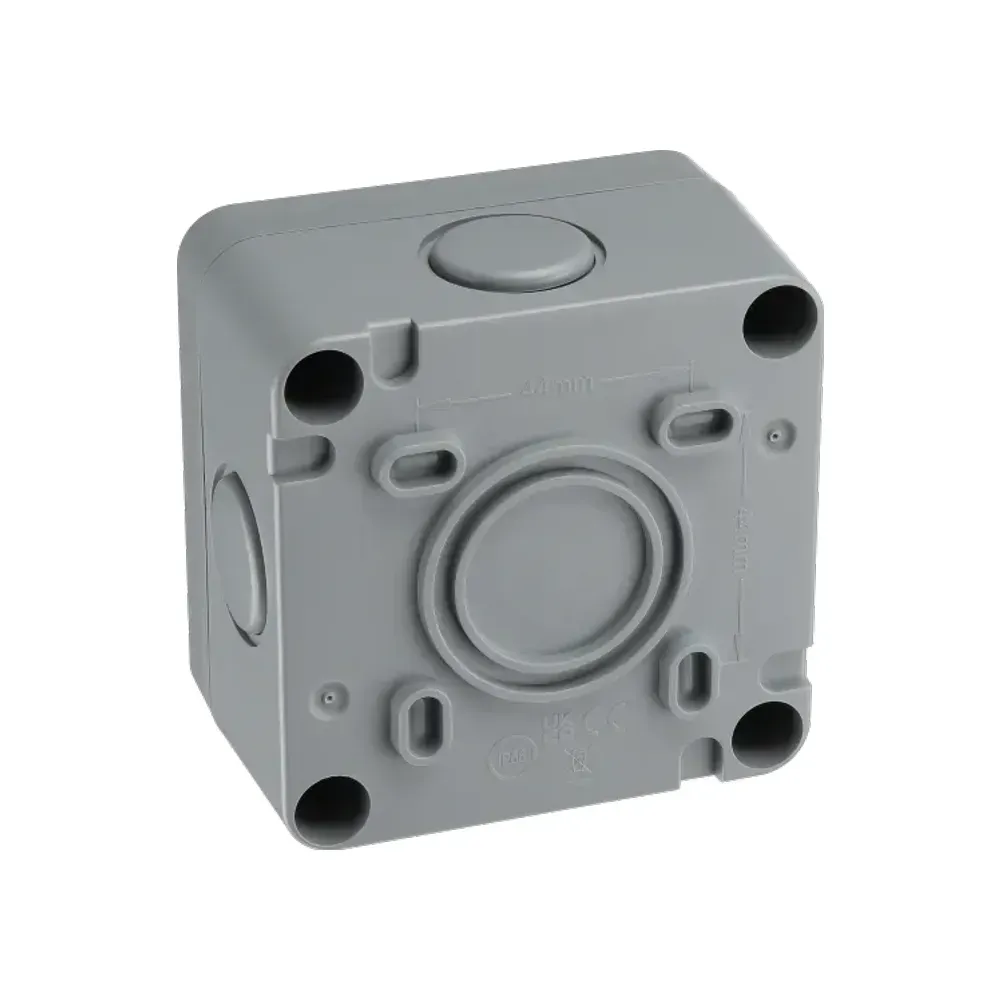

BG Waterproof IP66 1 Gang 2 Way Outdoor Switch
The BG Waterproof 1G 2-Way Switch (WP12-02) is a robust IP66-rated outdoor wall switch designed for demanding environments. It features an LED indicator that can be wired to illuminate in either the ON or OFF position, making it ideal for outdoor and commercial installations requiring safe, weather-resistant operation.
Features include:
- Weather and dust protection – IP66 rated for outdoor use
- 1 Gang 2-Way switch allows flexible control from two locations
- LED indicator can be wired to illuminate when ON or OFF
- Backed-out captive screws for quick and easy installation
- Clearly marked in-line terminals for neat wiring
- Durable grey polycarbonate housing
- Earth terminal in mounting box
- No fixing screw caps required – 150° fast-fix rotation
- Suitable for 220–240V operation, 20AX inductive rated
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Sku
WP12-02
-
Way
2
-
Gang
1
-
Color
Grey
-
IP Rating
IP66
-
Terminals
Clearly Marked Terminals
-
Dimensions
Height: 91mm, Width: 91mm, Depth: 67mm
-
Rated Amps
20
-
Contact Gap
3.0mm Minimum
-
Cable Entries
4 Sides with Removable Blanking Caps
-
Terminal Capacity
4x 1.0mm, 4x 1.5mm, 2x 2.5mm, 1x 4.0mm
-
Outdoor Weatherproof Switch
Can be Wired to Indicate On or Off Status
