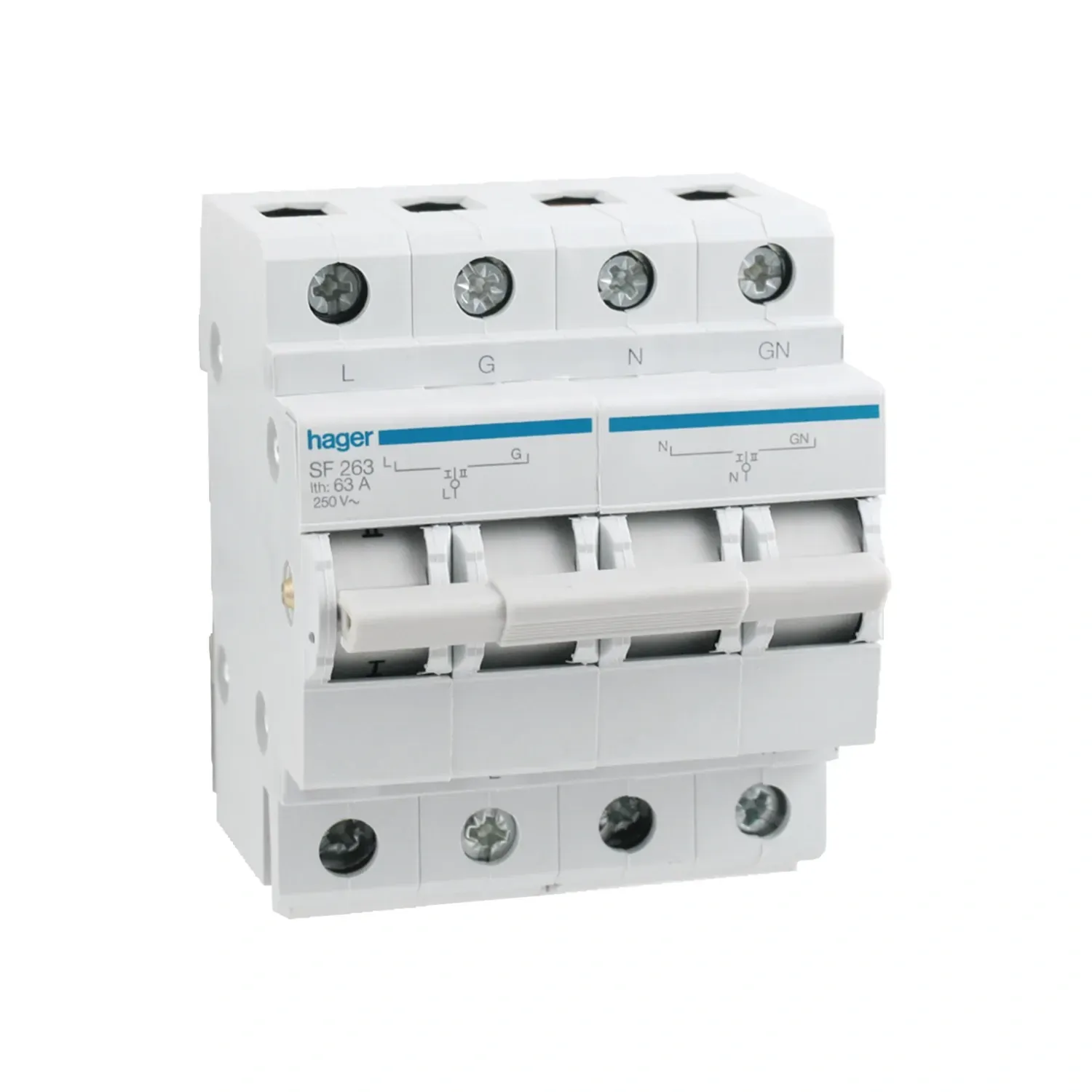

Hager 63A 2 pole changeover switch DIN rail mounted front view detail

Photo is representative

Hager 63A 2 Pole Changeover Switch, DIN Rail Mounted, 2P

The Hager 63A 2 Pole Changeover Switch is engineered for safe and efficient switching between two power sources. Designed for DIN rail mounting, this 2P changeover switch offers reliable isolation with a 63A rated current and robust IP20 protection. It features simple installation, high mechanical endurance with up to 100,000 operations, and is rated for demanding professional environments. Ideal for modular low-voltage panels, it ensures dependable performance and safety for electrical systems.

Product Information

Stock Code SF263
MPN
GTIN
Stock status: In stock
More arriving soon
Price: £73.71
incl. VAT, 20% priced individually

Product Features

Rated Current 63A
Number of Poles 2 (2P)
Mounting Type DIN Rail
Rated Operational Voltage (Ue) 230V AC
Rated Insulation Voltage (Ui) 500V
Short-Circuit Rating (Icc) 6 kA (with gl-gG fuses)
Nominal Tightening Torque 2.90 Nm
Ingress Protection IP20
Mechanical Endurance 100,000 operations
Module Width 4 modules (71.5 mm)

Applications & Uses

Power Source Switching

Used in applications requiring manual transfer between two power sources, such as backup generators or isolated supply networks for critical loads.

Modular Distribution Panels

Optimal for industrial and commercial modular panels where dependable source isolation and power transfer are essential.

Installation Guidelines

DIN Rail Mounting

Ensure firm engagement on standard DIN rail. Maintain clearance for heat dissipation and verify secure terminal tightening at 2.90 Nm.

Conductor Termination

Use flexible cables up to 16 mm² or rigid up to 25 mm². Check all connections to meet tightening requirements for reliable and safe operation.

Standards & Compliance

  • IEC Standards Built to comply with IEC standards for low-voltage switchgear, ensuring safety and reliability for professional installations.
  • IP20 Protection Meets IP20 rating, offering protection against large solid objects and safe integration within enclosed equipment or distribution boards.

Frequently Asked Questions

  • What is the rated current and voltage for the Hager 63A 2 pole changeover switch?

    The switch is rated for 63A current and operates at 230V AC, making it suitable for residential and commercial switchgear applications requiring robust power handling.

  • How is the Hager 63A 2P changeover switch installed?

    This changeover switch is designed for quick DIN rail mounting in modular distribution boards, allowing efficient installation by professional electricians with standard tools.

  • What are the endurance ratings for this changeover switch?

    The switch offers mechanical endurance of up to 100,000 operations and electrical durability of 5,000 cycles at nominal load in AC-21 conditions.

  • What conductor sizes can be connected to this device?

    The switch accepts flexible conductors up to 16 mm² and rigid conductors up to 25 mm² for versatile wiring options in professional installations.

  • What level of ingress protection does the device offer?

    The Hager 63A 2 pole changeover switch provides IP20 ingress protection, suitable for installation in enclosed panel boards or switchgear assemblies.
