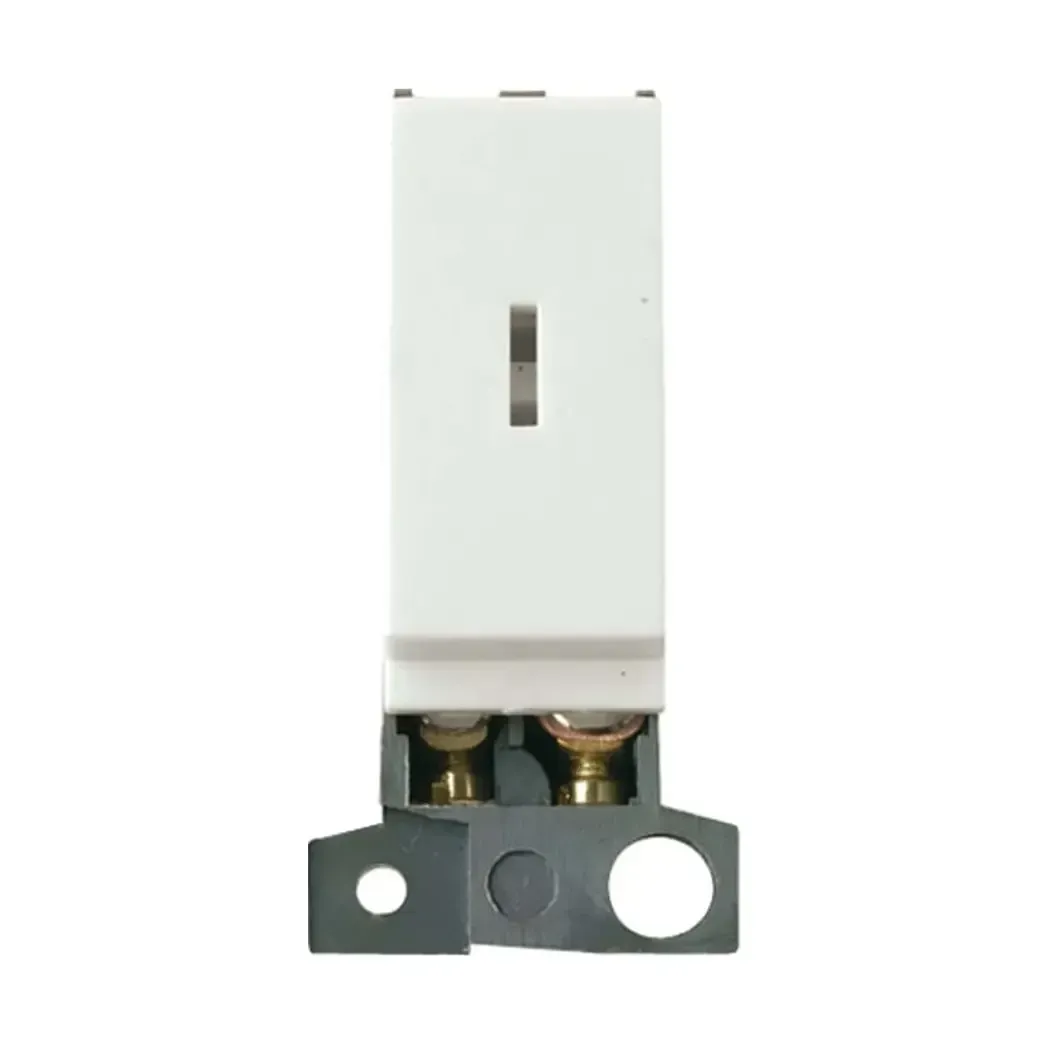

Click 2 Way 10A Keyswitch Mini-Module White Md003wh
The Click 2 Way 10A Keyswitch Mini-Module in White is designed for easy installation and optimal performance. With a 10 Amp current rating, this mini module is perfect for various indoor applications. It comes in a sleek white finish and compact dimensions.
Stock Code
Available
£5.25
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Aperture
16mm (W) x 31.5mm (H)
-
Back Box Depth
Dependent On Plate Used
-
Dimensions
25mm (W) x 52.5mm (H) x 20mm (D)
-
Finish
Click White
-
Load Rating
10AX (Suitable For Inductive Loads)
-
Materials
Cover & Rocker Switch: Urea, Rear Housing: Nylon, Terminals: Brass, Terminal Screws: Steel & Yellow Passivated, Contacts: Silver on-lay Copper / Brass, Internal Busbars: Formed Pressed Brass
-
Maximum Voltage
250V 50Hz
-
Operational Temperature
-5 C to +40 C
-
Sku
MD003WH
-
Standards
BS EN 60669-1:1999 +A1:2002 +A2:2008
-
Terminal Capacity
4 x 1.5mm2 or 2 x 2.5mm2
-
Terminal Size
3.5mm
-
Termination Type
Screw Terminal
-
Torque
0.5Nm
-
Warranty
10 Years
