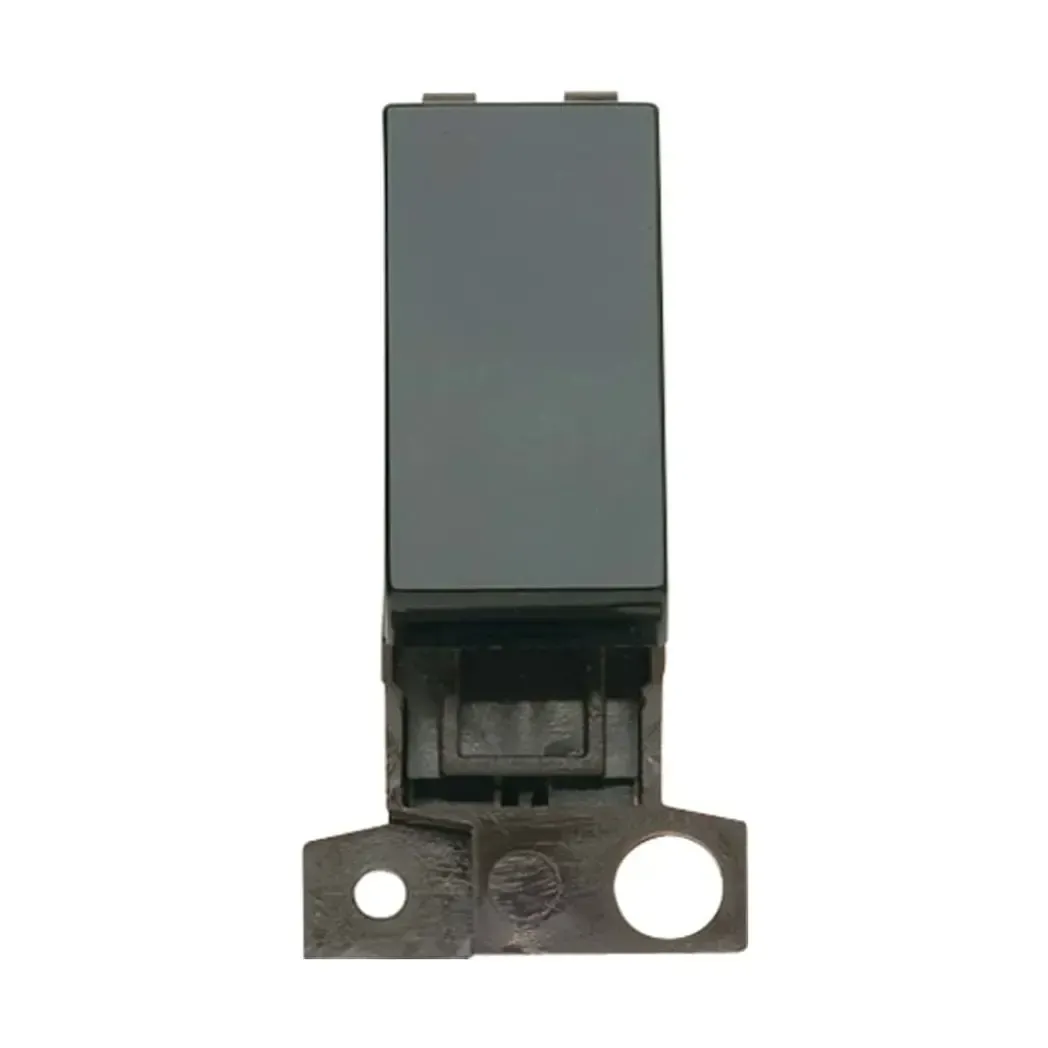

Click Black 1 Gang 10A Intermediate Mechanism MD028BK
The Click Black 1 Gang 10A Intermediate Mechanism MD028BK is a reliable and durable intermediate switch suitable for inductive loads. With dimensions of 25mm (W) x 53mm (H) x 20mm (D), this mechanism features a black finish, screw terminals with a terminal capacity of 4 x 1.5mm2 or 2 x 2.5mm2, and a 10-year warranty.
Stock Code
Available
£3.24
Depending on your delivery address, VAT may vary at Checkout.
Product Features
-
Back Box Depth
Dependent On Plate Used
-
Finish
Black
-
Load Rating
10AX (Suitable For Inductive Loads)
-
Materials
Rocker Switch: Urea, Rear Housing: Nylon, Terminals: Brass, Terminal Screws: Steel & Yellow Passivated, Contacts: Silver on-lay Copper / Brass, Internal Busbars: Formed Pressed Brass
-
Maximum Voltage
250V 50Hz
-
Operational Temperature
-5 C to +40 C
-
Sku
MD028BK
-
Standards
BS EN 60669-1:1999 +A1:2002 +A2:2008
-
Terminal Capacity
4 x 1.5mm2 or 2 x 2.5mm2
-
Terminal Size
3.5mm
-
Termination Type
Screw Terminal
-
Torque
0.5Nm
-
Warranty
10 Years
