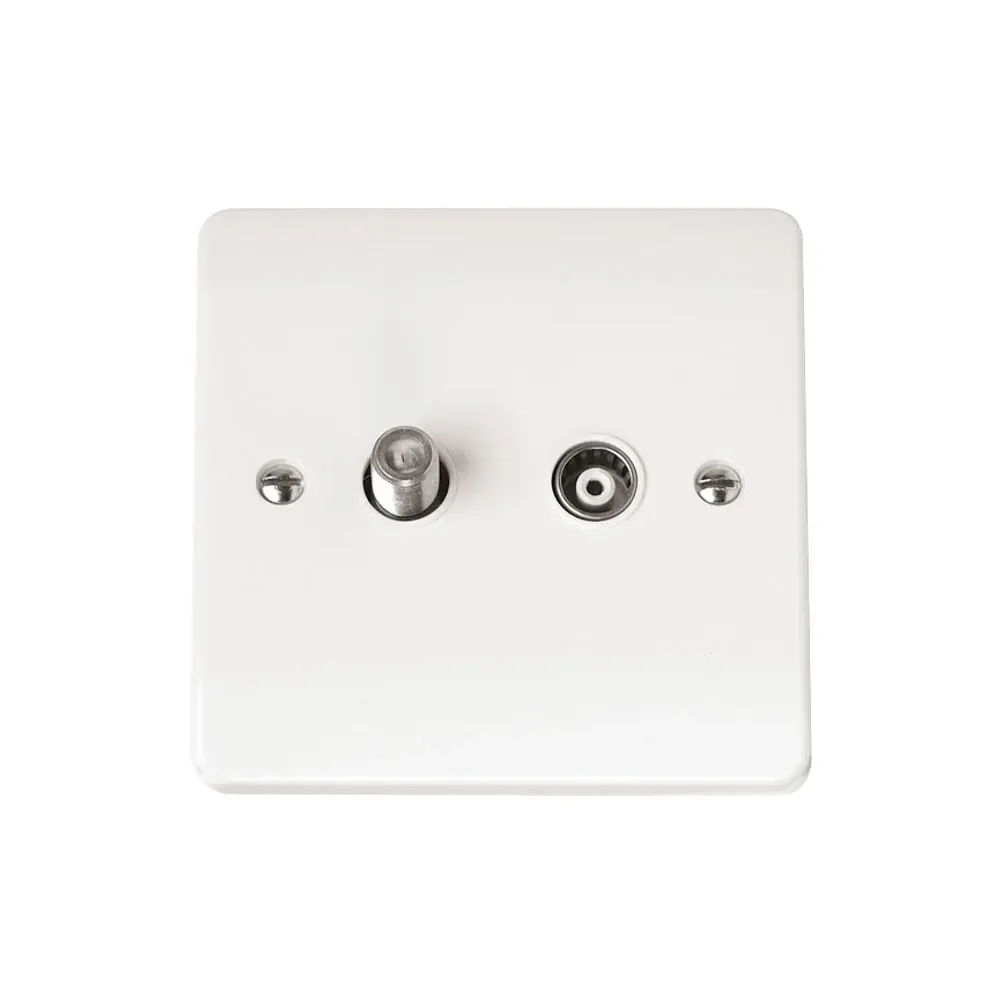

Click CMA157 Isolated Satellite Coaxial Outlet MODE - White
Isolated satellite and coaxial dual outlet with signal interference filtering for professional AV installations. 16mm minimum backbox depth with screw terminals and brass connections. UKCA marked with antimicrobial protection killing 99.9% MRSA and E-Coli. 25-year warranty on plate construction with IP20 rating for domestic use. Polar white urea formaldehyde finish with rounded profile design. Operational temperature range -5°C to +40°C with 60.3mm fixing centres.
Online:
Product Features
| Outlet Configuration | Dual - Isolated Satellite & Isolated Coaxial |
|---|---|
| Signal Isolation | 1-way signal filtering reduces interference |
| Minimum Backbox Depth | 16mm |
| Terminal Type | Screw terminals - brass construction |
| Plate Dimensions | 86 x 86 x 9.5mm (W x H x D) |
| Fixing Centres | 60.3mm horizontal spacing |
| Ingress Protection | IP20 rating |
| Operating Temperature | -5°C to +40°C |
| Compliance Marking | UKCA marked |
| Antimicrobial Rating | 99.9% kill rate - MRSA, E-Coli, Salmonella |
| Antiviral Properties | 99.9% enveloped, 92% non-enveloped viruses |
| Warranty Period | 25 years plate, 2 years electronics |
| Front Plate Material | Urea formaldehyde - polar white |
| Earth Connection | Mild steel earth plate |
Installation Specifications
Terminal Access
Brass screw terminals with 60.3mm fixing centres. Standard 3.5mm screwdriver required for cable termination with 0.6-0.8Nm torque specification.
Backbox Compatibility
16mm minimum depth accommodates shallow installations. Compatible with standard 25mm and 35mm metal or plastic backboxes for flush mounting.
Signal Applications
Isolation Function
1-way signal filtering reduces interference in communal aerial systems. Prevents signal reflections and maintains system integrity in multi-dwelling installations.
Dual Connection
Separate satellite and coaxial outlets enable independent terrestrial TV and satellite feeds. Ideal for rooms requiring both Freeview and Sky services.
Professional AV
Antimicrobial properties suitable for commercial environments. 25-year warranty provides long-term reliability for office and hospitality installations.
Frequently Asked Questions
-
What backbox depth is required for CMA157 installation?
Minimum 16mm backbox depth required. Standard 25mm or 35mm backboxes provide adequate clearance for cable connections and terminal access.
-
Can I use this outlet for Sky Q satellite extensions?
No - isolated outlets enable 1-way signal only. For Sky Q 2-way satellite extensions, use non-isolated outlets to maintain signal communication between LNB and receivers.
-
What cable termination method does this outlet use?
Screw terminals with brass construction accept standard coaxial and satellite cables. Use 3.5mm flat blade screwdriver with 0.6-0.8Nm torque for secure connections.
-
Is CMA157 suitable for communal aerial systems?
Yes - isolated design prevents signal interference in communal systems. Dual outlets accommodate both terrestrial TV and satellite feeds in apartment blocks.
-
Does this outlet meet UK building regulations?
UKCA marked confirming compliance with UK standards. Suitable for domestic installations with IP20 rating for indoor use in dry locations only.
