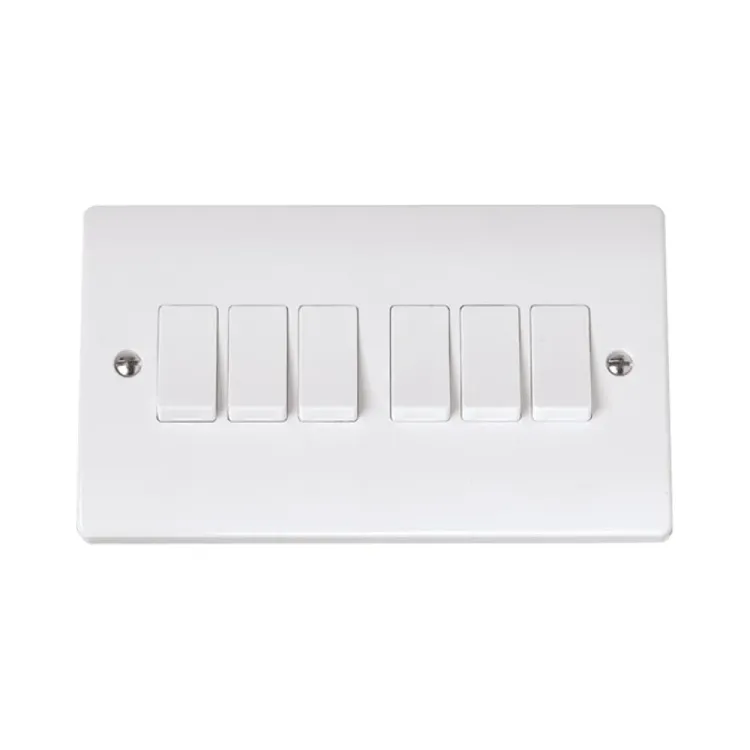

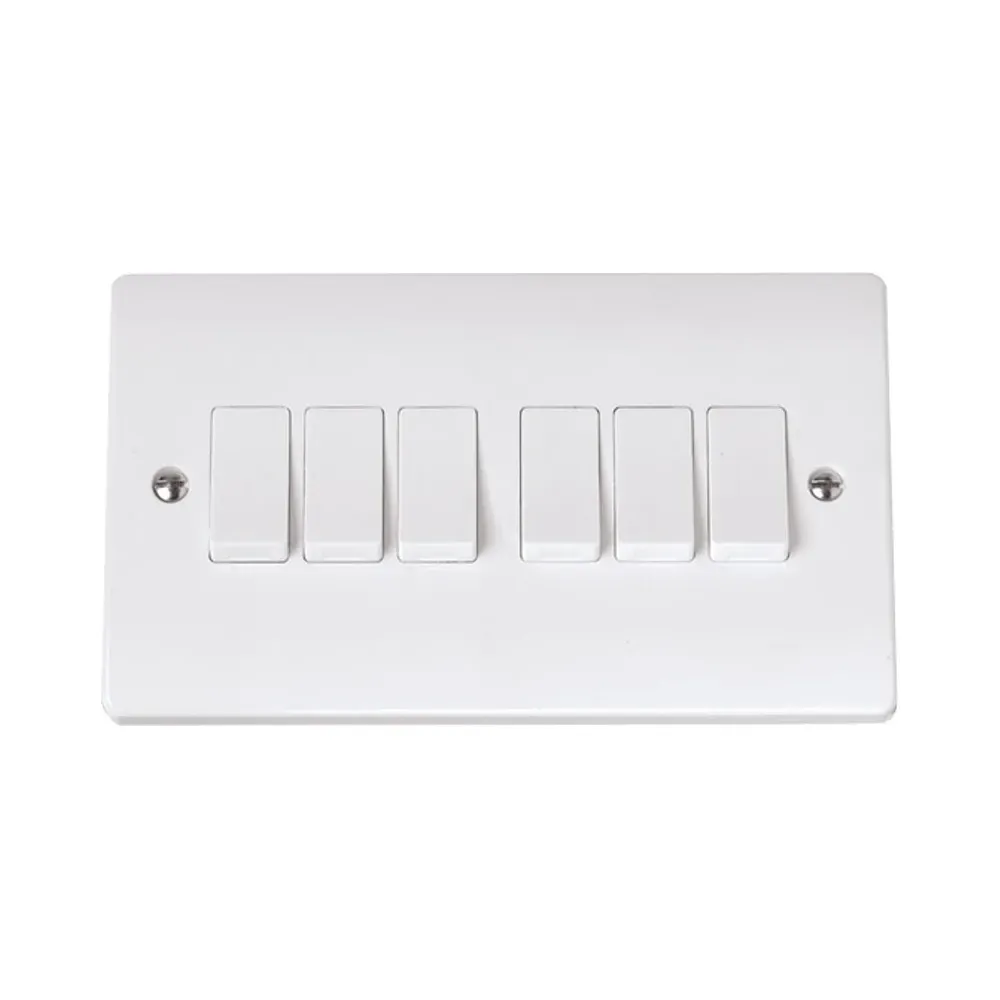

Click Curva 10A 6 gang 2 way switch white CCA105 front view

Photo is representative

Click Curva 10A Switch 6 Gang 2 Way, Polar White

The Click Curva 10A 6 gang 2 way switch delivers professional-grade electrical control for multiple lighting circuits with inductive load capability and antimicrobial protection. This premium quality switch features robust urea construction with brass terminals and precision-formed press brass mechanism for reliable long-term operation. Designed specifically for professional electricians managing complex multi-zone lighting installations. The 146mm wide format accommodates standard back boxes with 25-47mm depth flexibility for versatile installation scenarios. Perfect for commercial premises, large residential properties, and hospitality venues requiring comprehensive lighting control solutions.

Product Information

Stock Code CCA105
MPN
GTIN
Stock status: In stock
Price: £13.1
incl. VAT, 20% priced individually

Product Features

Product Code CCA105
Current Rating 10A (suitable for inductive loads)
Configuration 6 Gang 2 Way
Dimensions 146mm x 86mm x 9.5mm
Material Urea front plate and housing
Terminal Size 3.5mm diameter
Cable Size 4 x 1.5mm² or 2 x 2.5mm²
Back Box Depth 16mm - 47mm
IP Rating IP20
Warranty 10 Years
Antimicrobial Certified Yes - 99.9% kill rate

Applications & Uses

Commercial Lighting Control

Ideal for offices, retail spaces, and commercial buildings requiring comprehensive multi-zone lighting control with professional reliability and performance standards.

Hospitality Venues

Perfect for hotels, restaurants, and conference facilities needing sophisticated lighting control for different areas and ambiance management.

Large Residential Properties

Suitable for luxury homes, penthouses, and large residences requiring advanced lighting control systems with premium finish and reliability.

Educational Facilities

Designed for schools, universities, and training centers where robust multi-zone lighting control is essential for different room configurations.

Installation Guidelines

Back Box Requirements

Install in 16-47mm deep back box suitable for wide 146mm format. Ensure adequate space for 6-gang cable termination and access.

Cable Connections

Terminate using 4 x 1.5mm² or 2 x 2.5mm² cables with 0.4Nm torque to 3.5mm terminals. Earth cables must be appropriately sleeved.

Circuit Design

Wire as 2-way switching circuit using L1, L2 terminals at each switch location. Ensure proper strappers between switch positions for reliable operation.

Load Compatibility

Rated for inductive loads up to 10A per gang, suitable for LED drivers, fluorescent ballasts, and modern lighting control equipment.

Standards & Compliance

BS EN 60669-1:1999

Complies with British/European standard for switches for household and similar fixed electrical installations ensuring safety and performance.

Low Voltage Directive

Meets 2006/95/EC directive requirements for electrical safety, performance standards, and consumer protection in professional installations.

ISO 22196 Antimicrobial

Certified antimicrobial activity under modified ISO 22196 standard providing bacterial resistance for hygiene-critical applications.

Frequently Asked Questions

  • What is the maximum load capacity for each gang on the CCA105?

    Each gang is rated at 10A and suitable for inductive loads, making it ideal for fluorescent lighting, LED drivers, and other commercial lighting applications.

  • What applications is the 6 gang switch CCA105 designed for?

    Perfect for commercial premises, large residential properties, hotels, and venues requiring multi-zone lighting control with professional-grade reliability and safety standards.

  • What wiring configuration does the CCA105 support?

    The 6 gang 2 way configuration allows control from two locations using appropriate wiring with 4 x 1.5mm² or 2 x 2.5mm² cable connections.

  • Is the CCA105 suitable for LED lighting installations?

    Yes, the 10A inductive load rating makes it compatible with LED drivers, transformers, and other modern lighting control equipment commonly used in professional installations.

  • What back box depth is required for the wide format CCA105?

    The CCA105 requires 16-47mm back box depth. The wide 146mm format requires appropriate back box sizing for the 6 gang configuration.

  • Does the CCA105 provide antimicrobial protection for hygiene-critical environments?

    Yes, urea construction offers certified antimicrobial properties with 99.9% kill rate against MRSA, E-Coli, Salmonella, and Klebsiella Pneumoniae bacteria.
