CCA606 - Click Curva 13A Switched Socket 2 Gang

Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

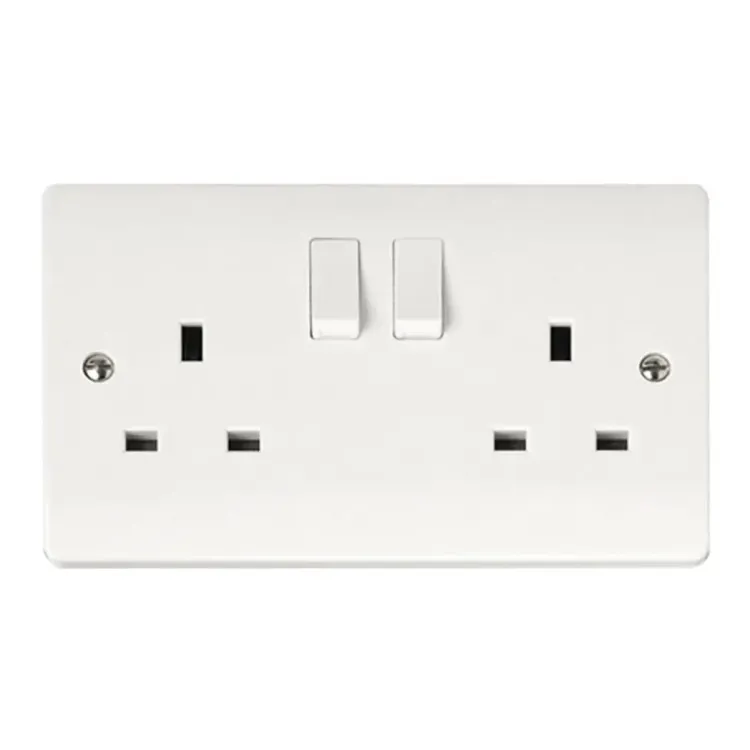

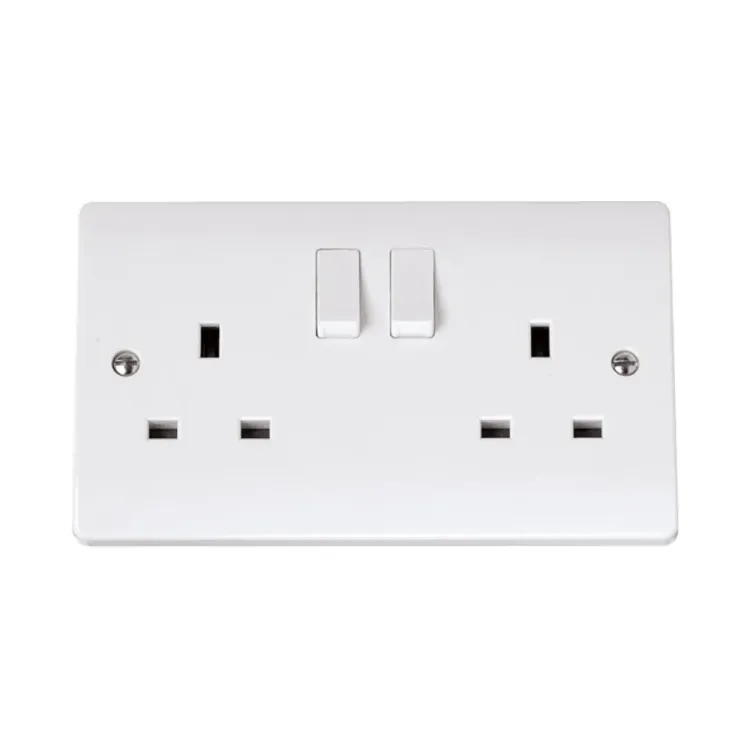

Click Curva 13A Switched Socket 2 Gang

Control two appliances with the Click Curva 2 Gang Switched Socket (CCA606). Stylish design with Urea front and Nylon back. 13A rated, single pole with screw terminals. Electrical knowledge required for installation.

Stock Code: CCA606
In stock
Price 4.35 £
incl. VAT, 20% priced individually

Depending on your delivery address, VAT may vary at Checkout.

Product Features

  • SKU

    CCA606

  • Brand

    Click

  • Model

    Curva CCA606

  • Style

    Raised, Rounded Profile

  • Contacts

    Silver on-lay Copper / Brass

  • Warranty

    10 Years

  • Terminals

    Brass

  • Dimensions

    146mm x 86mm x 9.5mm

  • Earth Strap

    Mild Steel

  • Load Rating

    13A

  • Single Pole

    Yes

  • Rear Housing

    Nylon

  • Terminal Size

    5mm⌀

  • Back Box Depth

    25mm Minimum

  • Maximum Voltage

    250V, 50Hz

  • Terminal Screws

    Steel & Yellow Passivated

  • Terminal Torque

    2.5Nm

  • Internal Busbars

    Formed Pressed Brass

  • Terminal Capacity

    3 x 2.5mm² or 2 x 4mm²

  • Ingress Protection

    IP20

  • Plate Fixing Centres

    120.6mm

  • Twin Earth Terminals

    No

  • Operational Temperature

    -5°C to +40°C

  • Front Plate And Rocker Switch

    Urea
