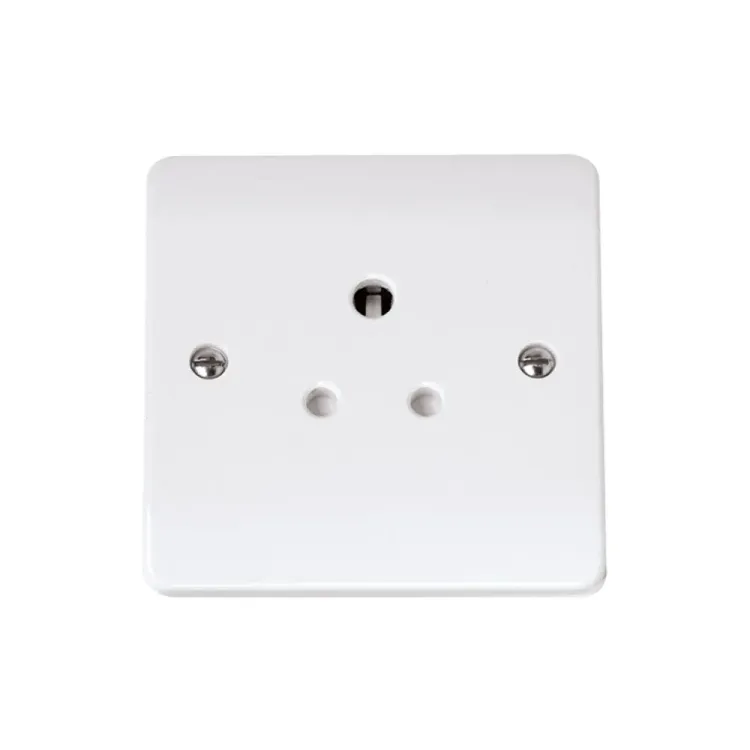

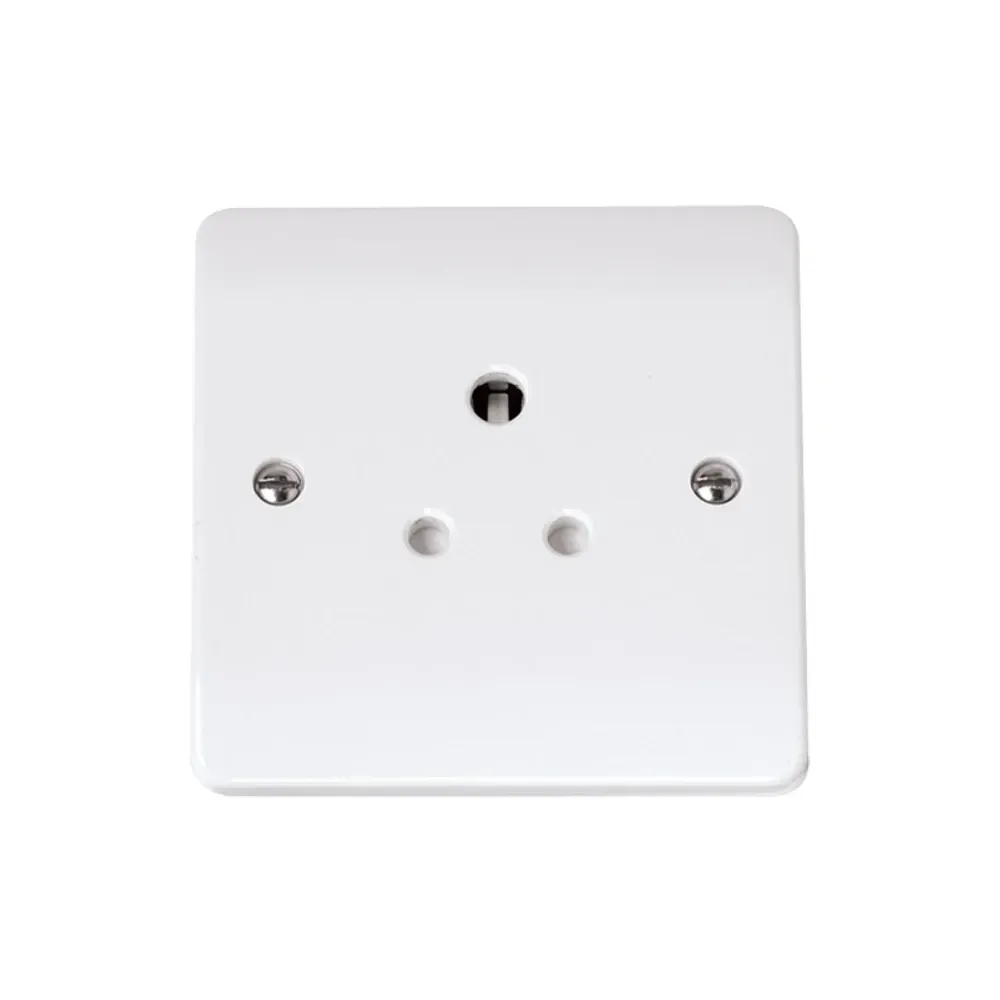

Click Curva 5A Socket 1 Gang Round Pin, Polar White, Unswitched
Professional Click Curva 5A round pin socket engineered for specialized lighting and low-power electrical applications in residential and commercial installations. This single gang unswitched socket provides reliable 5A capacity with premium polar white antimicrobial finish, delivering 99.9% bacteria kill rate for enhanced hygiene standards. Designed with professional-grade round pin configuration for secure connection and consistent performance in demanding environments. The robust socket mechanism ensures reliable contact and extended operational life for specialized electrical equipment. Engineered to British electrical standards with sleek profile that integrates seamlessly into modern installations while maintaining the durability expected by contractors and maintenance engineers.
Online:
Product Features
| Current Rating | 5A |
|---|---|
| Gang Configuration | 1 Gang |
| Pin Configuration | Round Pin |
| Switch Type | Unswitched |
| Finish | Polar White |
| Antimicrobial Protection | 99.9% bacteria kill rate |
| Plate Dimensions | 86mm x 86mm |
| Mounting Box | 35mm depth minimum |
| Terminal Capacity | 2 x 2.5mm² |
| Product Code | CCA038 |
| Standards Compliance | BS 546 |
Applications & Uses
Lighting Circuits
Perfect for table lamps, floor lamps, and decorative lighting where dedicated 5A circuit protection is required for electrical safety.
Low Power Equipment
Ideal for radios, small appliances, and electronic devices requiring lower current capacity with proper circuit protection and safety.
Commercial Applications
Suitable for offices, hotels, and commercial spaces where specialized electrical equipment requires dedicated 5A supply with professional reliability.
Installation Guidelines
Circuit Requirements
Install on dedicated 5A lighting circuit with appropriate MCB protection, ensuring proper load calculation and circuit capacity management.
Cable Specifications
Use appropriate cable size for 5A circuits, typically 1.0mm² or 1.5mm² depending on circuit length and installation method requirements.
Earth Connection
Maintain proper earth continuity through mounting box earthing terminal, essential for electrical safety and regulatory compliance.
Standards & Compliance
BS 546
Complies with British Standard for round pin plugs and sockets, ensuring compatibility with specialized electrical equipment and lighting applications.
Building Regulations
Meets Part P Building Regulations requirements for electrical safety in domestic and commercial properties throughout UK and Ireland.
Frequently Asked Questions
-
What is the maximum load this 5A round pin socket can handle?
The CCA038 can handle up to 5A at 230V AC, specifically designed for lighting circuits and low-power electrical equipment applications.
-
What type of plugs can be used with this round pin socket?
This socket accepts BS 546 compliant round pin plugs, commonly used for lighting circuits, table lamps, and specialized low-power electrical equipment.
-
Why would I choose a 5A socket over a 13A socket?
5A sockets are ideal for dedicated lighting circuits and prevent overloading, providing circuit protection for low-power equipment and reducing electrical installation costs.
-
What mounting box depth is required for installation?
A minimum 35mm depth mounting box is required, with adequate space for cable termination and compliance with electrical installation standards.
-
Does this socket include antimicrobial protection?
Yes, the polar white finish incorporates advanced antimicrobial technology providing 99.9% bacteria kill rate, suitable for residential and commercial applications.
