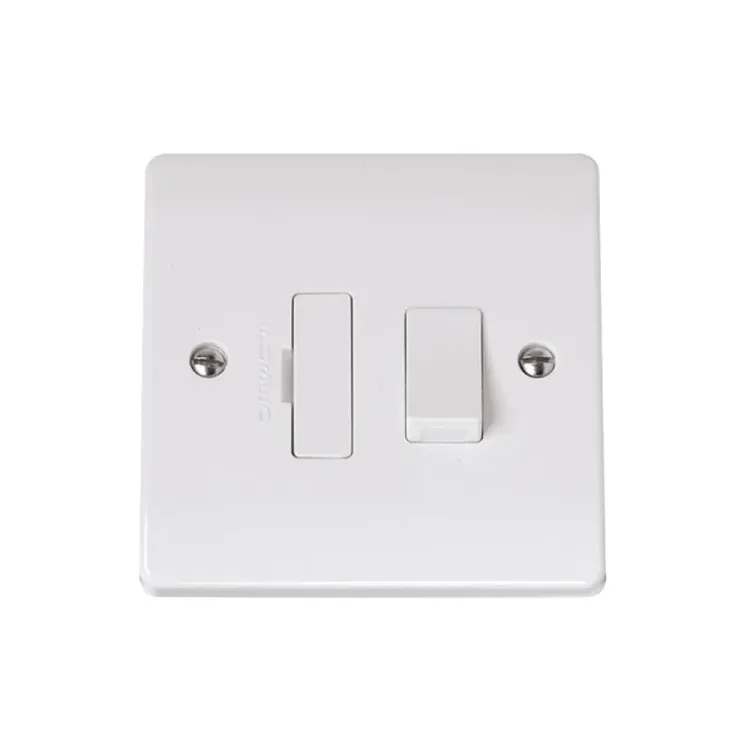

Photo is representative
Click Curva 13A Switched Fused Connection Unit Double Pole, Polar White
The Click Curva switched fused connection unit delivers professional-grade electrical control with 13A double pole switching and integrated fuse protection for appliance connections. This antimicrobial certified unit features robust urea construction with brass terminals and precision-formed press brass mechanism for reliable long-term operation. Designed specifically for professional electricians requiring secure appliance isolation and fuse protection. The optional flex outlet capability provides versatile connection options through the front plate. Perfect for kitchen appliances, boilers, and fixed equipment requiring local isolation with overcurrent protection.
Online:
Product Features
| Product Code | CCA051 |
|---|---|
| Current Rating | 13A |
| Configuration | Double Pole Switched |
| Fuse Type | BS 1362:1973 compliant |
| Material | Urea front plate and housing |
| Terminal Size | 5mm diameter |
| Cable Size | 3 x 2.5mm² or 2 x 4.0mm² |
| Back Box Depth | 25mm - 47mm |
| Warranty | 10 Years |
| Antimicrobial Certified | Yes - 99.9% kill rate |
Applications & Uses
Kitchen Appliances
Ideal for dishwashers, washing machines, and built-in ovens requiring local isolation and fuse protection with convenient switching control.
Boiler Controls
Perfect for central heating boilers and immersion heaters requiring double pole isolation for maintenance and safety compliance.
Commercial Equipment
Suitable for office equipment, catering appliances, and commercial machinery requiring reliable isolation and overcurrent protection.
Fixed Installations
Ideal for hardwired equipment and appliances where removable connection is not possible, providing secure fused protection.
Installation Guidelines
Back Box Requirements
Install in 25-47mm deep back box with appropriate cable entries. Ensure adequate space for cable termination and fuse access.
Cable Connections
Terminate using 3 x 2.5mm² or 2 x 4.0mm² cables. Apply 2.5Nm torque to 5mm terminals. Earth cables must be sleeved.
Load Connections
Connect appliance via flex outlet or direct connection. Ensure load does not exceed 13A rating and use appropriate fuse protection.
Standards & Compliance
BS 1363-4:1995
Complies with British Standard specification for 13A fused connection units ensuring electrical safety and performance standards.
Low Voltage Directive
Meets 2006/95/EC directive requirements for electrical safety, performance, and consumer protection in professional installations.
BS 1362:1973 Fuses
Compatible with BS 1362:1973 standard fuses providing reliable overcurrent protection for connected appliances and equipment.
Frequently Asked Questions
-
What is the difference between single and double pole fused connection units?
Double pole units like the CCA051 switch both live and neutral conductors, providing complete electrical isolation ideal for appliances requiring full disconnection for safety.
-
What appliances can connect to the CCA051 fused connection unit?
Suitable for kitchen appliances, boilers, immersion heaters, and fixed equipment up to 13A requiring local isolation and fuse protection for electrical safety.
-
Does the CCA051 include an optional flex outlet?
Yes, the CCA051 features optional flex outlet capability through the front plate, allowing flexible cord connection for appliances without fixed wiring.
-
What fuse rating should be used with the CCA051?
Use BS 1362:1973 compliant fuses rated appropriately for the connected load, typically 3A, 5A, or 13A depending on appliance requirements.
-
What back box depth is required for installation?
The CCA051 requires minimum 25mm back box depth, accommodating depths up to 47mm for various installation scenarios and cable management needs.
