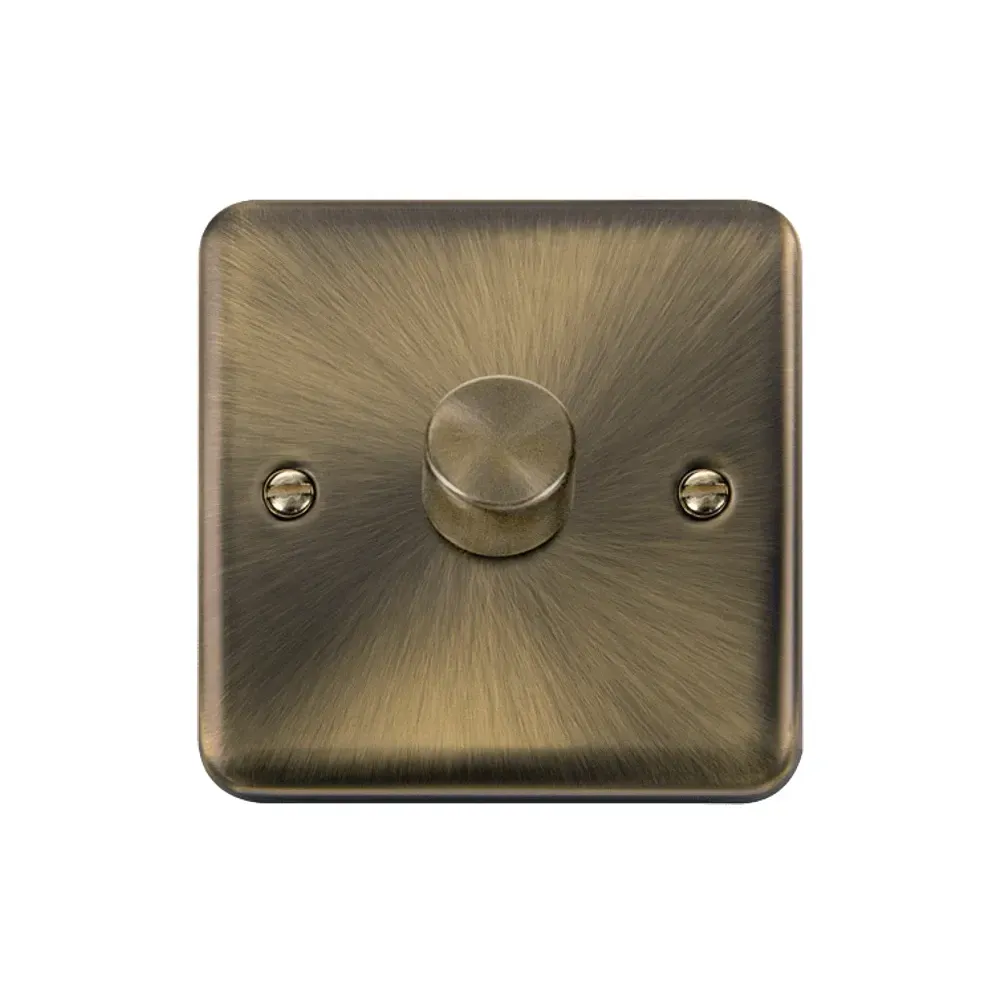

Click DPAB140 2 Way Dimmer Switch 400W - Antique Brass
Click DPAB140 delivers professional 2 way dimmer control for 400W resistive and inductive loads. Leading edge dimmer technology ensures smooth operation with halogen and quality LED lamps. Antique brass finish with stainless steel construction provides premium aesthetics. Press ON/OFF with rotate to dim functionality offers intuitive control. Compatible with 25mm back box depths for standard installations. BS EN 60669-1 compliant with 10-year product warranty. Suitable for residential and commercial dimming applications. Indoor dry locations only with IP20 protection rating.
Online:
Product Features
| Product Code | DPAB140 |
|---|---|
| Load Rating | 60-400W Resistive & Inductive |
| Voltage Rating | 250V~ 50/60Hz |
| Dimmer Technology | Leading Edge |
| Switch Type | 2 Way Switch |
| Plate Dimensions | 88 x 88 x 8 mm |
| Finish | Antique Brass Stainless Steel |
| IP Rating | IP20 Indoor Dry Locations |
| Back Box Depth | Minimum 25 mm |
| Compliance | BS EN 60669-1, CE & UKCA Marked |
Standards & Safety
BS Compliance
Meets BS EN 60669-1 switching standards with CE and UKCA marking for UK installations.
Safety Requirements
Isolate mains supply before installation. Use appropriate earth sleeving on bare cables per regulations.
Load Compatibility
Designed for resistive and inductive loads. LED compatibility requires quality lamps and technical verification.
Installation Guidelines
Mounting Requirements
25mm minimum back box depth with 60.3mm horizontal fixing centres for proper installation.
Terminal Connections
Screw terminals accept 2 x 1.5mm² solid conductors with 0.4Nm torque specification.
Wiring Reference
Follow circuit diagram supplied with product for correct 2 way switching configuration.
Applications & Uses
Residential Control
Living rooms, bedrooms and hallway lighting with smooth dimming control for ambience.
Commercial Dimming
Office and retail environments requiring variable lighting levels for different activities.
Halogen Lighting
Optimized for halogen lamp dimming with leading edge technology for smooth operation.
Frequently Asked Questions
-
What loads can the DPAB140 dimmer control?
Controls 60-400W resistive and inductive loads including halogen lamps and quality LED lamps with leading edge technology.
-
What back box depth is required for installation?
Requires minimum 25mm back box depth with 60.3mm horizontal fixing centres for standard installation.
-
Where can I install the DPAB140 dimmer switch?
Indoor dry locations only. IP20 rating suitable for living areas, not bathrooms or outdoor installations.
-
Does the DPAB140 work with LED lamps?
May work with good quality LED lamps. Contact us for specific LED compatibility requirements.
-
What warranty comes with the DPAB140 dimmer?
10-year product warranty with 1-year electronics warranty covering manufacturing defects and component failures.
