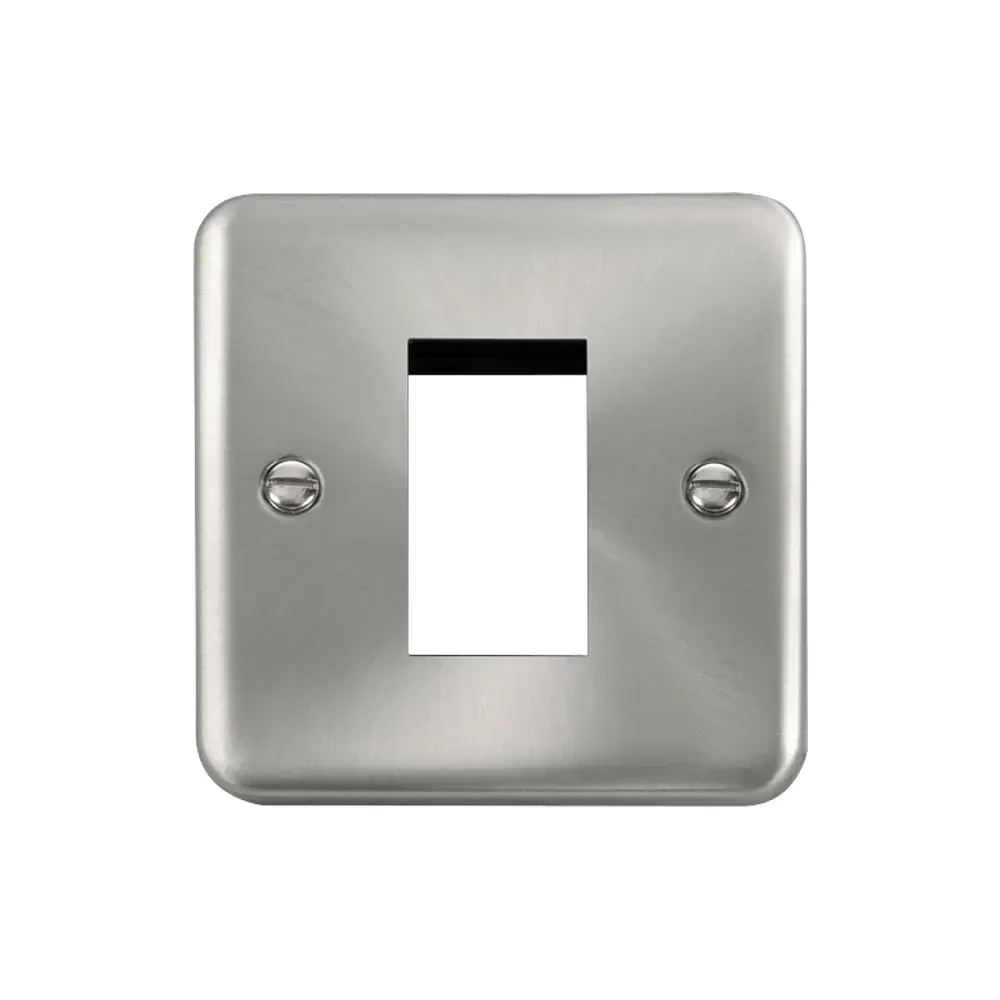

Click DPSC310 satin chrome media plate front view

Photo is representative

Click Satin Chrome 1 Gang New Media Unfurnished Plate DPSC310 BS5733

1 gang New Media unfurnished plate in premium satin chrome finish for modular installations. Features single 25x50mm aperture for rocker switch modules with rounded profile design. Stainless steel front plate with nylon insert provides durability in domestic applications. Includes twin gaskets (black/white) for flexible installation requirements. Compatible with Click New Media modular range for custom switching solutions. BS5733 compliant with IP20 protection and 20-year manufacturer warranty. Captive screw terminals with earth facility ensure reliable connections. Operates -5°C to +40°C with 88x88mm mounting dimensions fitting standard 25mm backboxes.

Product Information

Stock Code DPSC310
MPN
GTIN
Stock status: In stock
Price: £9.58
incl. VAT, 20% priced individually

Product Features

Gang Configuration 1 Gang
Type New Media Unfurnished Plate
Aperture Size 25 x 50mm
Finish Satin Chrome
Front Plate Material Stainless Steel
Profile Style Rounded
Plate Dimensions 88 x 88 x 8mm
Modular Compatibility New Media Range
Standards Compliance BS5733
IP Rating IP20
Terminal Type Captive Screw
Gasket Options Black & White Supplied
Operating Temperature -5°C to +40°C
Warranty 20 Years

Applications & Uses

Modular Installations

Custom switching configurations using Click New Media rocker modules for bespoke electrical control solutions in domestic environments.

Upgrade Projects

Retrofit installations where standard switches require replacement with modular alternatives while maintaining existing backbox infrastructure.

Installation Guidelines

Mounting Requirements

88x88mm fixing centres at 60.3mm horizontal spacing. Compatible with standard UK electrical backboxes using captive screw fixings.

Earth Connection

Mandatory earth terminal connection required. Bare conductors must be sleeved before termination to comply with BS5733 safety requirements.

Standards & Safety

  • BS5733 Compliance Manufactured to British Standard 5733 specifications for electrical accessories. UKCA marked for UK market compliance and professional confidence.
  • IP20 Protection Indoor protection rating suitable for domestic installations. Not suitable for wet locations or areas requiring enhanced ingress protection.

Frequently Asked Questions

  • What modules are compatible with DPSC310?

    Compatible with all Click New Media modular rocker switches and data modules within the range. Single 25x50mm aperture accepts standard modular components.

  • What backbox depth is required?

    Minimum backbox depth depends on modules fitted. Standard 25mm backboxes suitable for basic modules, deeper required for complex switching configurations.

  • Are both gasket colours supplied?

    Yes, both black and white gaskets included as standard. Choose appropriate colour to match installation requirements and wall finish.

  • Can earth connections be made?

    Yes, earth terminal provided. Bare earth cables must be covered with appropriate sleeving before connection to earth terminal as per BS5733 requirements.
