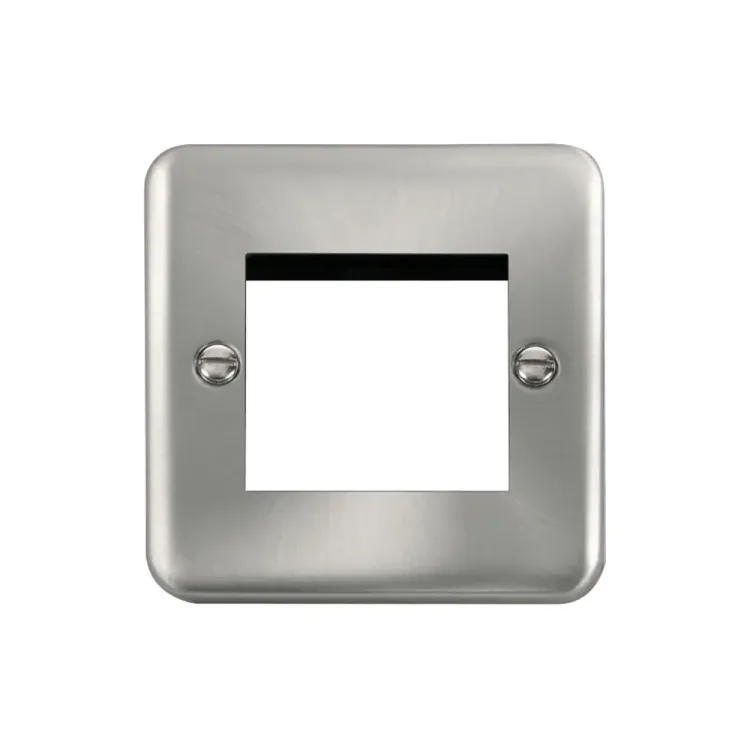

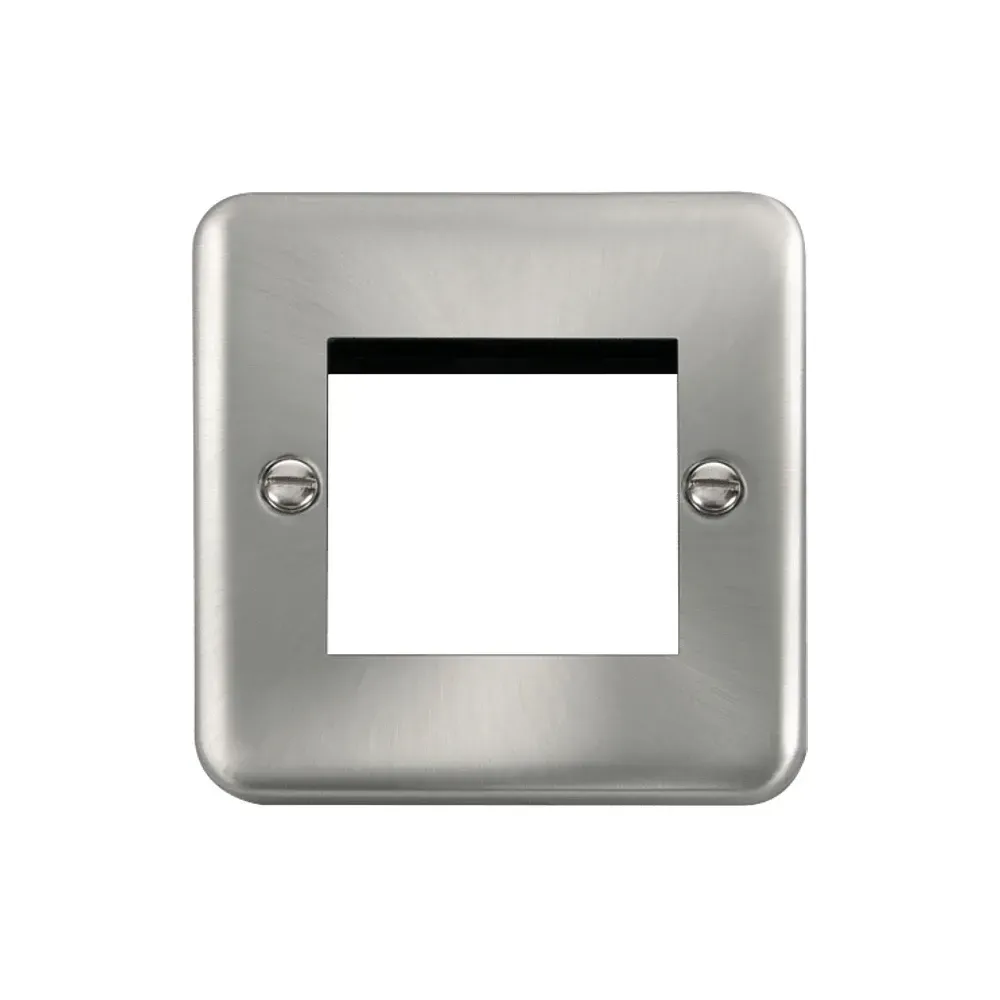

Click Deco Plus Satin Chrome 1 Gang New Media Unfurnished Plate 2 Aperture
Professional-grade unfurnished media plate from Click’s New Media range featuring premium satin chrome finish with rounded profile design. The single gang configuration includes dual 50x50mm apertures for modular system flexibility. Constructed with stainless steel front plate and nylon insert for durability. Features screw termination with earth strap connection and supplied gaskets for professional installation. BS 5733 compliant with IP20 protection rating. Compatible with Click’s full modular range for custom AV and data configurations. Operates reliably from -5°C to +40°C with 20-year manufacturer warranty.
Product Information
Product Features
Applications & Uses
AV Installations
Custom media configurations for home cinema, conference rooms, and entertainment systems requiring HDMI, audio, and video connections.
Data Networks
Professional network installations combining Ethernet, USB, and power modules for workstations, meeting rooms, and office environments.
Smart Home Integration
Modern installations requiring mixed USB charging, data connectivity, and smart home control modules in single wall plate.
Installation Guidelines
Back Box Selection
Choose back box depth based on modules fitted - 25mm minimum for basic modules, 35mm+ for USB/smart modules.
Earth Connection
Connect earth strap to back box earth terminal with bare conductors sleeved appropriately. Essential for safety compliance.
Module Installation
Fit chosen modules after plate installation. Test all connections before energising circuits. Gasket ensures professional finish.
Standards & Safety
- BS 5733 Compliance Manufactured to British Standard 5733 for general purpose socket outlets and plugs for household use.
Frequently Asked Questions
-
What modules fit the DPSC311 apertures?
All Click New Media range modules fit the 50x50mm apertures, including data, USB, HDMI, and audio modules for custom configurations.
-
Does this plate require specific back box depth?
Back box depth depends on modules fitted. Standard 25mm boxes suitable for basic modules, deeper boxes needed for USB/smart modules.
-
Can I mix different module types in one plate?
Yes, the dual aperture design allows mixing any New Media modules - combine data, power, USB, or AV modules as required.
-
Is the earth connection mandatory for media plates?
Yes, connect bare earth cables with appropriate sleeving to the earth terminal even for low-voltage media applications per BS 5733.
-
What's the difference between gasket colours supplied?
Black and white gaskets accommodate different back box colours for professional appearance - use appropriate colour for installation aesthetics.
