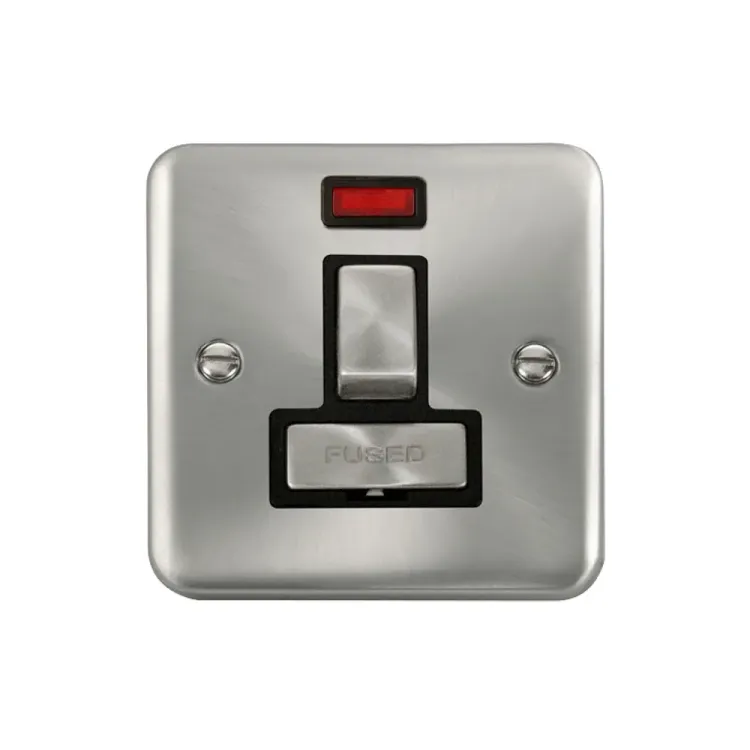

Photo is representative

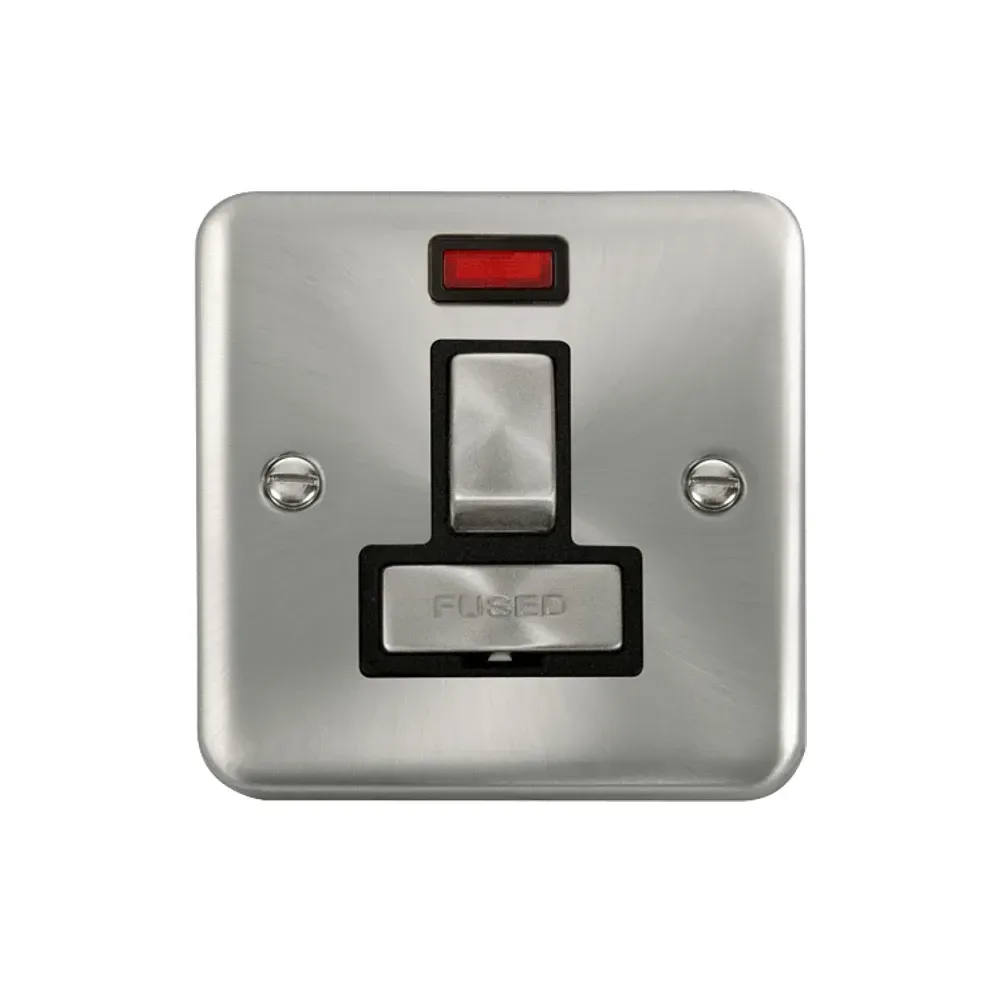

Click Deco+ Satin Chrome 13A Double Pole Switched Fused Connection Unit
13A double pole switched fused connection unit from Click’s Deco Plus range in premium satin chrome finish. Features captive screw terminals with 2Nm torque specification for secure connections, accommodating 3 x 2.5mm² or 2 x 4mm² conductors. Double pole switching with integrated red neon indicator provides clear operational status. Accepts standard plug-top cartridge fuses for appliance protection. Twin earth terminals ensure safe installation to BS1363-4 and BS1362 standards. Fits standard 25mm backbox with 60.3mm fixing centres. Premium stainless steel construction with black urea insert delivers durability for demanding commercial and domestic applications. 20-year warranty provides long-term reliability assurance.
Product Information
Product Features
Installation Requirements
Backbox Specification
Standard 25mm depth metal backbox with 60.3mm horizontal fixing centres. Unit dimensions 88mm x 88mm x 8mm excluding terminals.
Terminal Configuration
Captive Ø5mm screw terminals accept 3 x 2.5mm² or 2 x 4mm² conductors. Twin earth terminals provide separate incoming/outgoing connections.
Torque Settings
Terminal screw torque specification 2Nm ensures secure connections without conductor damage. Use calibrated screwdriver for professional installation.
Applications & Uses
Appliance Isolation
Ideal for fixed appliances requiring local isolation - boilers, water heaters, air conditioning units, and commercial equipment up to 13A.
Circuit Protection
Provides both switching and fused protection in single unit. Suitable for spur connections from ring circuits or dedicated appliance circuits.
Commercial Applications
Premium satin chrome finish suits office, retail, and hospitality environments. 20-year warranty ensures long-term reliability in demanding applications.
Standards & Safety
- British Standards Full BS1363-4 and BS1362 compliance ensures safety and compatibility with UK electrical installations. IP20 rating suitable for dry indoor locations.
- Operating Specifications Rated 250V AC 50Hz operation with -5°C to +40°C temperature range. Suitable for standard UK domestic and commercial voltage levels.
Frequently Asked Questions
-
What fuse type does this FCU accept?
Standard plug-top cartridge fuses to BS1362. The fuse drawer accommodates 3A, 5A or 13A cartridge fuses depending on connected appliance requirements.
-
What cable capacity do the terminals accept?
Captive screw terminals accommodate 3 x 2.5mm² or 2 x 4mm² solid conductors. Terminal torque specification is 2Nm for secure connections.
-
Does this unit require twin earth connections?
Yes, dedicated twin earth terminals provide separate connections for incoming and outgoing earth conductors, ensuring BS1363-4 compliance for ring circuit installations.
-
What backbox depth is required for installation?
Minimum 25mm depth standard metal backbox required. Fixing centres are 60.3mm horizontal spacing for standard single gang mounting lugs.
-
What does the neon indicator show?
Red neon indicator illuminates when the switch is in the ON position, providing clear visual confirmation of circuit status for operational safety.
