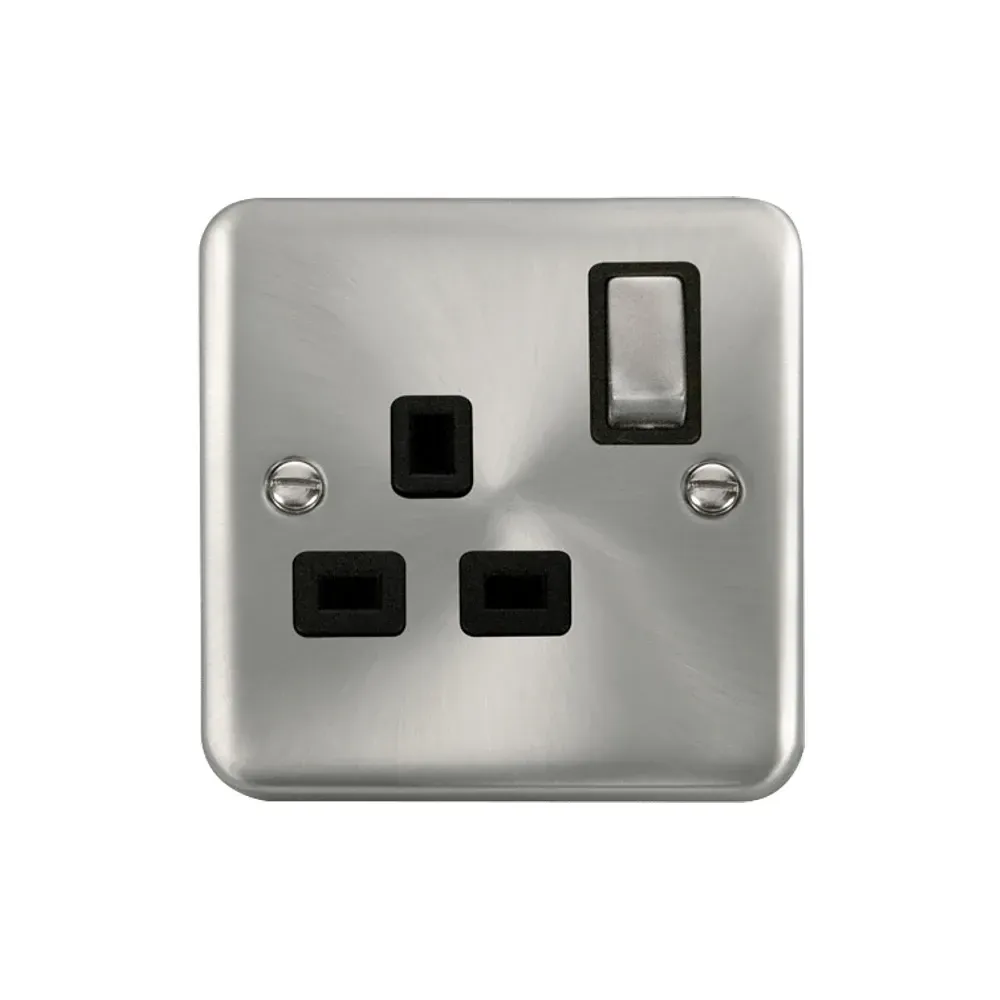

Photo is representative
Click Deco+ 13A 1 Gang DP Satin Chrome Switched Socket BS1363
Click Deco Plus 13A single gang double pole switched socket outlet in satin chrome finish with black insert. Features captive screw terminals for secure connections, 25mm mounting depth compatibility, and BS1363 compliance. Stainless steel front plate with rounded profile design provides durability and modern aesthetics. Double pole switching offers enhanced safety control for high-current appliances. Suitable for domestic and commercial installations with 20-year manufacturer warranty. Terminal capacity accommodates 3 x 2.5mm² or 2 x 4mm² solid conductors with 2Nm torque specification. IP20 rated for indoor use with operational temperature range -5°C to +40°C.
Online:
Product Features
| Current Rating | 13A |
|---|---|
| Gang Configuration | 1 Gang |
| Switching Type | Double Pole Switched |
| Voltage Rating | 250V AC 50Hz |
| Terminal Type | Captive Screw |
| Terminal Capacity | 3 x 2.5mm² or 2 x 4mm² solid |
| Terminal Torque | 2Nm |
| Mounting Depth | 25mm minimum backbox |
| Standards Compliance | BS 1363-2 |
| IP Rating | IP20 |
| Finish | Satin Chrome with Black Insert |
| Front Plate Material | Stainless Steel |
| Operational Temperature | -5°C to +40°C |
| Warranty | 20 years |
Installation Guidelines
Terminal Connections
Captive screw terminals with 5mm diameter screws. Strip conductors to 10mm length and tighten to 2Nm torque specification for secure connection.
Mounting Requirements
60.3mm horizontal centres with 25mm minimum backbox depth. Plate dimensions 88x88x8mm, expanding to 91x91x9mm with gasket fitted.
Cable Management
Terminal block accommodates multiple cable entries for ring circuits. Angled terminal access aids cable dressing in confined backbox spaces.
Standards & Safety
Compliance Certification
Manufactured to BS1363-2 standards with UK Design Registration 3015621. Meets all requirements for domestic and commercial socket outlet installations.
Operational Limits
IP20 ingress protection for indoor use only. Operational temperature range -5°C to +40°C suitable for standard building environments.
Frequently Asked Questions
-
What backbox depth is required for the Click DPSC535BK socket?
Minimum 25mm backbox depth required. Standard metal backboxes are suitable for this single gang socket installation with captive screw terminals.
-
What cable sizes can the DPSC535BK terminals accommodate?
Terminal capacity is 3 x 2.5mm² or 2 x 4mm² solid conductors. Captive screw terminals require 2Nm torque setting for secure connection.
-
Is the Click DPSC535BK suitable for ring final circuits?
Yes, 13A rating and BS1363-2 compliance makes it suitable for standard domestic ring final circuits using 2.5mm² T&E cable.
-
What is the difference between single pole and double pole switching?
Double pole switching isolates both live and neutral conductors for enhanced safety when controlling high-current appliances like washing machines or tumble dryers.
-
Can this socket be used in bathroom installations?
IP20 rating limits use to dry indoor locations only. For bathrooms, use IP44 rated sockets outside zones or IP66 for wet areas.
