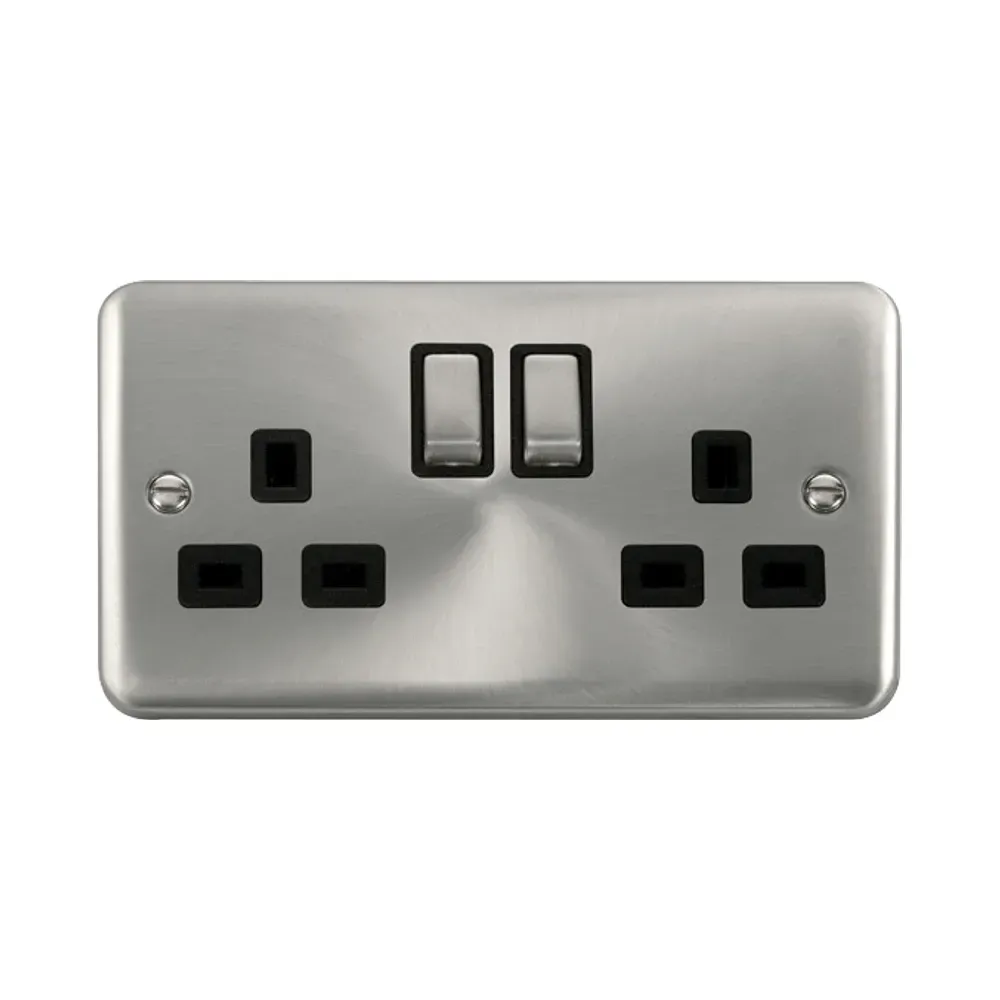

Photo is representative
Click Deco Plus Satin Chrome 13A 2 Gang Double Pole Switched Socket BS1363
Click Deco Plus 13A 2 gang double pole switched socket in premium satin chrome finish with black inserts. Features captive screw terminals with twin earth facility for secure connections. Requires 25mm minimum backbox depth with 120.6mm fixing centres. Double pole switching provides enhanced control and safety. Stainless steel construction with urea housing ensures durability in commercial and domestic installations. Terminal capacity handles 3 x 2.5mm² or 2 x 4mm² solid conductors. Complies with BS 1363-2 with IP20 rating for indoor use. 20-year warranty backed by UK design registration. Professional installation ready with clear terminal identification and angled screw access for efficient cable dressing.
Online:
Product Features
| Current Rating | 13A per outlet |
|---|---|
| Gang Configuration | 2 Gang |
| Switching Type | Double Pole Switched |
| Voltage Rating | 250V AC 50Hz |
| Terminal Type | Captive screw terminals |
| Terminal Capacity | 3 x 2.5mm² or 2 x 4mm² solid |
| Earth Configuration | Twin earth terminals |
| Minimum Backbox Depth | 25mm |
| Fixing Centres | 120.6mm horizontal |
| Standards Compliance | BS 1363-2 |
| Ingress Protection | IP20 |
| Finish | Satin Chrome with Black Inserts |
| Material | Stainless Steel Front Plate |
| Warranty | 20 Years |
Installation Requirements
Terminal Configuration
Captive screw terminals with 5mm diameter access. Twin earth terminals ensure secure earthing connections for safety compliance.
Mounting Specifications
Requires 25mm minimum backbox depth with standard 120.6mm horizontal fixing centres. Compatible with existing metal backboxes.
Tool Requirements
Small flat-blade screwdriver for terminal connections. Terminal torque setting 2Nm for optimal conductor retention without damage.
Professional Features
Double Pole Control
Switches both live and neutral conductors for complete isolation. Enhanced safety for high-power appliances and equipment.
Premium Construction
Stainless steel front plate with brass terminals and silver overlay contacts. Professional-grade materials ensure long-term performance.
Standards Compliance
BS 1363-2 compliant with UK design registration 3015621. IP20 rating suitable for indoor domestic and commercial installations.
Frequently Asked Questions
-
What backbox depth is required for the Click DPSC536BK socket?
Minimum 25mm backbox depth required. Standard metal backboxes are suitable with 120.6mm horizontal fixing centres for proper mounting.
-
What cable capacity do the terminals handle?
Captive screw terminals accommodate 3 x 2.5mm² or 2 x 4mm² solid conductors with 2Nm torque setting for secure connections.
-
Is this socket suitable for ring circuit installation?
Yes, twin earth terminals and 13A rating make it ideal for ring circuits. Complies with BS 1363-2 for domestic installations.
-
What does double pole switching provide?
Double pole switching isolates both live and neutral conductors simultaneously, providing enhanced safety and complete circuit control for connected appliances.
-
Can this socket be used in commercial environments?
Yes, stainless steel construction with IP20 rating suits commercial installations. 20-year warranty provides long-term reliability assurance.
