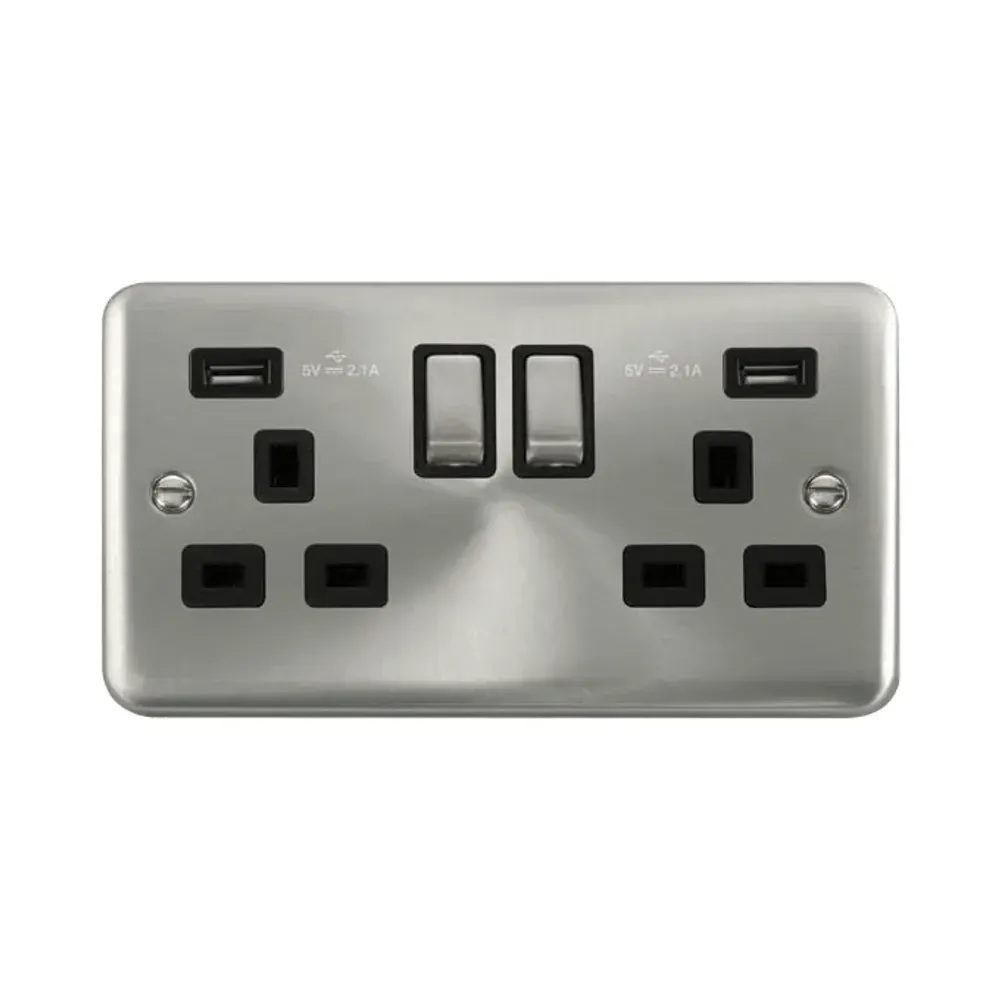

Click Deco+ 13A Double Switched Socket Twin USB-A Black, DPSC580BK BS1363
Professional 13A double gang switched socket with integrated twin USB-A charging ports delivering 4.2A total output. Features captive screw terminals for 2.5mm² T&E cable, twin earth facility, and 25mm mounting depth compatibility. Black finish plate with robust 5V DC USB charging capability at 2.1A per port. Engineered for ring main circuits with single pole switching and BS1363-2:2016 compliance. Terminal torque specification 1.2Nm with 5mm diameter connections. IP20 rated for indoor installation with operational temperature range -5°C to +40°C. Includes 20-year warranty with 2-year electronics coverage for professional confidence.
Online:
Product Features
| Current Rating | 13A |
|---|---|
| Gang Configuration | 2 Gang Double |
| Switching Type | Single Pole Switched |
| USB Integration | Twin USB-A ports, 4.2A total output |
| USB Output Per Port | 2.1A at 5V DC |
| Terminal Type | Captive screw terminals |
| Terminal Capacity | 3 x 2.5mm² or 2 x 4mm² |
| Terminal Specifications | 5mm diameter, 1.2Nm torque |
| Earth Configuration | Twin earth terminals |
| Mounting Depth | 25mm minimum back box |
| Standards Compliance | BS1363-2:2016, BS EN IEC 62368-1 |
| IP Rating | IP20 |
| Operating Temperature | -5°C to +40°C |
| Warranty | 20 years (2 years electronics) |
Installation Requirements
Terminal Configuration
Captive screw terminals with twin earth facility accommodate multiple 2.5mm² T&E cables. 5mm diameter terminals with 1.2Nm torque specification for secure connections.
Mounting Specifications
25mm minimum back box depth with 120.6mm horizontal fixing centres. Plate dimensions 146mm x 88mm x 8mm for standard installation compatibility.
Cable Management
Terminal capacity handles ring main extensions with space for 3 x 2.5mm² cables or 2 x 4mm² conductors per terminal block.
USB Charging System
Charging Capacity
Twin USB-A ports deliver 4.2A total output with 2.1A per port capability. 5V DC regulation maintains consistent charging performance for multiple devices.
Power Management
USB system operates at 2mA standby current with permanent live connection. Independent from switched 13A outlets for continuous charging availability.
Device Compatibility
Standard USB-A configuration supports smartphones, tablets, and portable devices. Output specification suitable for fast charging requirements up to 2.1A per port.
Standards & Safety
- Compliance Certification BS1363-2:2016 socket compliance with BS EN IEC 62368-1 safety standards. BS EN 62680-1-1 USB charging protocol certification for professional confidence.
- Operating Parameters IP20 ingress protection for indoor installation. Operational temperature range -5°C to +40°C with 250V AC, 50Hz electrical specification.
Frequently Asked Questions
-
What cable sizes fit the Click DPSC580BK terminals?
Terminals accommodate 3 x 2.5mm² T&E cables or 2 x 4mm² cables with 5mm diameter screws and 1.2Nm torque specification for secure professional installation.
-
What USB charging current does each port provide?
Each USB-A port delivers 2.1A at 5V DC with 4.2A total charging capacity, suitable for simultaneous tablet and smartphone charging applications.
-
Does this socket require special back box depth?
Standard 25mm minimum back box depth required. USB electronics add minimal depth requirements compared to standard double gang socket installations.
-
What switching configuration controls the 13A outlets?
Single pole switching controls both 13A outlets independently. USB charging ports remain permanently live for continuous device charging capability when required.
-
Which standards does the Click DPSC580BK meet?
Complies with BS1363-2:2016, BS EN IEC 62368-1, and BS EN 62680-1-1 for socket outlets, USB safety, and charging protocols respectively.
