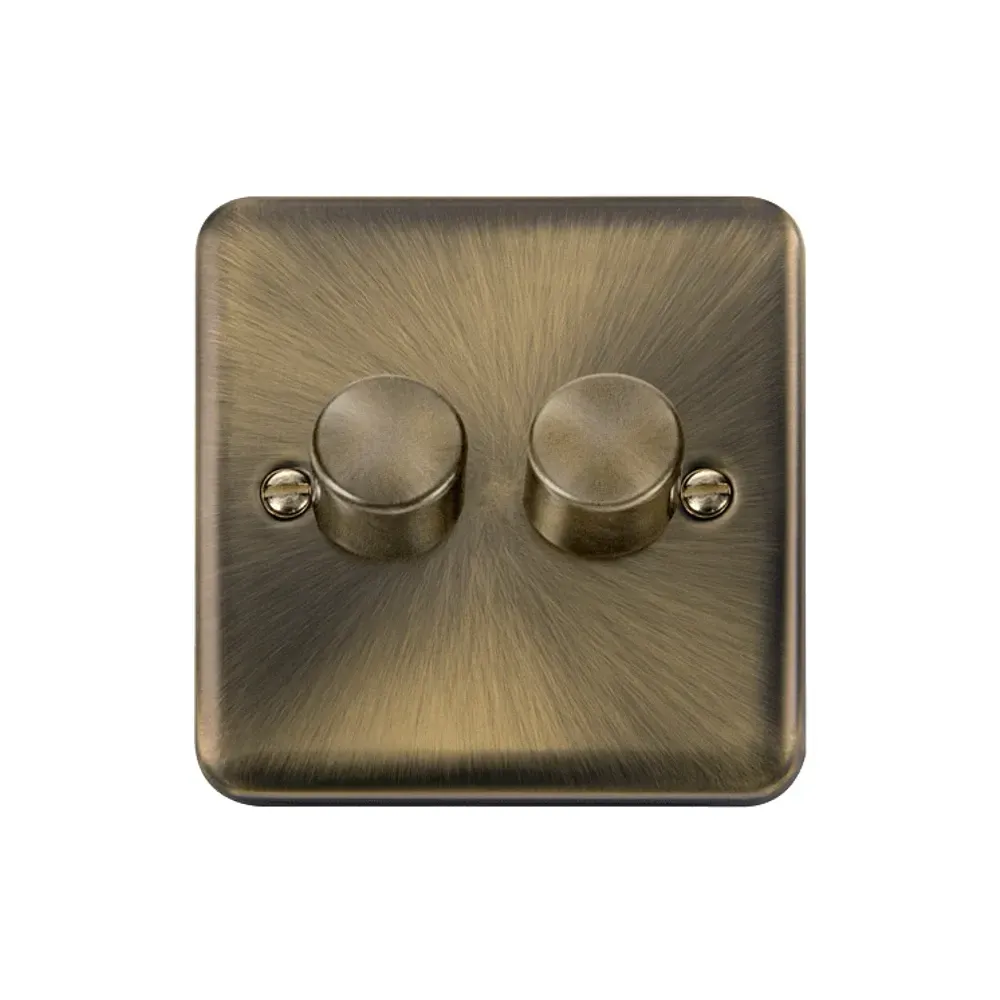

Click DPAB152 2 Gang 400W Dimmer Switch - Antique Brass
Click DPAB152 leading edge dimmer switch delivers precise lighting control for professional installations. Two gang 400W capacity handles resistive and inductive loads including halogen and incandescent lighting. Features premium antique brass finish with stainless steel construction and IP20 indoor rating. Includes 10-year general warranty with screw terminal connections for secure installation. Press ON/OFF with rotary dimming control provides smooth operation. Compatible with 25mm back boxes and 60.3mm fixing centres. Professional-grade dimmer technology suitable for commercial and residential applications.
Online:
Product Features
| Product Code | DPAB152 |
|---|---|
| Gang Configuration | 2 Gang 2 Way |
| Load Rating | 60-400W |
| Voltage Rating | 250V~ 50/60Hz |
| Dimmer Technology | Leading Edge |
| Finish | Antique Brass |
| Dimensions | 88 x 88 x 8 mm |
| IP Rating | IP20 |
| Back Box Depth | 25mm minimum |
| Warranty | 10 Years General, 1 Year Electronics |
Applications & Uses
Residential Lighting
Perfect for home lighting control including living rooms, bedrooms and dining areas requiring smooth dimming.
Commercial Applications
Suitable for office lighting, retail environments and hospitality venues with professional dimming requirements.
Halogen Control
Designed specifically for halogen lamp dimming with leading edge technology for optimal performance.
Installation Guidelines
Back Box Requirements
Requires minimum 25mm depth back box with 60.3mm horizontal fixing centres for proper mounting.
Terminal Connections
Screw terminals accept 2 x 1.5mm² conductors with 0.4Nm torque specification for secure installation.
Earth Requirements
Earth cables must be connected to earth terminal and covered with appropriate sleeving for safety.
Standards & Compliance
British Standards
Complies with BS EN 60669-1 switching standards and BS EN 55015 electromagnetic compatibility requirements.
CE Marking
CE and UKCA marked confirming compliance with European and UK regulatory requirements.
EMC Compliance
Meets BS EN 61000-3-2 and BS EN 61000-3-3 electromagnetic compatibility standards.
Frequently Asked Questions
-
What is the minimum back box depth required for the DPAB152?
Minimum 25mm back box depth required for proper installation with 60.3mm horizontal fixing centres.
-
Can the DPAB152 dimmer handle LED lamps?
Designed for resistive and inductive loads. May work with some LED lamps but verification required for compatibility.
-
What loads are compatible with this leading edge dimmer?
Suitable for resistive and inductive loads including halogen and incandescent lighting up to 400W maximum.
-
Is the DPAB152 suitable for bathroom installations?
IP20 rating suitable for dry indoor locations only. Not recommended for wet or humid environments.
-
What terminal capacity does the DPAB152 support?
Screw terminals accept 2 x 1.5mm² solid conductors with 0.4Nm torque value for secure connections.
