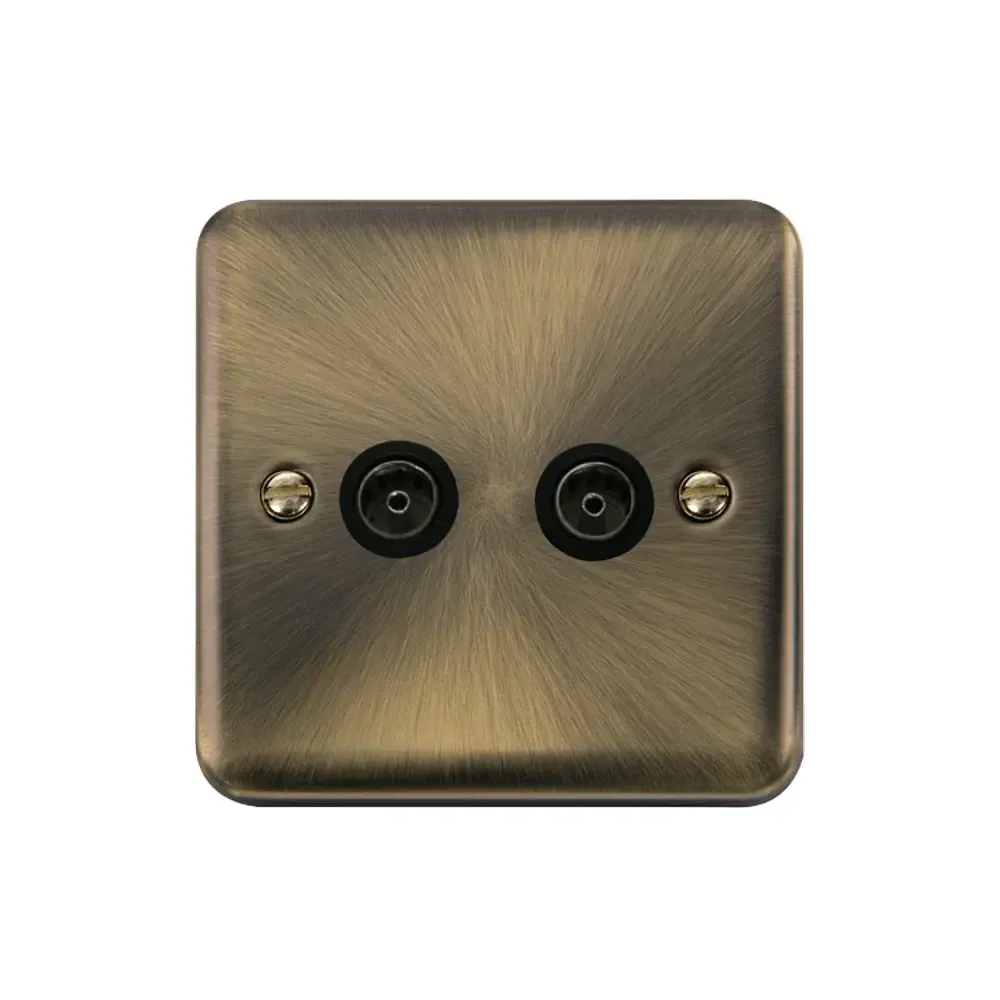

Click DPAB066BK Twin Coaxial Outlet - Antique Brass
Professional twin non-isolated coaxial outlet from Click’s Deco Plus range, featuring antique brass finish with black insert. Designed for satellite hard wire extensions and TV/FM aerial connections with 2-way signal transmission capability. Stainless steel front plate construction with screw terminals provides reliable connectivity for digital and analog signal distribution systems. IP20 rated for indoor dry locations with 88 x 88 x 8mm dimensions and 16mm minimum back box depth. Includes comprehensive 20-year warranty and meets CE/UKCA compliance standards for professional residential and commercial installations.
Online:
Product Features
| Product Code | DPAB066BK |
|---|---|
| Configuration | Twin Non-Isolated Coaxial Outlet |
| Finish | Antique Brass with Black Insert |
| Dimensions | 88 x 88 x 8mm |
| Back Box Depth | 16mm Minimum |
| IP Rating | IP20 - Indoor Dry Locations Only |
| Termination | Screw Terminals |
| Front Plate Material | Stainless Steel |
| Warranty | 20 Years |
| Compliance | CE/UKCA Marking |
Signal Applications
Satellite Extensions
Hard wire satellite signal distribution for reliable multi-room viewing with non-isolated 2-way transmission capability.
TV Aerial
Professional TV/FM aerial connections supporting both digital and analog signal distribution throughout residential and commercial buildings.
Signal Distribution
Twin outlet configuration enables multiple coaxial connections from single back box for efficient signal routing systems.
Installation Guidelines
Back Box
Minimum 16mm depth required with standard 88 x 88mm front plate dimensions for flush mounting installations.
Terminal Connections
Brass screw terminals provide secure coaxial cable terminations with reliable signal transmission and maintenance access.
Fixing Requirements
60.3mm horizontal fixing centres accommodate standard back box configurations for professional mounting standards.
Frequently Asked Questions
-
What signal types does the DPAB066BK twin coaxial outlet support?
Supports satellite hard wire extensions, TV/FM aerial connections, and both digital and analog signal distribution with 2-way transmission capability.
-
What minimum back box depth is required for DPAB066BK installation?
Requires minimum 16mm back box depth with 60.3mm horizontal fixing centres for proper mounting and terminal access.
-
Where can IP20 rated DPAB066BK coaxial outlets be safely installed?
Indoor dry locations only - living rooms, bedrooms, dry offices. Not suitable for bathrooms or outdoor installations.
-
What type of terminals does the Click DPAB066BK use?
Features brass screw terminals for secure coaxial cable connections with reliable signal transmission performance.
-
Is the DPAB066BK suitable for commercial installations?
Yes, designed for both residential and commercial signal distribution systems with professional-grade stainless steel construction.
