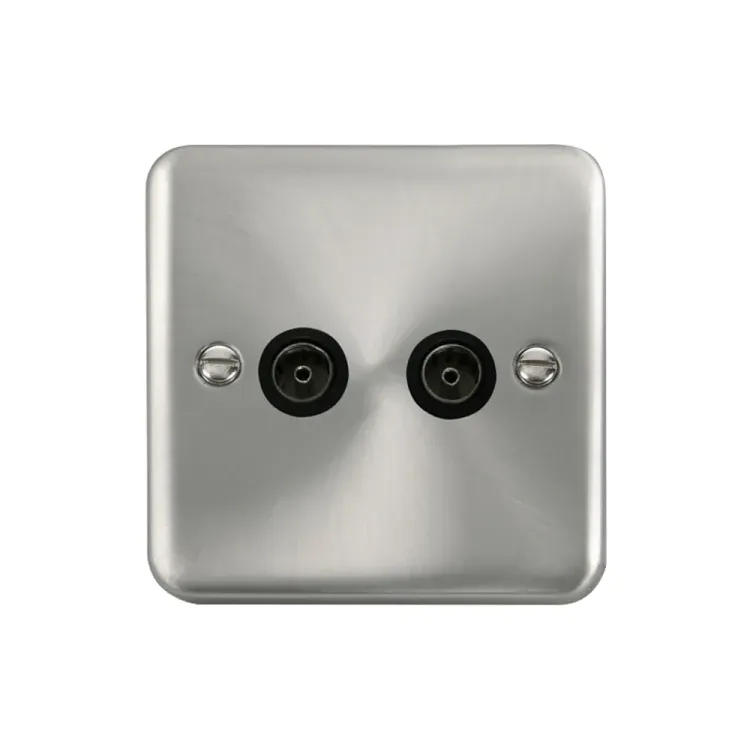

Photo is representative
Click Deco Plus Satin Chrome Twin Coaxial Outlet DPSC066BK F-Type
Click Deco Plus twin non-isolated coaxial outlet featuring dual F-type connections for satellite, terrestrial, and cable TV installations. Single gang media plate with satin chrome finish and black insert delivers reliable 2-way signal transmission. Brass screw terminals ensure secure connections for standard coaxial cables in domestic and commercial applications. Compatible with 16mm minimum backbox depth. IP20 rated for indoor installations with -5°C to +40°C operational temperature range. UKCA marked with 20-year warranty for professional confidence.
Online:
Product Features
| Outlet Type | Twin non-isolated coaxial outlets |
|---|---|
| Connection Type | F-type coaxial connectors |
| Signal Transmission | 2-way transmission enabled |
| Terminal Type | Brass screw terminals |
| Mounting Configuration | Single gang media plate |
| Backbox Depth | 16mm minimum depth required |
| Plate Finish | Satin chrome with black insert |
| Dimensions | 88mm x 88mm x 8mm (91mm with gasket) |
| IP Rating | IP20 indoor protection |
| Operating Temperature | -5°C to +40°C |
| Compliance | UKCA marked, CE compliant |
| Warranty Period | 20 years manufacturer warranty |
Professional Installation Requirements
Terminal Access
Brass screw terminals provide secure connections for coaxial cable cores. Standard preparation techniques apply for RG6/RG59 cables with proper shielding termination.
Mounting Specifications
Single gang media plate fits standard 25mm backboxes. 60.3mm horizontal fixing centres ensure compatibility with existing electrical infrastructure and mounting systems.
Safety Requirements
Mains supply isolation mandatory before installation. Bare earth cables must be sleeved. IP20 rating suitable for dry indoor locations only.
Signal Distribution Applications
Satellite Systems
Compatible with Sky Q, Freesat, and European satellite systems. 2-way transmission supports LNB power and DiSEqC control signals for multi-room installations.
Terrestrial TV
Suitable for Freeview aerial connections and signal distribution. Non-isolated design maintains signal integrity for digital terrestrial broadcasting reception and amplification systems.
Cable Networks
F-type connections accept cable TV and broadband coaxial systems. Twin outlets enable separate connections for TV and internet services through single plate.
Frequently Asked Questions
-
What cable types work with DPSC066BK coaxial outlets?
Standard coaxial cables terminate directly to brass screw terminals. F-type connectors accept RG6, RG59, and similar coaxial cables for satellite, terrestrial, and cable TV installations.
-
What backbox depth is required for installation?
Minimum 16mm backbox depth required. Standard 25mm or 35mm metal backboxes provide adequate space for cable termination and secure mounting.
-
Can both outlets transmit signals simultaneously?
Yes, twin non-isolated design enables 2-way signal transmission through both F-type connections, suitable for multi-room satellite or terrestrial TV distribution systems.
-
Is this outlet suitable for Sky Q installations?
Yes, F-type connections compatible with Sky Q, Freesat, and terrestrial aerial systems. Non-isolated design supports bidirectional communication required for modern satellite systems.
