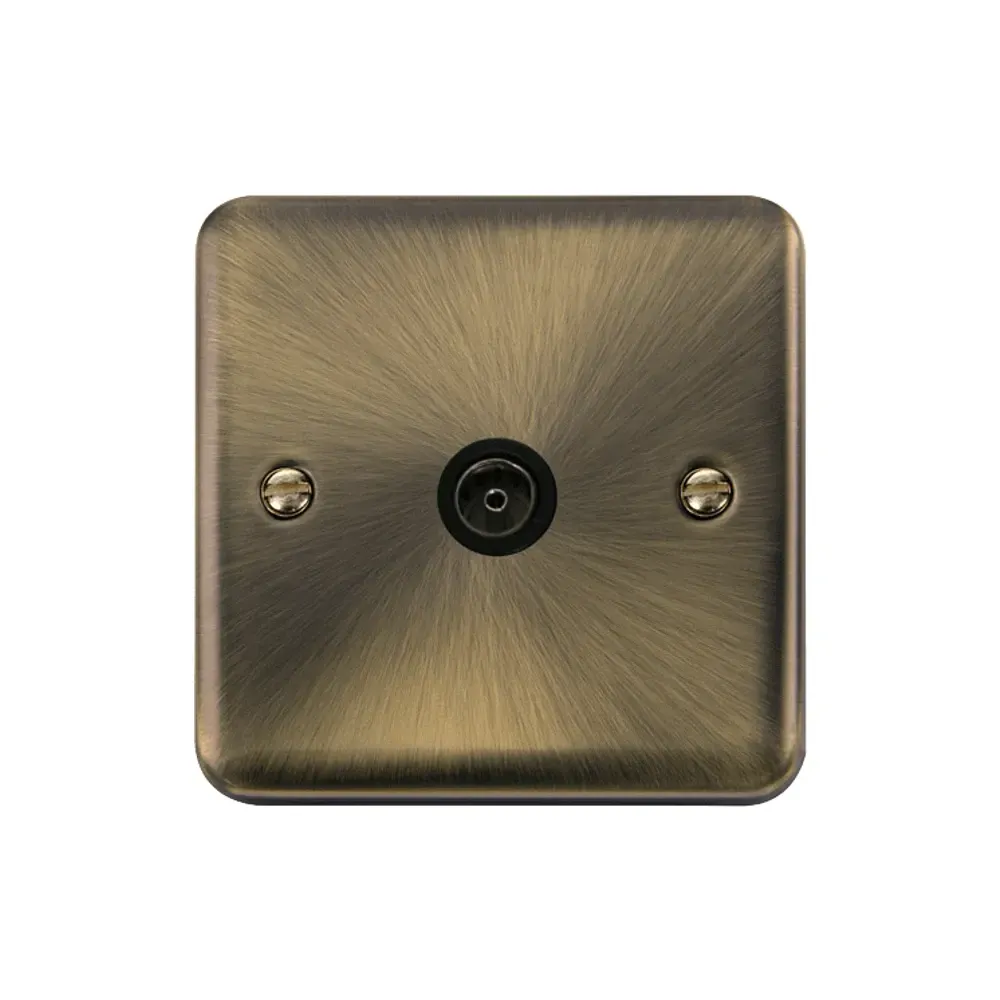

Click DPAB065BK antique brass coaxial outlet front view
Note: Images are for reference. Minor color or detail differences may occur due to lighting, screen settings, or product variations.

Click DPAB065BK Single Coaxial Outlet - Antique Brass IP20

Click Deco Plus DPAB065BK single non-isolated coaxial outlet features antique brass finish with 2-way signal transmission capability for satellite installations. Stainless steel construction with IP20 protection for indoor dry locations, 20-year warranty and 60.3mm standard fixing centres. Screw terminals accommodate coaxial cables for professional TV/satellite distribution systems requiring bidirectional signal paths.\n\nRounded profile design with black insert provides professional appearance in domestic and commercial installations. CE marked with UK Design Registration 3015621 for compliance assurance. Minimum 16mm back box depth requirement with -5°C to +40°C operational temperature range ensures reliable performance in standard indoor applications.

Stock Code: DPAB065BK

Online:

In stock
Price 12.82 £
incl. VAT, 20% priced individually

Product Features

Product Code DPAB065BK
Type Single Non-Isolated Coaxial Outlet
Finish Antique Brass with Black Insert
Plate Dimensions 88 x 88 x 8mm
IP Rating IP20 (Indoor Dry Locations Only)
Signal Type 2-Way Transmission Capable
Termination Screw Type
Warranty 20 Years
Operational Temperature -5°C to +40°C
Minimum Back Box Depth 16mm

Applications & Uses

Satellite Installations

Hard wire extensions for satellite systems requiring 2-way signal transmission between receivers and satellite dishes.

Coaxial Distribution

Signal distribution networks for TV/satellite systems in domestic and commercial buildings requiring bidirectional paths.

Installation Guidelines

Back Box Requirements

Minimum 16mm depth back box with standard 60.3mm horizontal fixing centres for secure wall mounting.

Terminal Connections

Screw type termination with brass terminals. Earth cables must be sleeved and connected to earth terminal.

Installation Safety

Isolate mains supply before installation. Reference circuit diagrams and ensure earth cables are properly sleeved.

Standards & Compliance

Design Registration

UK Design Registration 3015621 with CE and UKCA marking for European and UK market compliance.

Safety Standards

IP20 ingress protection with -5°C to +40°C operational temperature range for indoor dry location applications.

Frequently Asked Questions

  • What signal types does the DPAB065BK coaxial outlet support?

    The DPAB065BK supports 2-way signal transmission, enabling bidirectional communication for satellite hard wire extensions and TV/satellite distribution systems.

  • What IP rating does this coaxial outlet have for installation locations?

    IP20 rated for indoor dry locations only. Not suitable for bathrooms, outdoor use, or high-humidity environments requiring IP65+ protection.

  • What back box depth is required for DPAB065BK installation?

    Minimum 16mm back box depth required with standard 60.3mm horizontal fixing centres for secure wall mounting installation.

  • Is the DPAB065BK coaxial outlet isolated or non-isolated?

    Non-isolated design enables 2-way signal transmission capability, essential for satellite systems requiring bidirectional communication between equipment and dish.

  • What cable termination method does this coaxial outlet use?

    Screw termination type with brass terminals for secure coaxial cable connections. Ensure bare earth cables are properly sleeved before connection.
