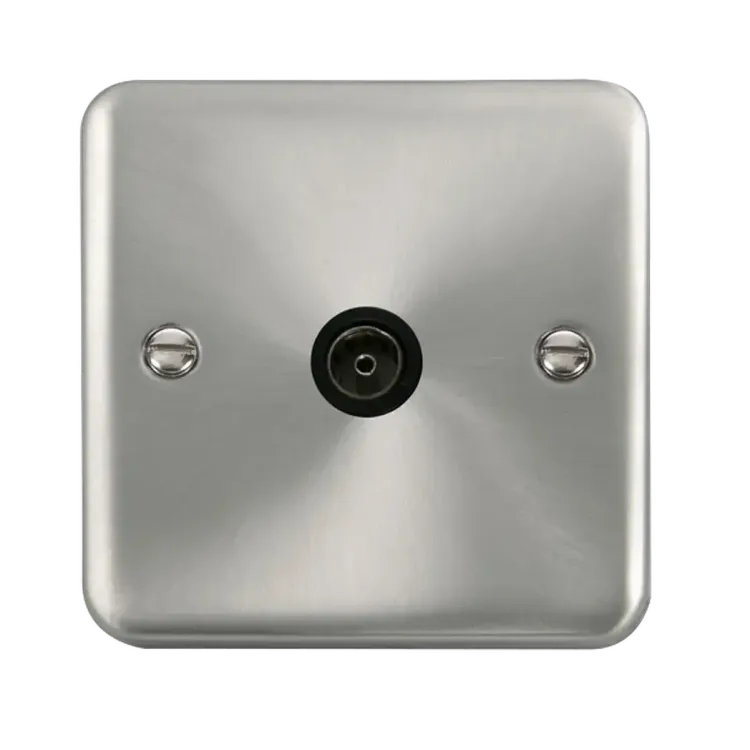

Photo is representative

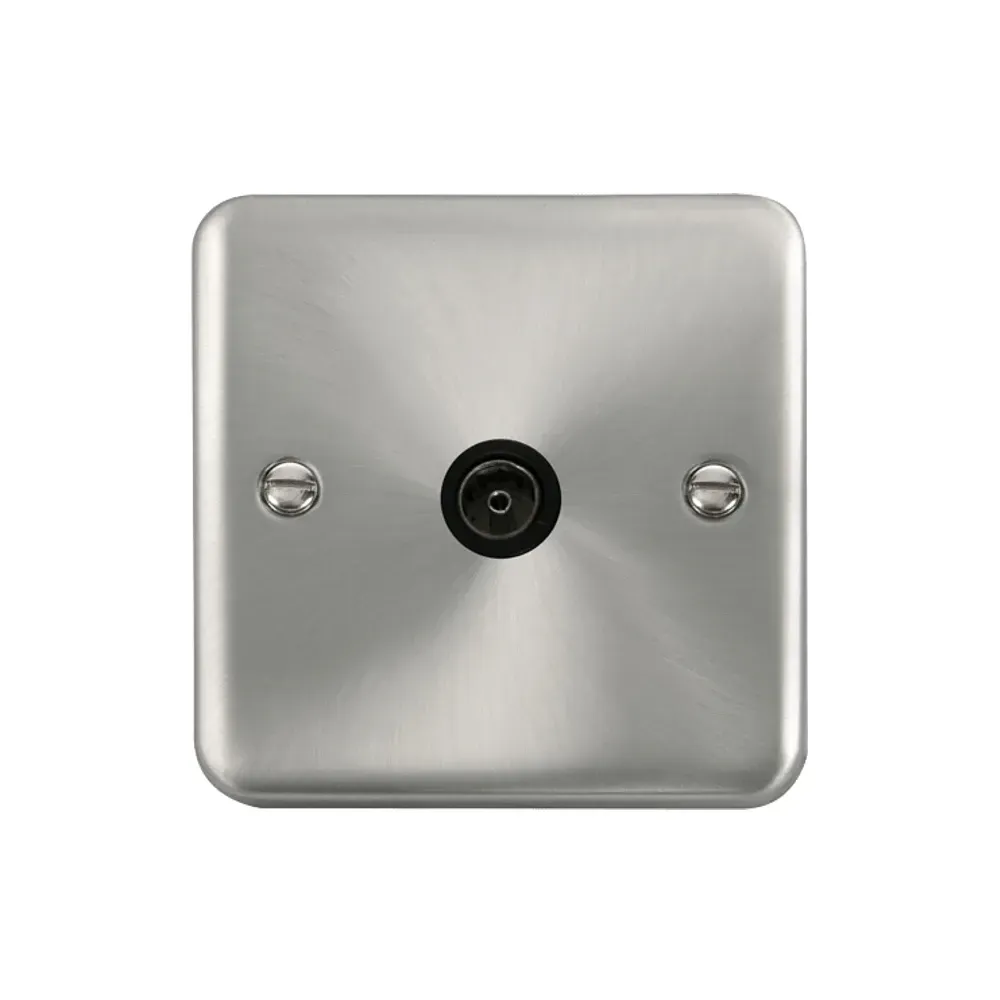

Click Deco Plus Satin Chrome Single Coaxial Outlet DPSC065BK Non-Isolated
Single coaxial outlet with satin chrome finish and black insert for satellite and aerial connections. Features non-isolated 2-way signal transmission with screw terminals in 88mm rounded profile design. Requires minimum 16mm backbox depth for standard installations. IP20 rated construction with stainless steel front plate and brass terminals ensures reliable performance in domestic and commercial applications. CE marked with 20-year manufacturer warranty. Supplied with black gasket for weather sealing applications.
Product Information
Product Features
Professional Installation Requirements
Backbox Specifications
16mm minimum depth required for proper cable termination. Standard 25mm metal backboxes recommended for professional installations with adequate cable management space.
Terminal Configuration
Brass screw terminals provide secure connections for coaxial cable outer conductors. Earth terminal requires appropriate cable sleeving for safety compliance.
Mounting Centres
60.3mm horizontal fixing centres compatible with standard UK backbox configurations. Rounded profile design fits flush with minimal wall projection.
Signal Transmission & Applications
Non-Isolated Design
2-way signal transmission allows both input and output connections for satellite, terrestrial and cable TV systems without signal isolation requirements.
Frequency Response
Suitable for digital satellite, Freeview, and cable TV signals. Non-isolated configuration maintains signal integrity for distribution systems.
Professional Applications
Ideal for domestic installations, commercial premises, and multi-dwelling units requiring reliable coaxial connections with quality brass terminals.
Frequently Asked Questions
-
What backbox depth is required for DPSC065BK installation?
Minimum 16mm backbox depth required. Standard 25mm backboxes provide ample space for cable termination and future maintenance access.
-
Is this coaxial outlet suitable for Sky satellite connections?
Yes, the non-isolated 2-way signal transmission design supports satellite, terrestrial aerial and cable TV connections with screw terminals.
-
Can this outlet be used in bathroom installations?
IP20 rating makes it suitable for dry domestic locations only. Not suitable for bathrooms or outdoor installations requiring higher IP ratings.
-
What cable types are compatible with the screw terminals?
Standard coaxial cables including RG6, CT100, and WF100 are compatible. Screw terminals accept cable outer conductors up to standard coax specifications.
-
Does the outlet include gasket sealing?
Yes, supplied with black gasket. Dimensions with gasket: 91 x 91 x 9mm for enhanced weather protection in appropriate applications.
