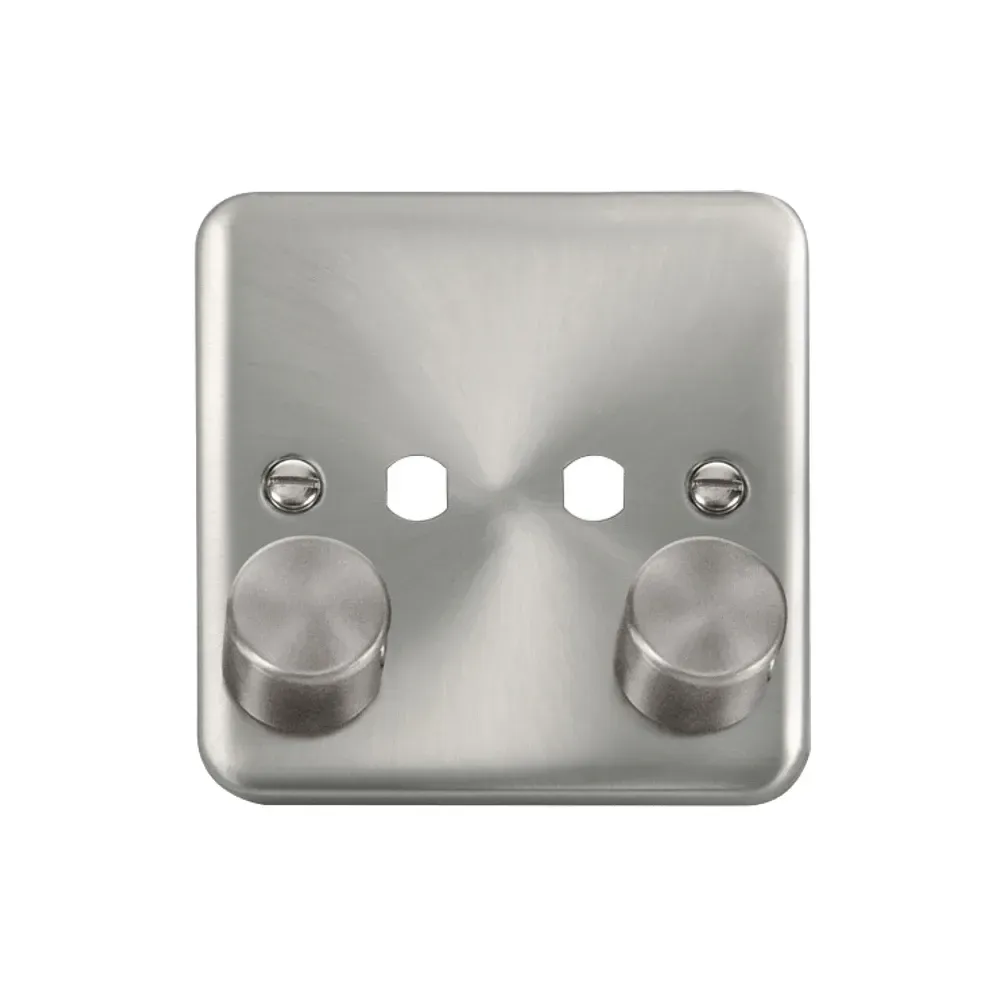

Click DPSC Satin Chrome 800W 1 Gang Unfurnished Dimmer Plate BS5733
Click DPSC152PL 1 gang unfurnished dimmer plate in satin chrome finish, 800W maximum load capacity with 2 apertures for modular dimmer modules. Premium stainless steel construction with brass terminals and screw connections for reliable professional installation. Requires 25mm minimum back box depth and BS5733 compliant design ensures safe lighting circuit control. Compatible with LED dimmer modules, push ON/OFF modules, and 1-10V analogue dimmer modules for flexible lighting control solutions. Supplied with black and white gaskets for seamless wall integration. Professional quality construction with rounded profile design and 20-year manufacturer warranty provides long-term reliability for commercial and residential installations.
Online:
Product Features
| Load Capacity | 800W Maximum |
|---|---|
| Gang Configuration | 1 Gang |
| Apertures | 2 Apertures |
| System Type | Unfurnished Dimmer Plate |
| Terminal Type | Brass Screw Terminals |
| Mounting Depth | 25mm Minimum Back Box |
| Standards Compliance | BS5733 |
| Finish | Satin Chrome |
| Material | Stainless Steel |
| IP Rating | IP20 |
| Plate Dimensions | 88W x 88H x 8D mm |
| Earth Configuration | Mild Steel Earth Strap |
| Temperature Range | -5°C to +40°C |
| Warranty | 20 Years |
Modular Dimmer System
Unfurnished Design
Two apertures accept Click dimmer modules for customizable lighting control, allowing LED, standard, or 1-10V dimming options.
Module Compatibility
Compatible with MD9014 LED dimmer, MD9001 push switch, and MD9010 analogue modules for professional lighting applications.
Professional Flexibility
Modular system enables specification changes without plate replacement, reducing maintenance costs for commercial installations.
Installation Requirements
Back Box Specifications
25mm minimum depth required with 60.3mm fixing centres, suitable for standard lighting circuit installations and cable management.
Terminal Configuration
Brass terminals with steel passivated screws provide secure connections, earth strap supplied for BS5733 compliance requirements.
Circuit Isolation
Mains supply isolation mandatory before installation, refer to included circuit diagram for correct wiring configuration and safety.
Frequently Asked Questions
-
What modules are compatible with DPSC152PL dimmer plate?
Compatible with Click MD9014 LED dimmer module, MD9001 push ON/OFF module, and MD9010 1-10V analogue dimmer module for flexible lighting control.
-
What back box depth is required for installation?
Requires minimum 25mm back box depth with plate fixing centres at 60.3mm horizontal spacing for standard mounting configuration.
-
Can this dimmer plate control LED lighting circuits?
Yes, when fitted with compatible MD9014 dual mode LED dimmer module supporting up to 100W LED loads with smooth dimming performance.
-
What tools are needed for DPSC152PL installation?
Standard flat-blade screwdriver for brass screw terminals, voltage tester for circuit isolation, and wire strippers for cable preparation.
-
Is earthing required for this dimmer plate?
Yes, mild steel earth strap provided - bare earth cables must be covered with appropriate sleeving as per BS5733 requirements.
