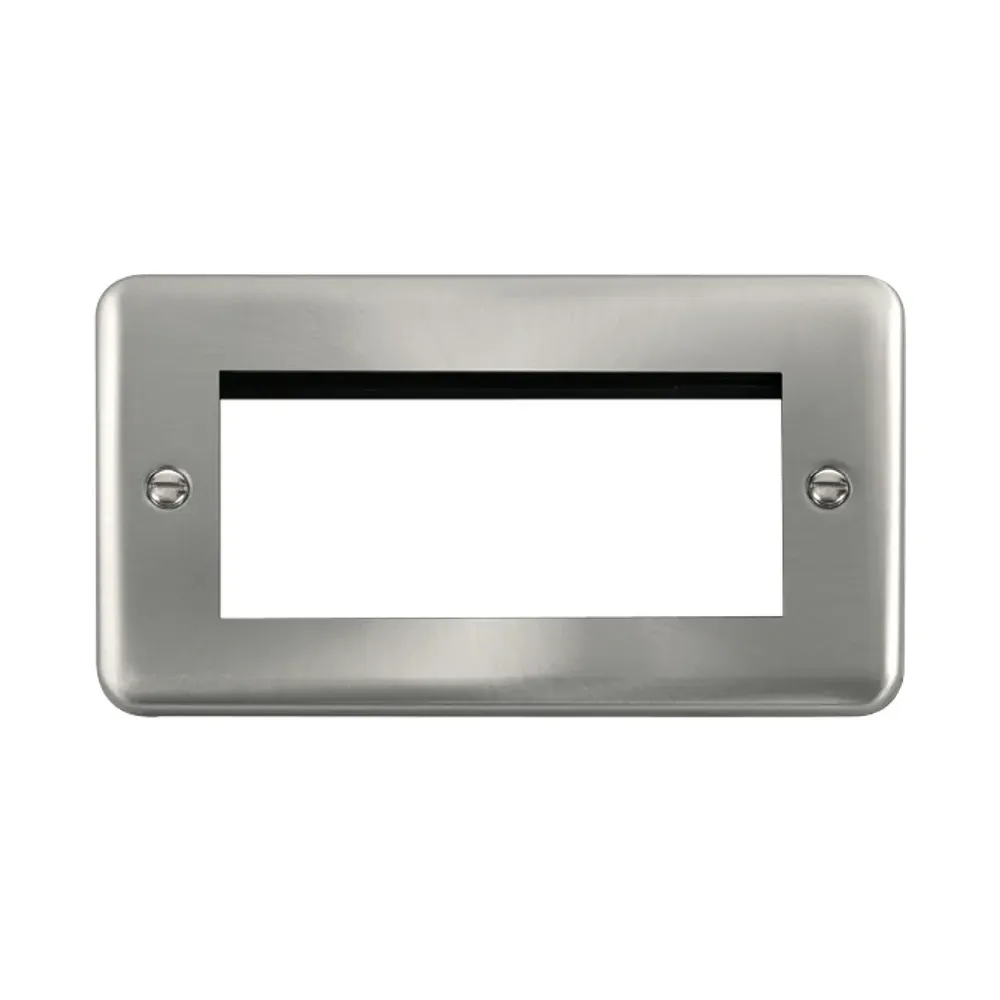

Photo is representative
Click DPSC312 Satin Chrome 2 Gang New Media Plate 4 Aperture BS5733
Professional 2 gang New Media plate with 4 x 100x50mm apertures in satin chrome finish. Stainless steel front plate with nylon insert provides 20-year warranty durability for modular installations. Compatible with Click New Media range modules including rocker switches. Features screw terminations with twin earth facility and IP20 rating. Supplied with black and white gaskets for versatile installation. 146x88mm plate dimensions fit standard 120.6mm fixing centres. Designed for -5 to +40°C operational range with BS5733 compliance. Minimum back box depth depends on fitted modules. Essential for data, AV and communication installations requiring professional-grade modular system compatibility.
Online:
Product Features
| Gang Configuration | 2 Gang |
|---|---|
| Aperture Count | 4 Apertures |
| Aperture Dimensions | 100 x 50mm (New Media Standard) |
| Finish | Satin Chrome |
| Front Plate Material | Stainless Steel |
| Insert Material | Nylon |
| Plate Dimensions | 146 (W) x 88 (H) x 8 (D) mm |
| Fixing Centres | 120.6mm Horizontal |
| Terminal Type | Screw Termination with Earth Terminal |
| Standards Compliance | BS5733 |
| IP Rating | IP20 |
| Operating Temperature | -5 to +40°C |
| Gasket Options | Black & White Gaskets Supplied |
| Warranty Period | 20 Years |
Applications & Uses
Data Communications
Ideal for housing Cat5e/Cat6 data outlets, phone connections, and network modules in office and residential installations.
AV Installations
Perfect for HDMI, coaxial, and audio connections in home entertainment systems and commercial AV setups.
Mixed Installations
Combines data, power, and control modules in single faceplate for clean, professional installation appearance.
Installation Guidelines
Back Box Selection
Choose back box depth based on module requirements. Standard 25mm adequate for basic modules, deeper needed for complex electronics.
Earth Connection
All bare earth conductors must be sleeved before connection to earth terminal. Use earth strap for metal back boxes.
Module Fitting
Install modules before fixing plate. Ensure all connections secure and modules properly seated in 100x50mm apertures.
Standards & Safety
- BS5733 Compliance Manufactured to British Standard BS5733 for media plates ensuring quality, safety, and compatibility with UK installations.
- IP20 Protection Suitable for dry indoor locations only. Provides basic protection against solid objects 12.5mm diameter and larger.
- Temperature Range Operational range -5 to +40°C covers standard UK building environments. Not suitable for extreme temperature applications.
Frequently Asked Questions
-
What modules are compatible with the DPSC312 media plate?
Compatible with all Click New Media range modules including rocker switches, data outlets, and AV connections that fit 100x50mm apertures.
-
What back box depth is required for this media plate?
Minimum back box depth depends on modules fitted. Standard 25mm boxes suitable for basic modules, deeper boxes required for complex modules.
-
Are both gasket colours included with the plate?
Yes, both black and white gaskets are supplied as standard to match different wall finishes and installation requirements.
-
What earth terminal requirements apply for installation?
Bare earth cables must be covered with sleeving and connected to the dedicated earth terminal. Earth strap provided for metal back boxes.
-
Can this plate be used in wet locations?
No, IP20 rating is suitable for dry indoor locations only. Not suitable for bathrooms or outdoor installations without additional protection.
