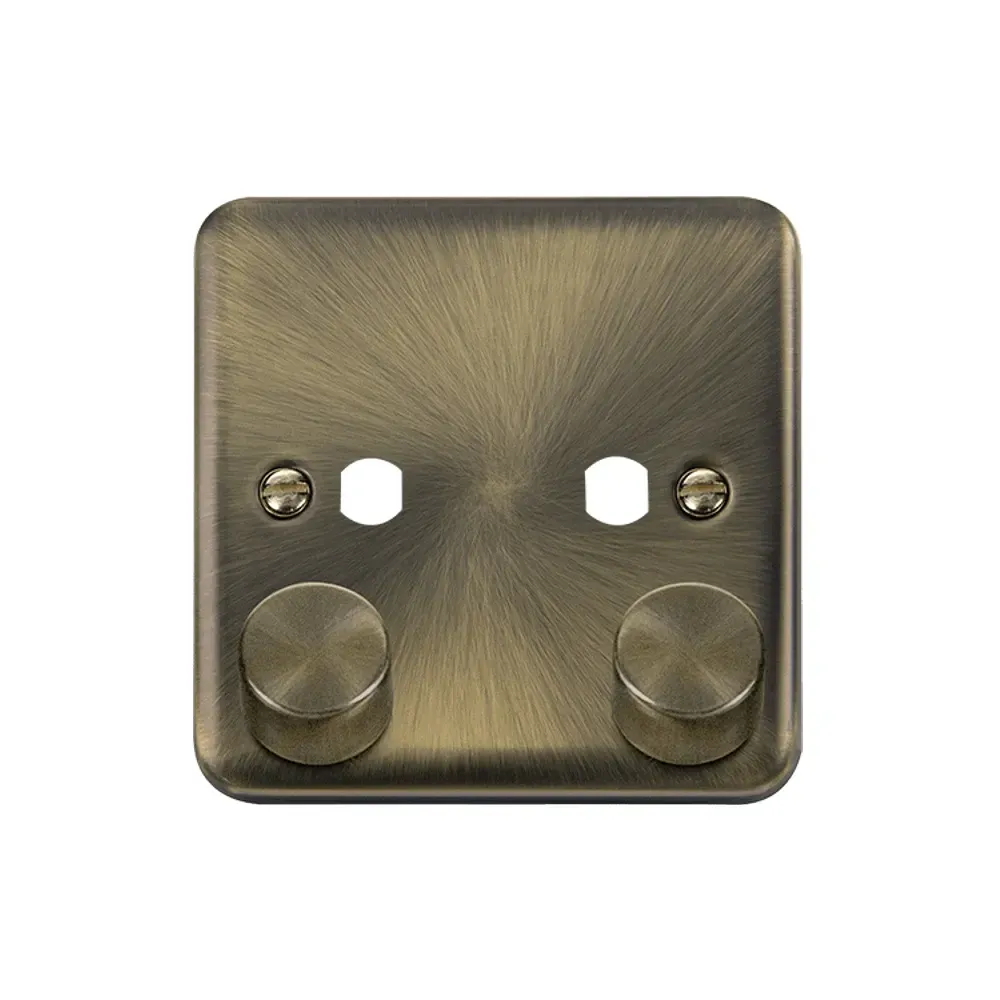

Click DPAB152PL 1 Gang Dimmer Plate - 800W Antique Brass
Professional 1 gang unfurnished dimmer plate with dual aperture control for versatile lighting management. Features premium antique brass finish with stainless steel construction and 800W maximum load capacity. Compatible with LED and conventional dimming modules including MD9014 100W dual mode and MD9010 1-10V analogue systems. Rounded profile design with black gasket sealing provides IP20 protection for indoor dry installations. Built to BS 5733 standards with 20-year warranty coverage. Requires minimum 25mm back box depth with 60.3mm horizontal fixing centres. Suitable for residential and commercial lighting control applications requiring qualified electrical installation.
Online:
Product Features
| Product Code | DPAB152PL |
|---|---|
| Gang Configuration | 1 Gang Unfurnished |
| Maximum Load | 800W |
| Apertures | 2 Apertures |
| Finish | Antique Brass |
| Dimensions | 88 x 88 x 8mm |
| IP Rating | IP20 |
| Back Box Depth | 25mm Minimum |
| Warranty | 20 Years |
| Standards | BS 5733 Compliant |
Installation Guidelines
Back Box Requirements
Minimum 25mm depth required with 60.3mm horizontal fixing centres for secure plate mounting and module accommodation.
Electrical Connections
Brass terminals with steel passivated screws. Earth strap connection required with appropriate sleeving for bare earth cables.
Module Compatibility
Unfurnished plate requires separate dimmer modules. Compatible with Click MD series including LED and analogue control options.
Applications & Uses
Residential Control
Ideal for domestic lighting circuits requiring dual aperture dimming control with premium antique brass finish aesthetic.
Commercial Installations
Professional grade construction suitable for commercial lighting control applications with 800W load capacity management.
Multi Zone Lighting
2 aperture configuration enables independent control of separate lighting zones from single gang installation point.
Standards & Compliance
BS 5733 Standard
Fully compliant with British Standard 5733 for general requirements of electrical accessories in domestic installations.
CE Marking
European conformity marking confirms compliance with applicable EU directives for electrical safety and performance standards.
Design Registration
UK Design Registration 3015621 protects the distinctive rounded profile design and antique brass finish aesthetic.
Frequently Asked Questions
-
What dimmer modules are compatible with DPAB152PL?
Compatible with MD9014 100W LED, MD9001 6A push module, and MD9010 1-10V analogue dimmer modules. Contact us for specific compatibility queries.
-
What is the maximum load capacity for this dimmer plate?
Maximum load capacity is 800W. Suitable for LED and conventional lighting control with appropriate dimmer modules installed.
-
What back box depth is required for installation?
Minimum back box depth of 25mm required. Plate fixing centres are 60.3mm horizontal for standard electrical installation.
-
Is DPAB152PL suitable for outdoor installations?
IP20 rating means indoor dry locations only. Not suitable for wet areas, bathrooms, or outdoor installations requiring higher IP protection.
-
What warranty coverage is provided with this dimmer plate?
20-year manufacturer warranty included. BS 5733 compliant construction ensures long-term reliability for professional electrical installations.
